Clamping Kit, 8 mm, Professional Grade 8-Piece

Low profile clamping kit, made in America of US steel. Designed to be additional clamps for our tooling plate P/N 4084. Can be used as clamps for mills with 1/4", 5/16" and 8 mm T-slots using your 1/4", 6mm or 5mm studs and T-slot nuts.

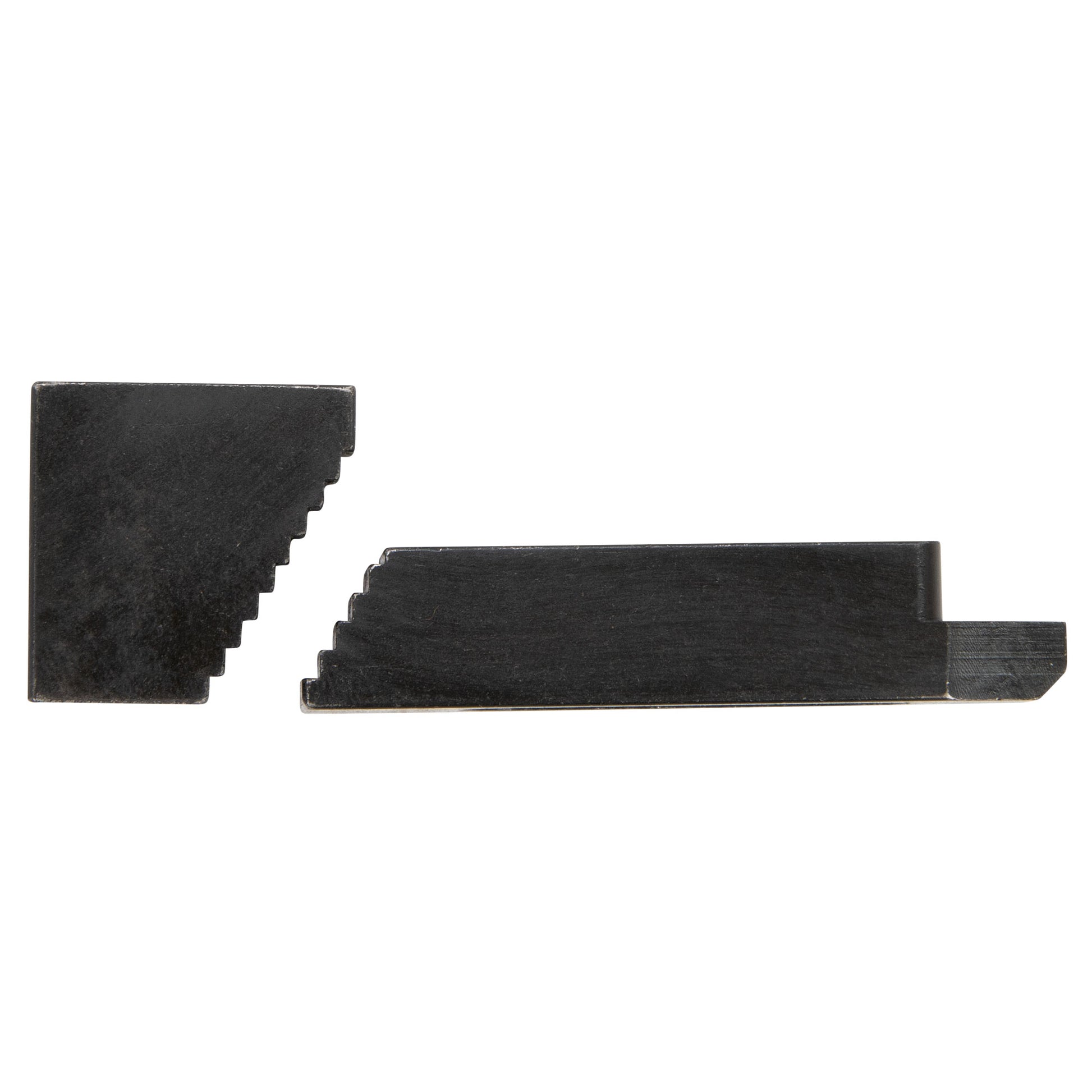

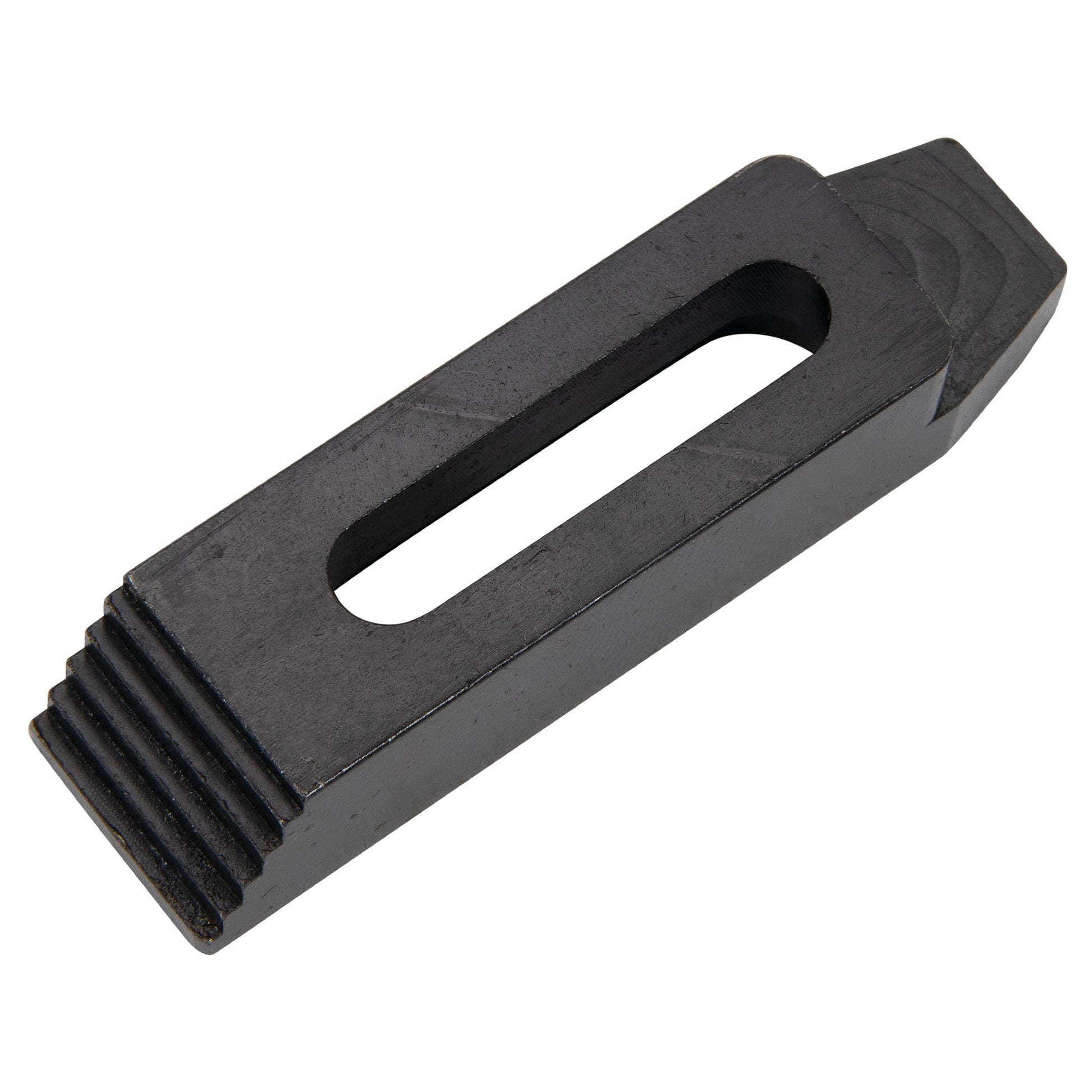

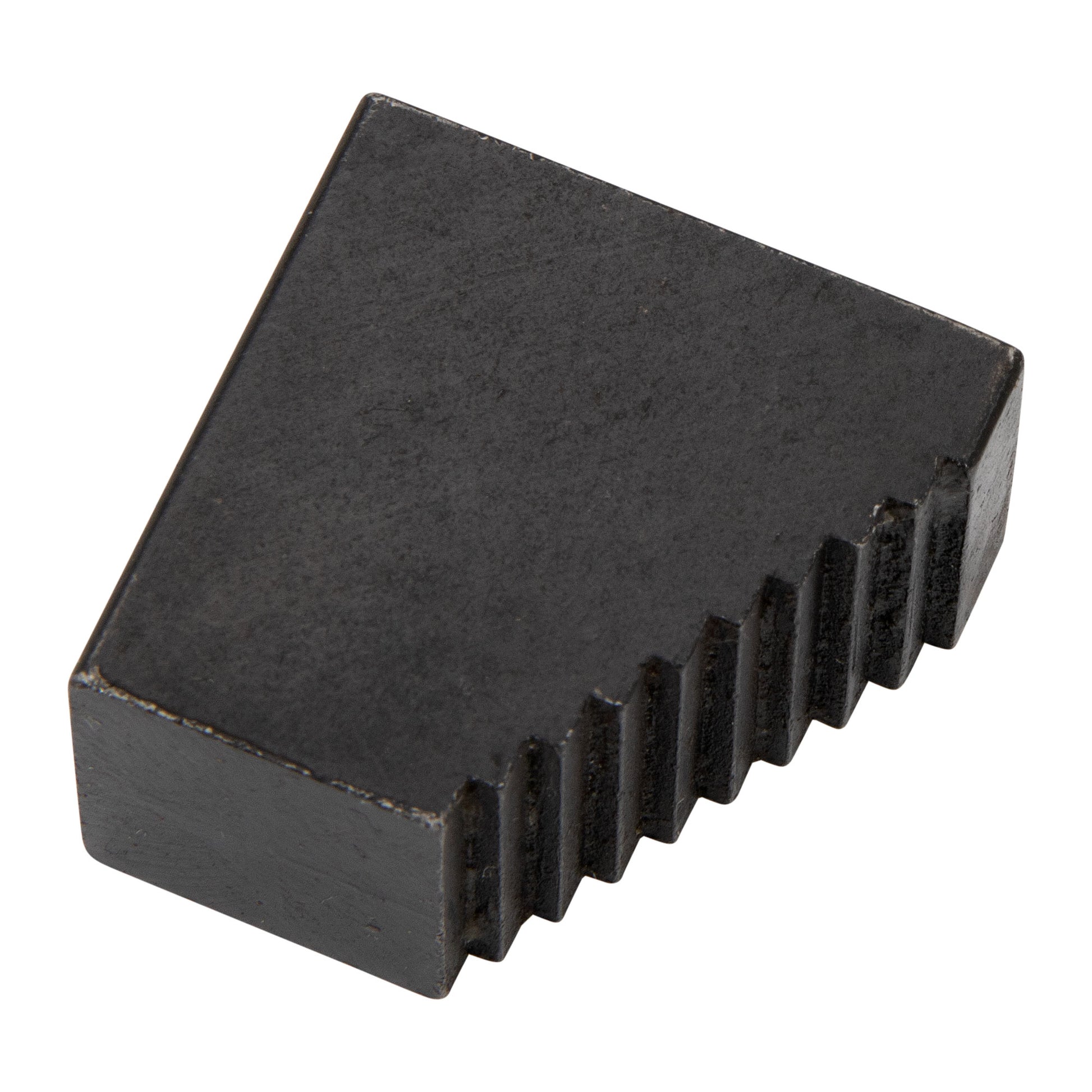

The kit includes four CNC machines clamp bars that are 2-3/8" long. There are four steel step blocks that are 1" tall.

Works with 5 mm, 6 mm and 1/4" studs or bolts.

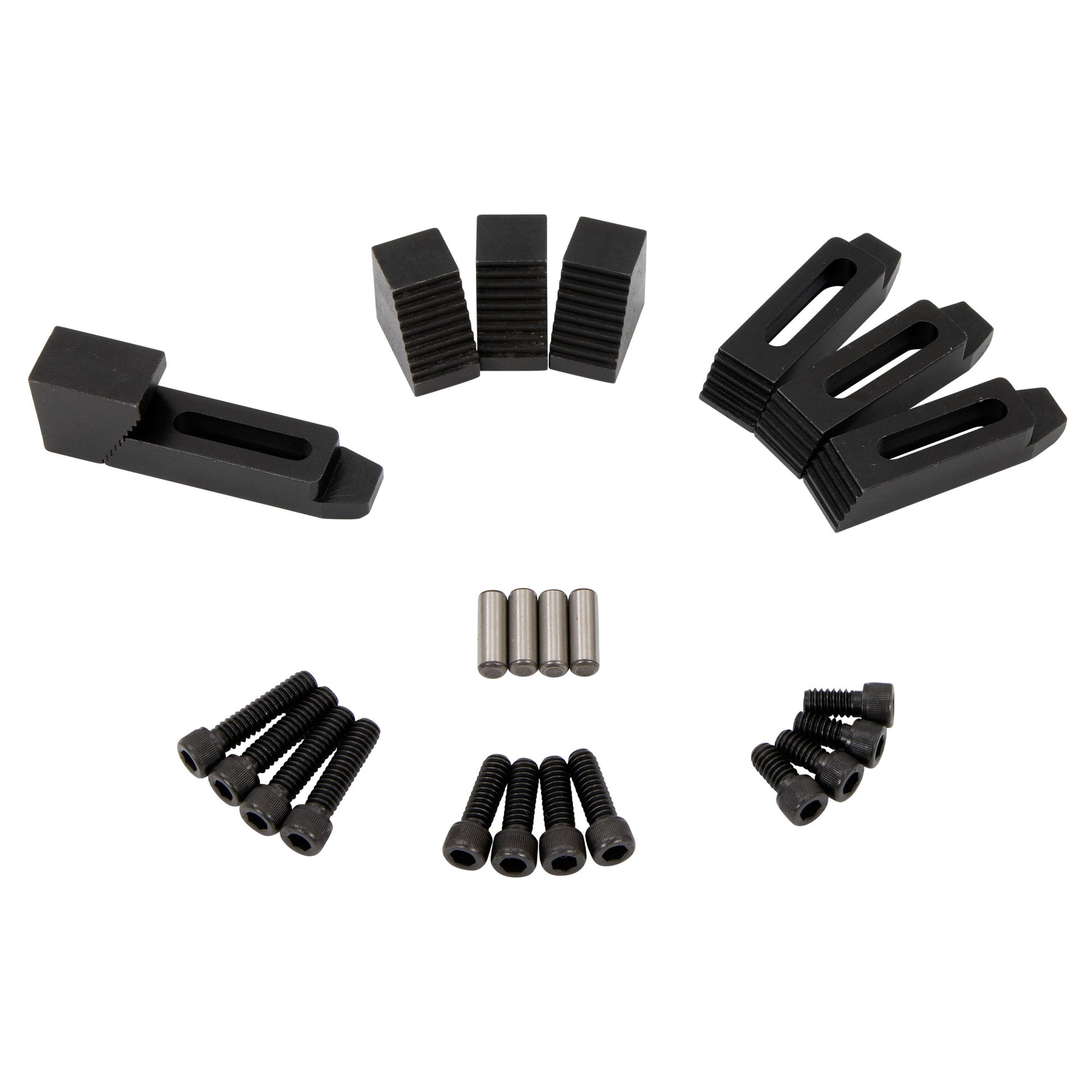

Contents:

• 4 - Clamp bars 2-3/8" long

• 4 - Step blocks 1" tall

• 4 - 1/4" x 3/4" locating pins

• 4 - 1/4"-20 x 1/2" socket head cap screws

• 4 - 1/4"-20 x 3/4" socket head cap screws

• 4 - 1/4"-20 x 1" socket head cap screws


Following are the dimensions of the T-slot nuts that we sell separately or as part of a set.

Measure the width at the top of the T-slot on your mill table as shown in the photo below.

This is the dimension given for T-slot nuts and clamping kits. For example, if you measure 0.468 at the top of the T-slot, you should get a 7/16” (0.438”) T-slot nut or clamping kit.

•

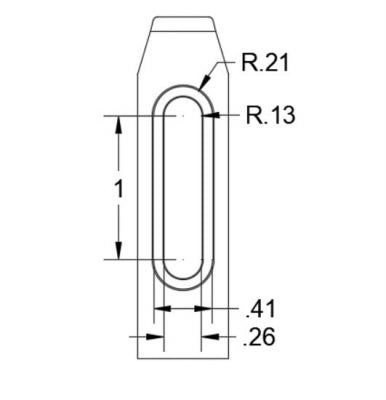

  6258 Drawing
