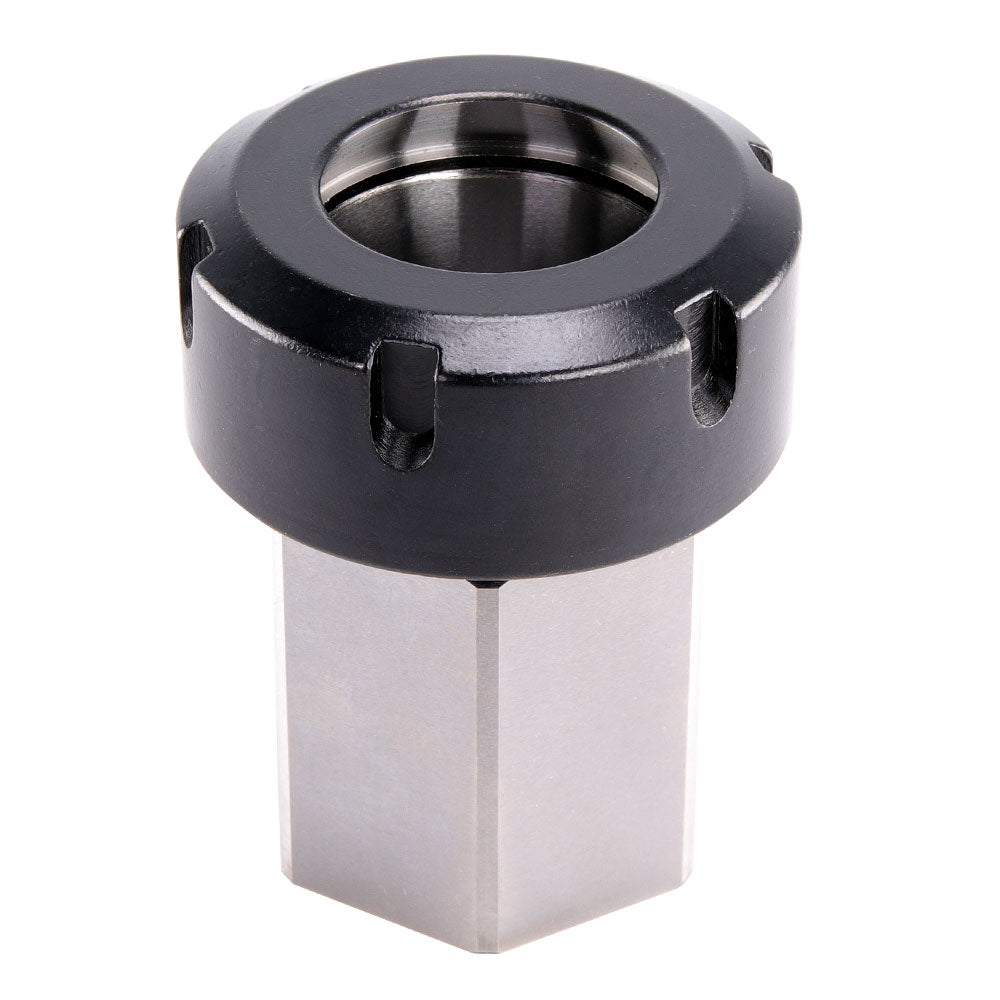

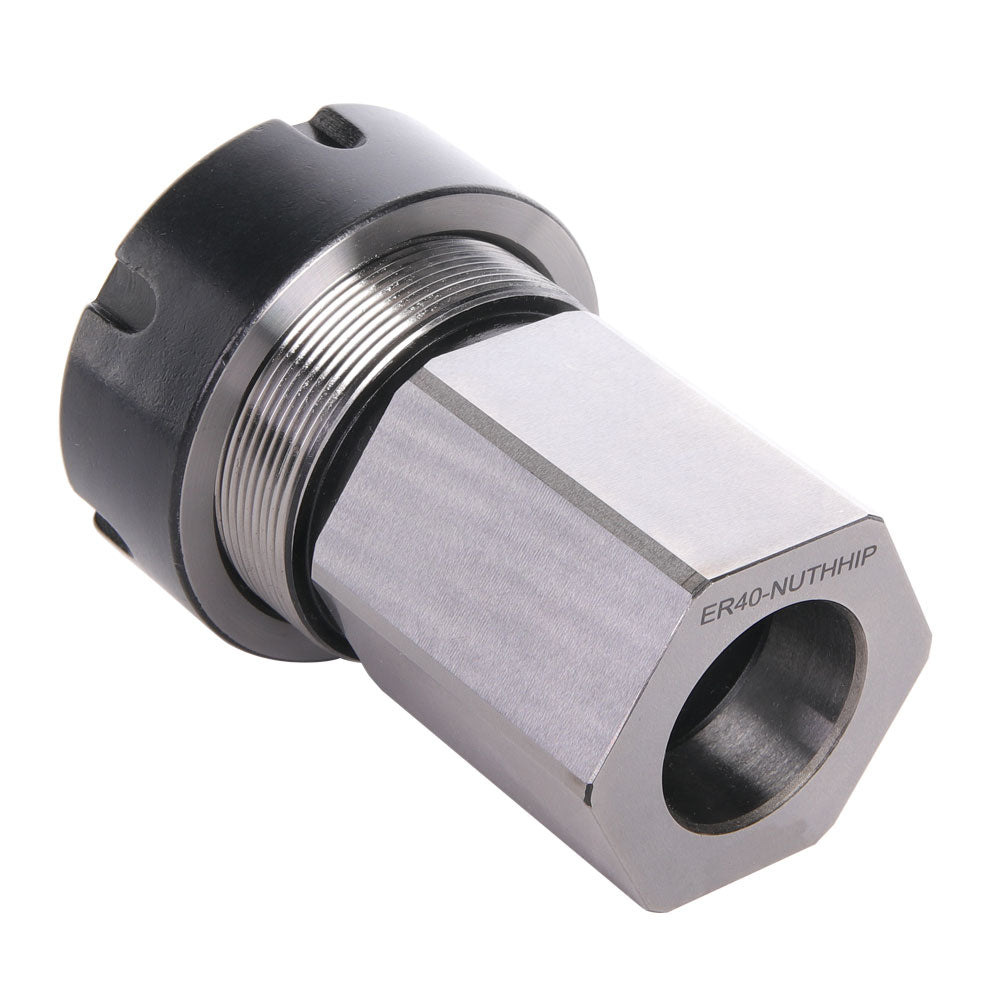

Collet Block, ER-40 Hexagonal

Collet Block, ER-40 Hexagonal

5913

$39.95 USD
$39.95 USD
Sale Sold out
Shipping calculated at checkout.

Low stock

Key Features

  • Uses standard ER-40 collets
  • Through hole permits long parts to be machined
  • Hardened Tool Steel, Ground to .0005" on all 6 Sides
  • Accurately ground back face so the blocks may be used standing upright
  • Includes ER-40 collet nut

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

This collet block provides easy indexing for 3 and 6 divisions.

The collet block is 1.75" across the flats and the body is 3.2" long.

Chris's Tips

With all ER collet chucks, the collet must be snapped into the nut before placing it into the chuck. There is an eccentric ring inside the nut that engages the groove in the collet. That is what makes them self-ejecting. Tilt the collet again to remove it from the nut.
