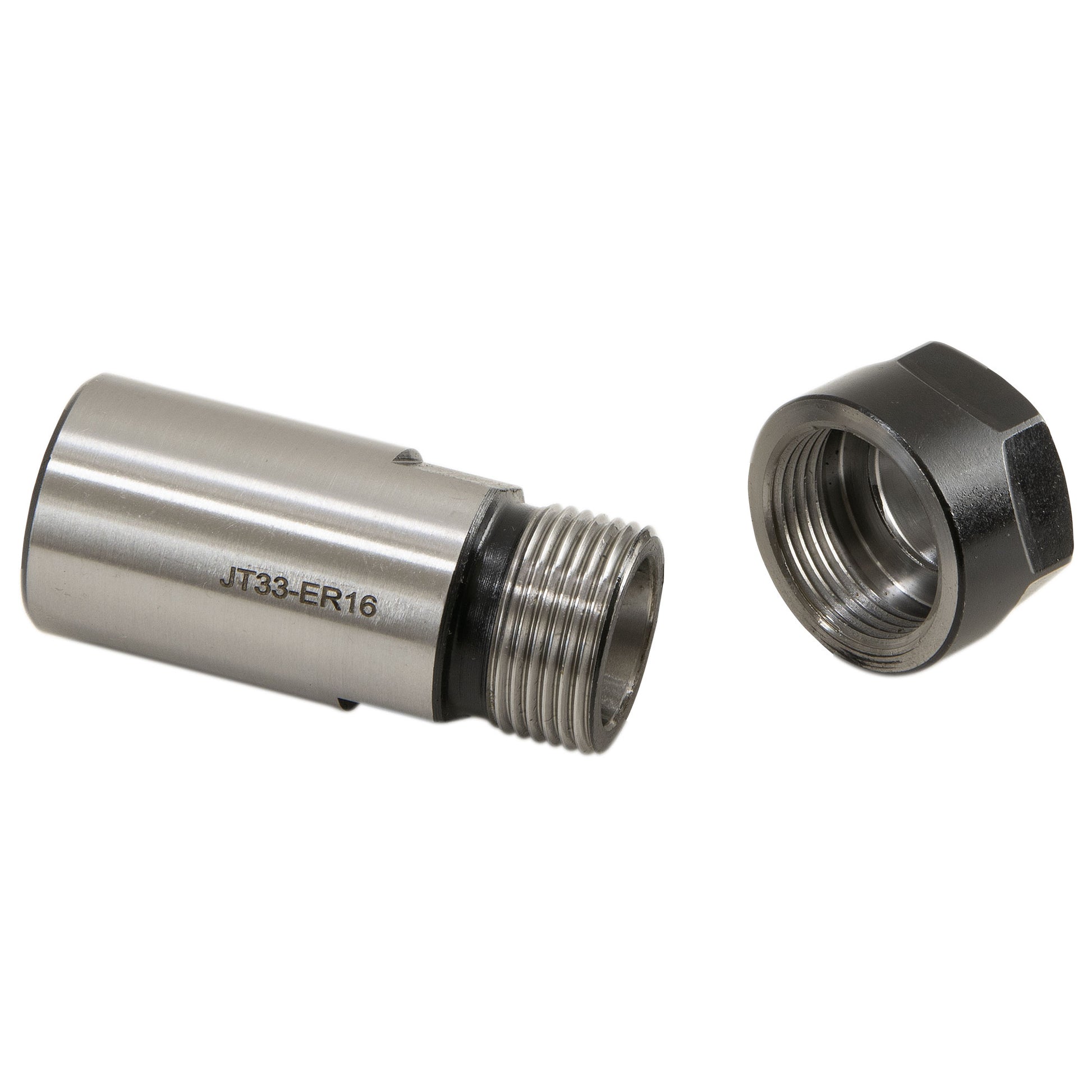

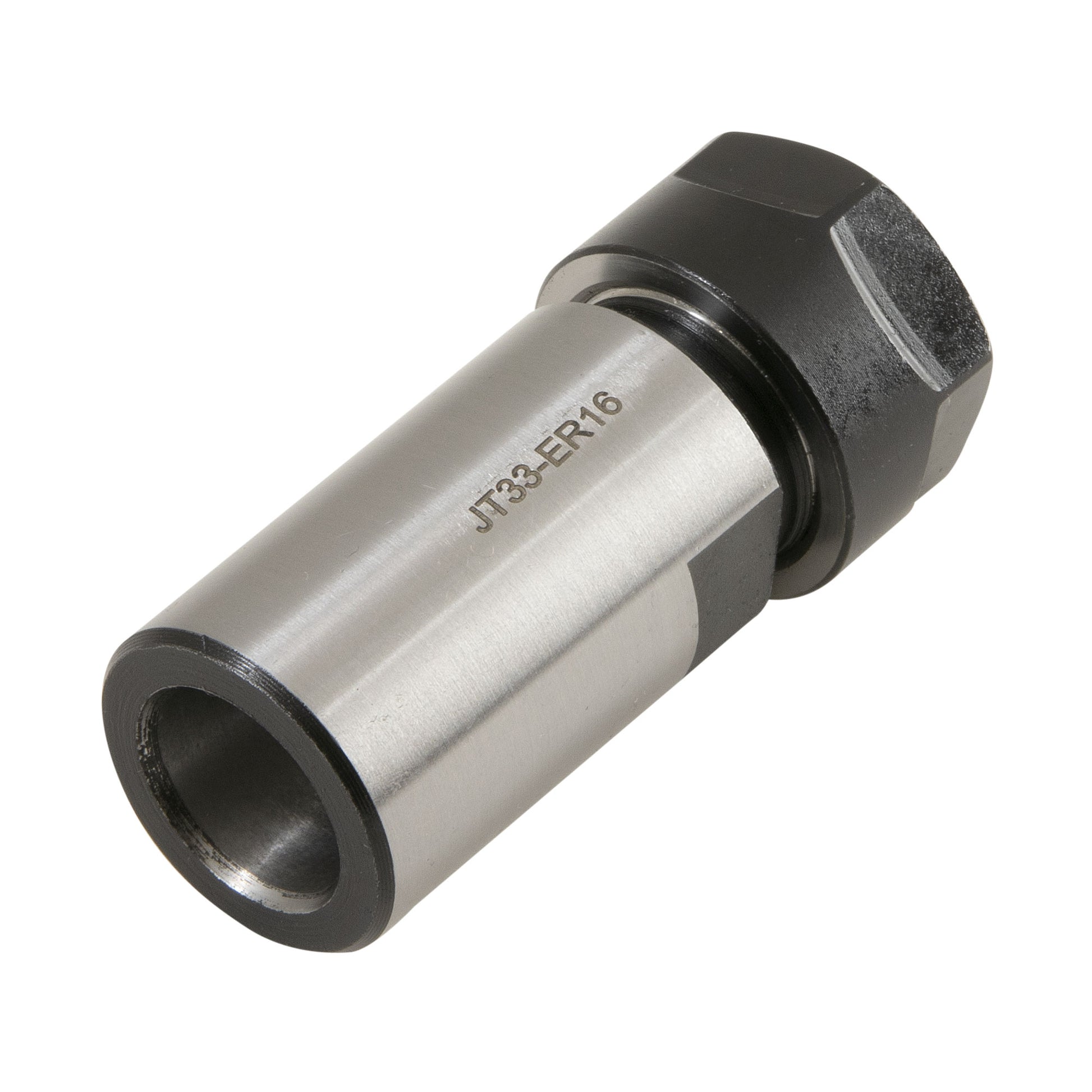

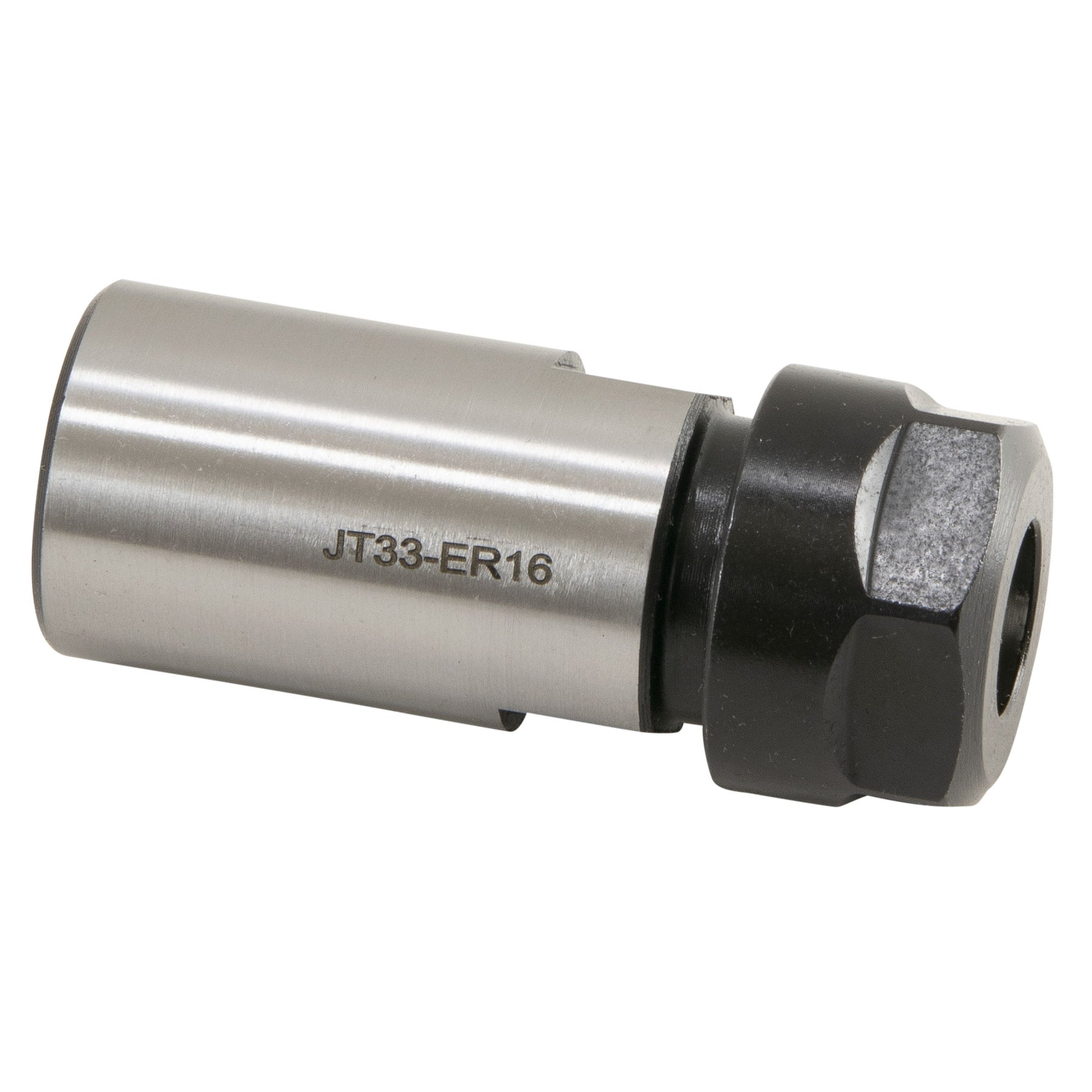

Collet Chuck, ER16, JT33

Collet Chuck, ER16, JT33

$24.95
$24.95
Sale Sold out
Shipping calculated at checkout.

Low stock

6122 (B05 - 06)

Key Features

  • ER-16 to JT33 collet chuck
  • Compatible with standard Jacobs taper spindles
  • Maximum RPM is 8,000
  • T.I.R. is <= 0.0002"
  • Precision ground & hardened for accuracy and precision

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

JT3 to ER-16 collet chuck, milling chuck holder.
This collet chuck is hardened and precision ground and has a T.I.R. is <= 0.0002" (0.005 mm). The chuck will hold all ER-16 collets.

ER-16 collets have a range of 1/32" to 3/8" (0.5 to 10.0 mm)

*Collet must be assembled into a collet chuck nut before inserting into the collet chuck.

Chris' Tips

With all ER collet chucks, the collet must be snapped into the nut before placing it into the chuck. There is an eccentric ring inside the nut that engages the groove in the collet. That is what makes them self-ejecting. Tilt the collet again to remove it from the nut.
