• Collet Nut, ER-16
1 1

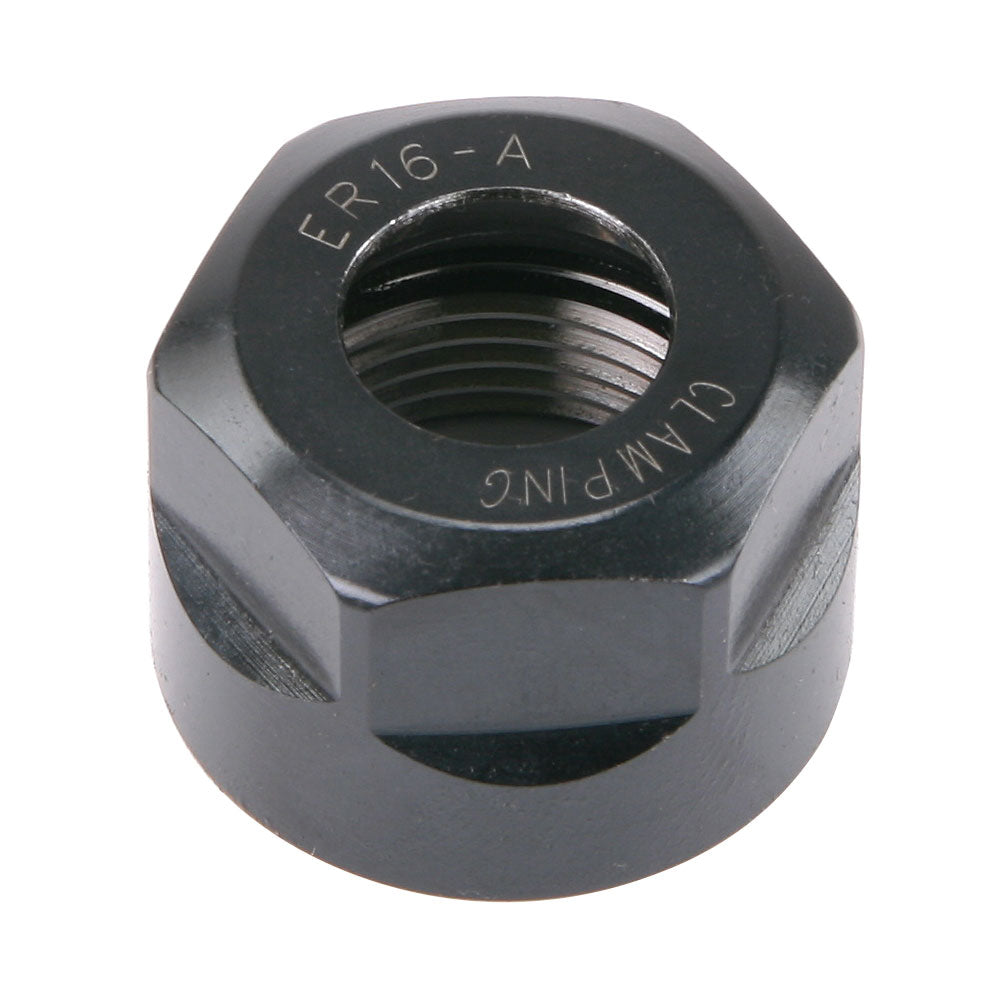

Collet Nut, ER-16

Collet Nut, ER-16

$12.95
$12.95
Sale Sold out
Shipping calculated at checkout.

In stock

5844 (D07 - 22)

Key Features

  • Holds ER16 collets
  • Internal thread M22*1.5
  • Outside diameter 1.1" (28 mm)
  • Tightening diameter 0.98" (25 mm)
  • Black oxide finish

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

Collet nut for ER-16 collets and micro mills with an ER-16 Spindle like the HiTorque Micro Mill. Holds ER-16 collets and has and internal thread of M22*1.5. The outside diameter is 1.1" (28 mm) with a tightening diameter of 0.98" (25 mm) across the flats. The collet nut has a black oxide finish.
*Collet must be assembled into a collet chuck nut before inserting into the collet chuck.

Chris' Tips

With all ER collet chucks, the collet must be snapped into the nut before placing it into the chuck. There is an eccentric ring inside the nut that engages the groove in the collet. That is what makes them self-ejecting. Tilt the collet again to remove it from the nut.
