Collet Set, ER-32, Set of 12 Metric

Collet Set, ER-32, Set of 12 Metric

4333

$99.95 USD
$99.95 USD
Sale Sold out
Shipping calculated at checkout.

Low stock

Key Features

  • Twelve ER-32 metric collets
  • Made of high grade tool steel
  • Hardened and precision ground
  • Major diameter 1.30", Length 1.578"
  • Includes sizes 3, 4, 5, 6, 8, 10, 12, 14, 15, 16, 18 and 20mm

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

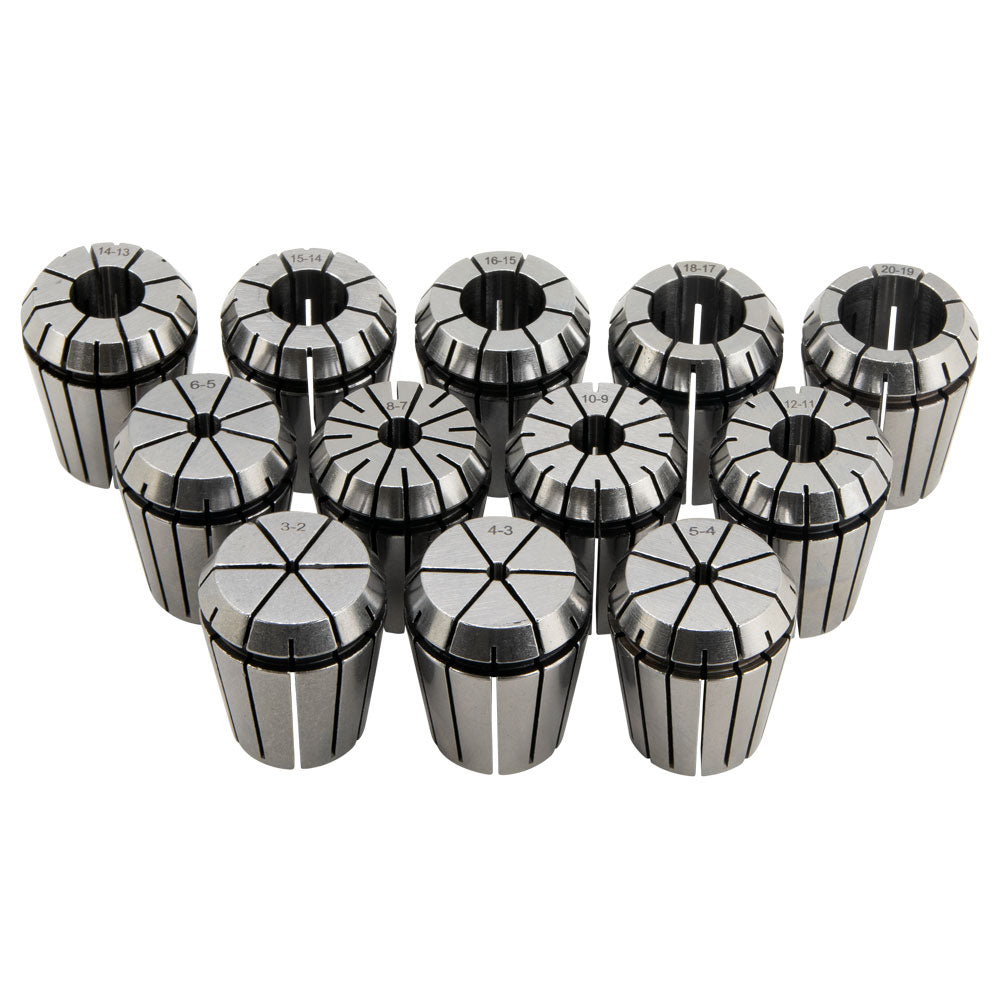

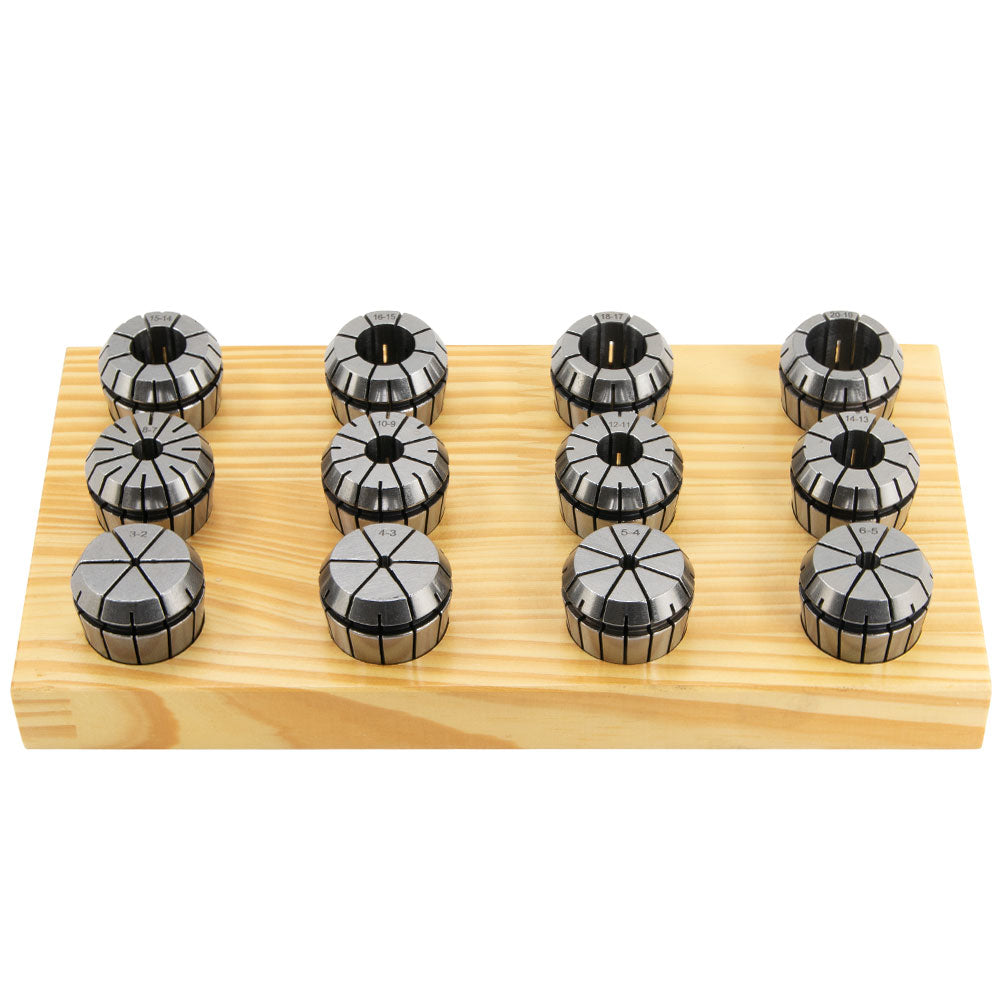

Set of twelve ER-32 metric collets. Sizes include: 3mm, 4mm, 5mm, 6mm, 8mm, 10mm, 12mm, 14mm, 15mm, 16mm, 18mm, and 20mm.

ER-32 collets have a major diameter of 1.30" (33 mm) and a length of 1.57" (40 mm). The collets in this set have a clamping range of 3.0 mm - 20 mm (0.12" - 0.787").

ER collets are made from high grade tool steel, hardened and ground to close tolerance. Kerf cuts allow the collet to expand and contract as needed within the specific clamping range to securely hold the tool or workpiece.

*Collet must be assembled into a collet chuck nut before inserting into the collet chuck.

Chris's Tips

With all ER collet chucks, the collet must be snapped into the nut before placing it into the chuck. There is an eccentric ring inside the nut that engages the groove in the collet. That is what makes them self-ejecting. Tilt the collet again to remove it from the nut.

ER Collet Nuts

This shows the sizes of all the ER collets we carry.
