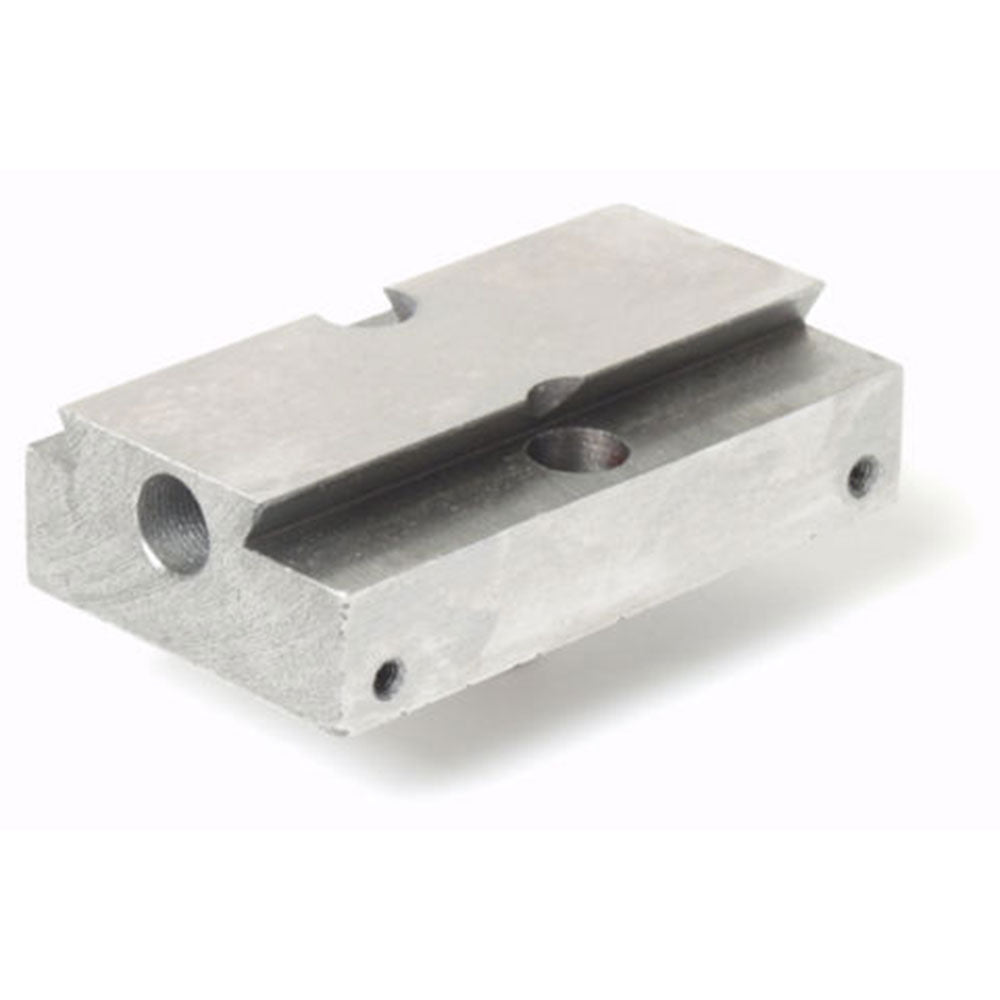

Compound Rest Bottom, Mini Lathe

Compound Rest Bottom, Mini Lathe

$24.95
$24.95
Sale Sold out
Shipping calculated at checkout.

In stock

1215 (B02 - 05)

Key Features

  • Pre-drilled compound rest bottom, mini lathe
  • For lathes with a 1 mm thread pitch, 0.0394" per revolution
  • Use with dial having 40 divisions
  • Fits numerous SIEG C2 and C3 and HiTorque mini lathes
*Will this fit my machine? Check our Replacement Parts

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

This is the bottom half of the compound rest on the mini lathe.
The thread pitch is 1 mm so the compound advances 0.040" (actually 0.0394") per revolution. Use with a dial that has 40 divisions.
See compatibility tab for reference to machines or other related products that use this product.

Chris' Tips

J. W. Early suggests that you machine 0.25" off the bottom of this part. He also suggests that you move the toolpost pivot point. This allows you to use several different adjustable tool posts more effectively. Click here to see a sketch of it.

For a compound with the pivot point already moved, see our modified compound rest bottom.
