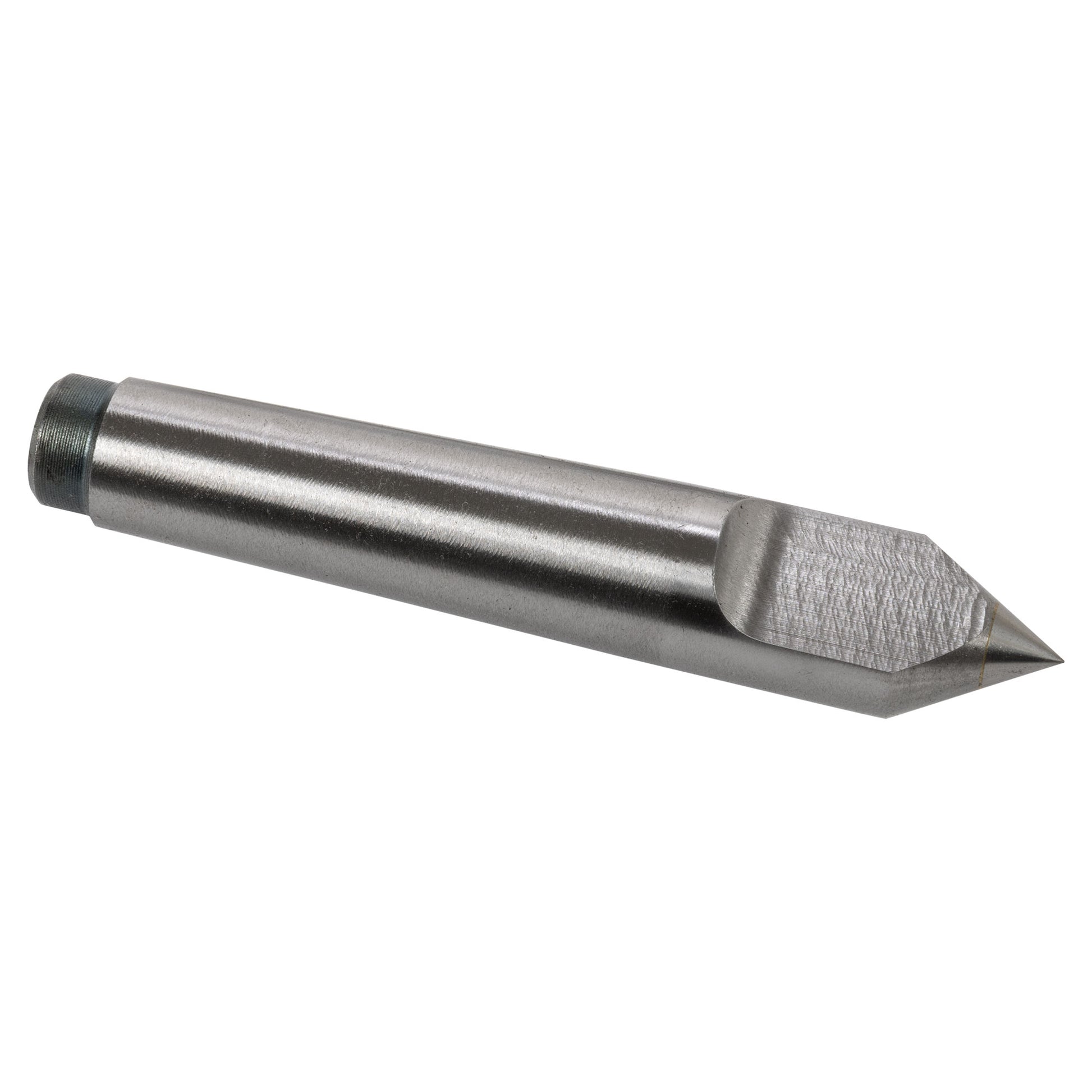

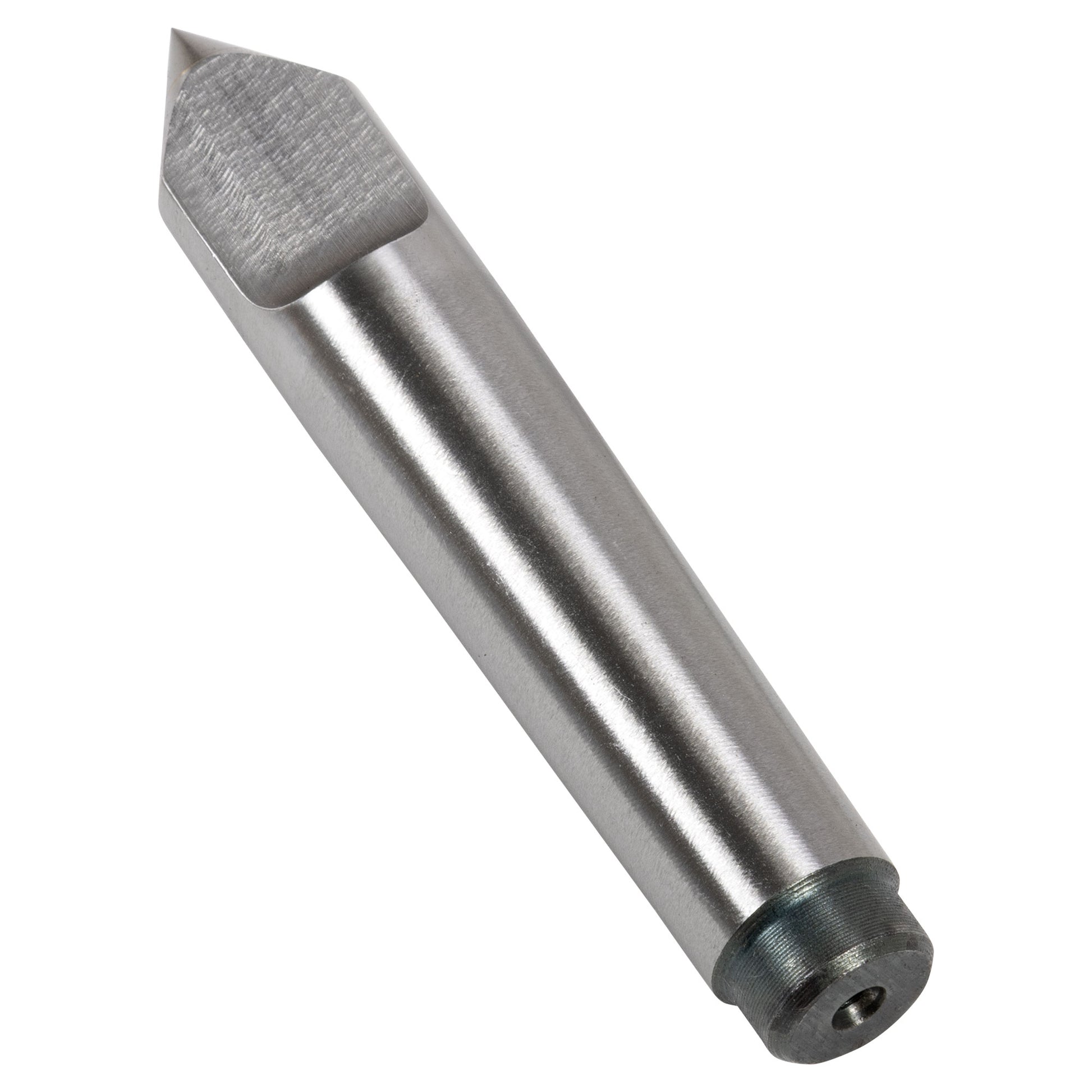

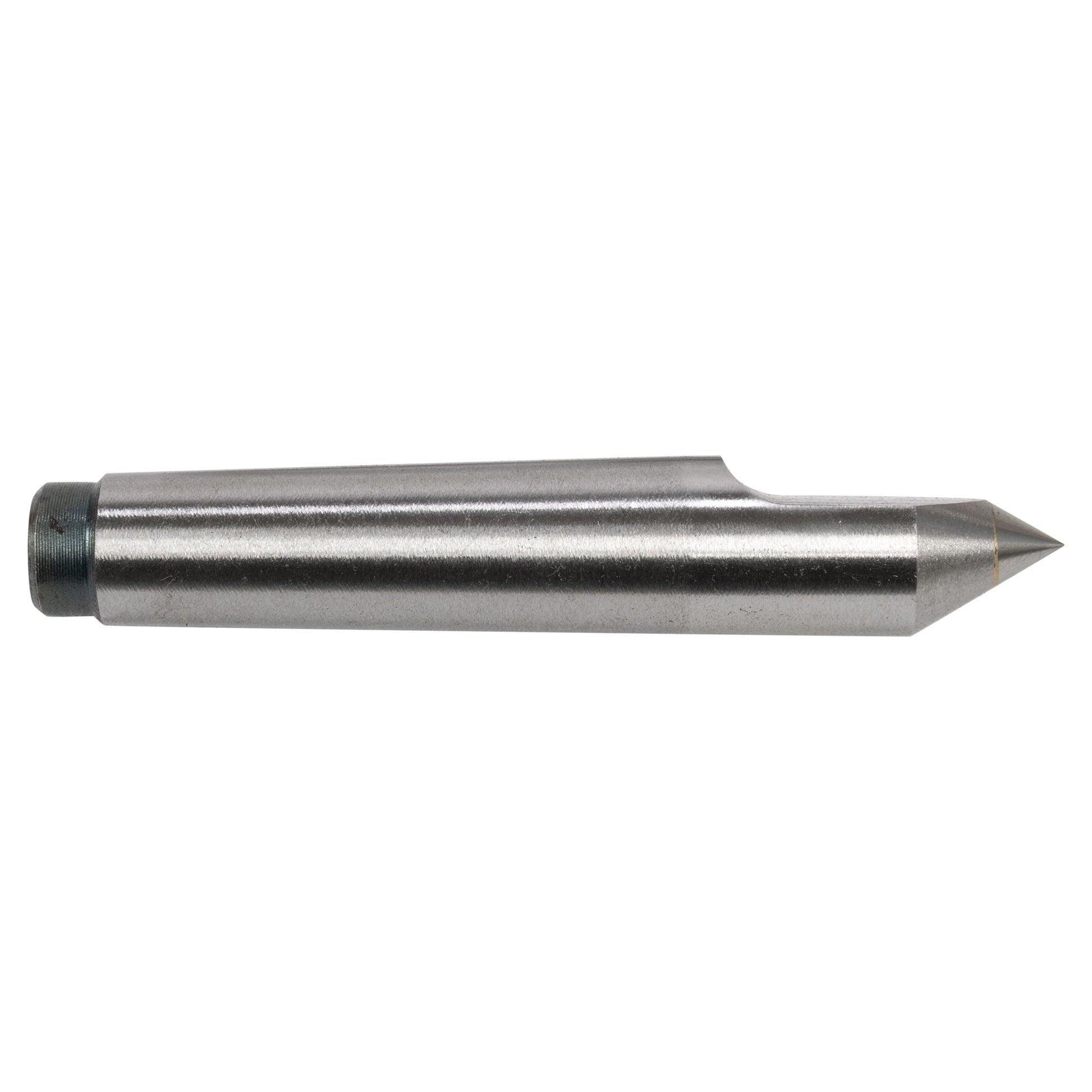

Dead Center, 2MT, Carbide Tip, Half-Notched

Dead Center, 2MT, Carbide Tip, Half-Notched

5186

$16.95 USD
$16.95 USD
Sale Sold out
Shipping calculated at checkout.

Low stock

Key Features

  • Made of tool steel, hardened and ground

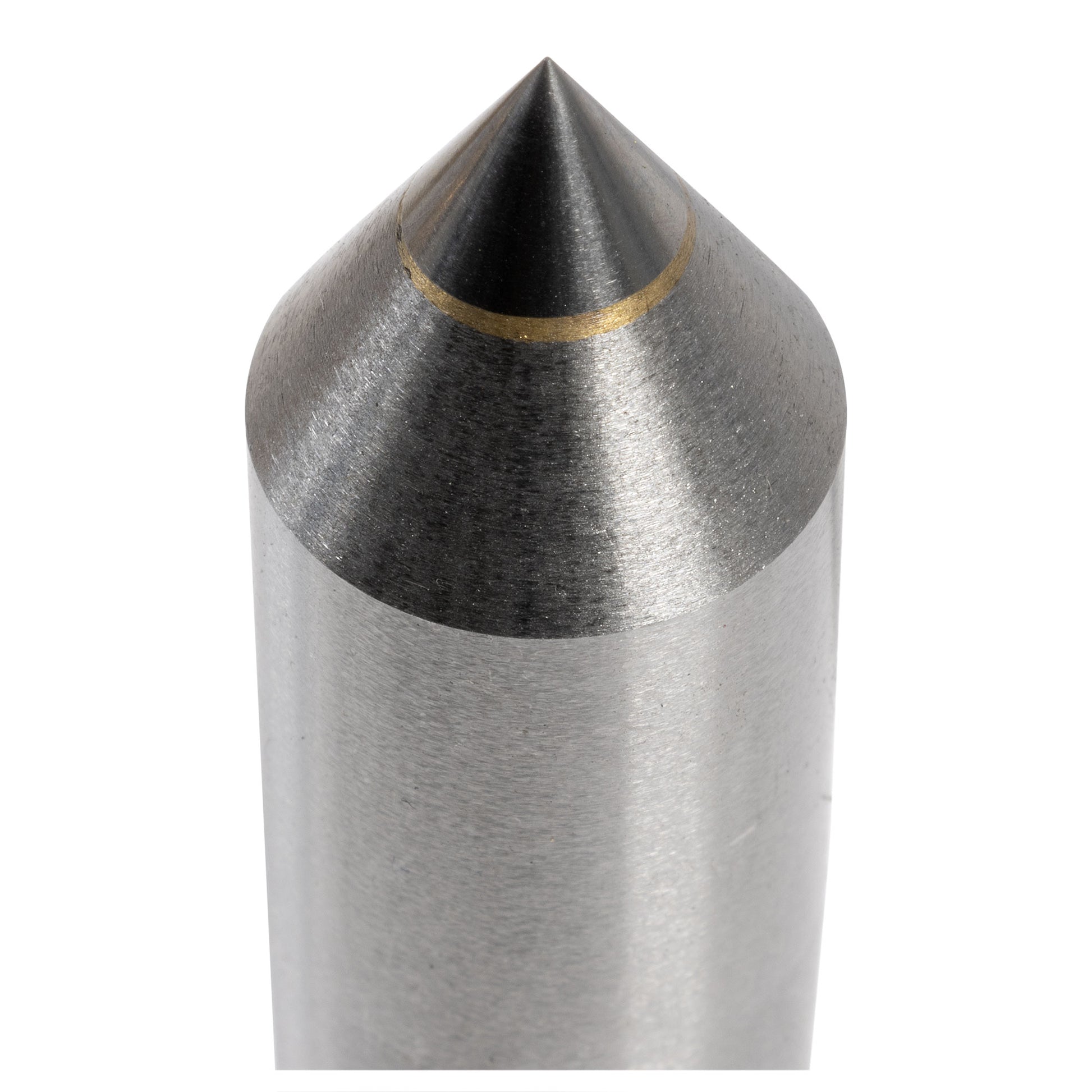

  • Carbide tipped, 60 degree point
  • +/- 0.0002" TIR
  • 0.70" (17.78 mm) diameter
  • 3.94" (100 mm) overall length, 0.43" (10.92 mm) height

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

This center is made from hardened steel and ground for accuracy. The point is a 60 degree included angle.

The body diameter is 0.475" and the largest diameter of the tip is 0.315". The overall length is 3.15". TIR is +/- 0.0002".

Chris's Tips

Use this to turn between centers, using a live center in the tail stock, and a lathe dog to drive the part.
