Dial Indicator, 0.25" x 0.001", Small Face
Dial Indicator, 0.25" x 0.001", Small Face
SKU:3716
Low stock
Couldn't load pickup availability
Key Features
Key Features
- 0.25" dial indicator with 0.001" resolution
- AGD Group I for tight locations
- 1.5" Diameter face, 0.375" shank, #4-48 tip thread
- Rack & contact point made of hardened stainless steel
- Jeweled movement
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

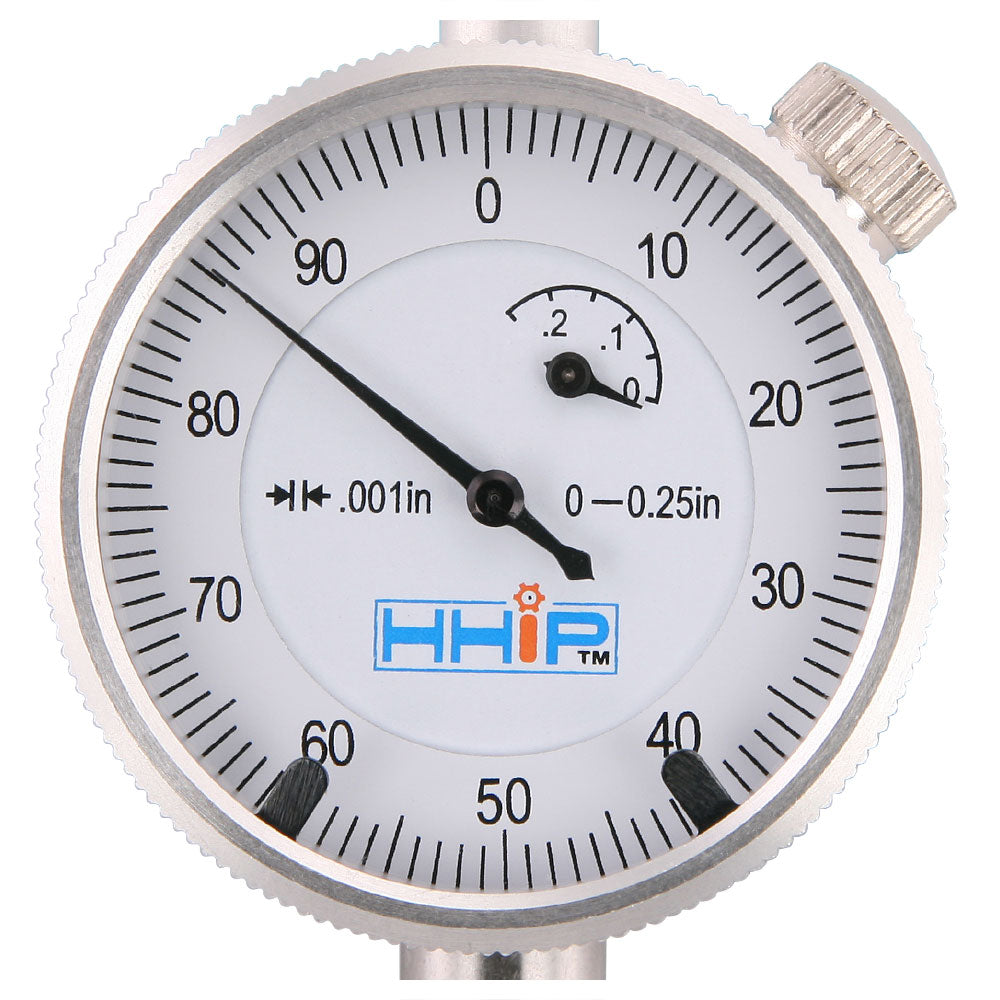

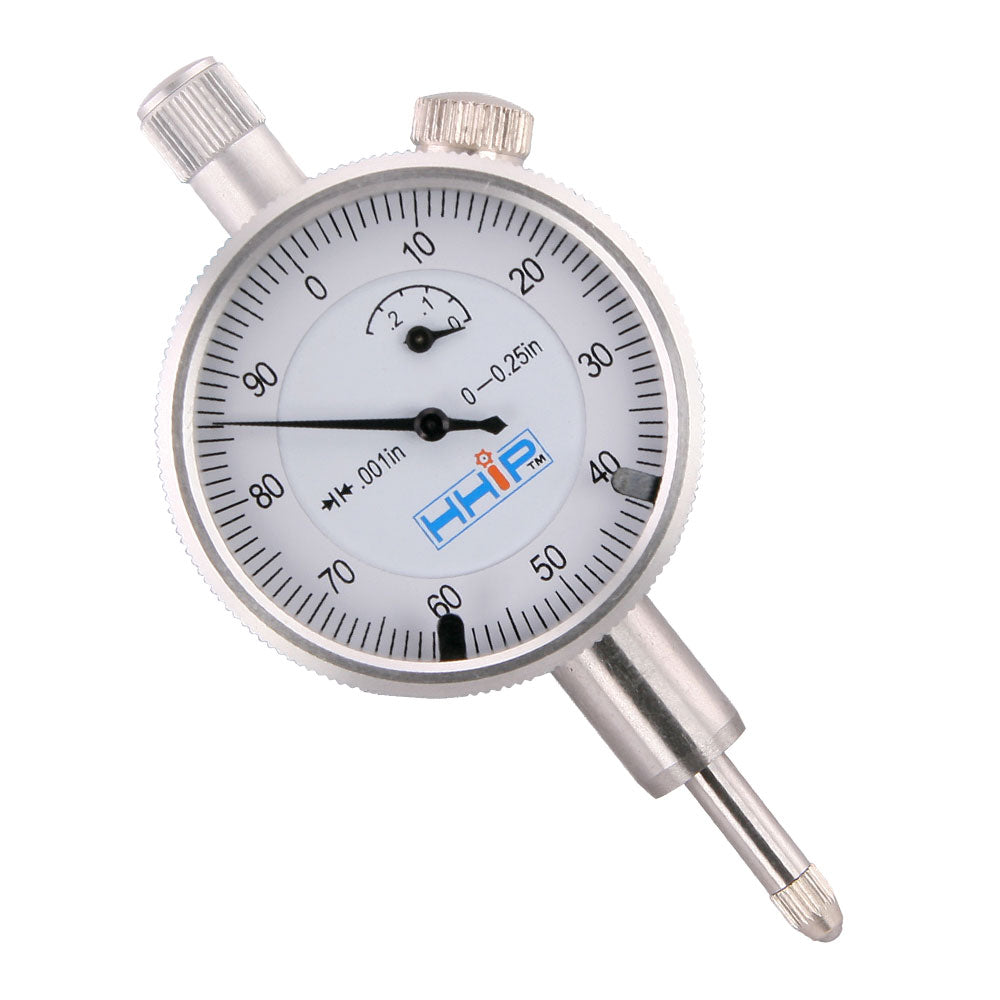

This 1/4" stroke dial small face dial indicator features large, easy to read numbers and crisp graduations. Each revolution is 0.100", indicated by the revolution counter. The resolution is 0.001". There is a mounting lug on the back of the case.
Chris's Tips
AGD Groups define the size of the indicator.
| AGD Group | Face Diameter | |
| 0 | 1.00 - 1.38" | 25 - 35 mm |
| 1 | 1.38 - 2.00" | 35 - 50 mm |
| 2 | 2.00 - 2.38" | 50 - 60 mm |
| 3 | 2.38 - 3.00" | 60 - 75 mm |
| 4 | 3.00 - 3.75" | 75 - 95 mm |
Inch indicators have a 0.375" diameter shank with a #4-48 thread for tips. Metric indicators have an 8 mm diameter shank with an M2.5 thread.
Specifications
Range: 0" - 0.25" (0.000 mm - 6.350 mm)
Resolution: 0.001" (0.025 mm)
A.G.D. Group: 1
Face Diameter: 1.5" (38.100 mm)
Shank Size: 0.375" (9.525 mm)
Thread Tip: #4-48
Dial Reading: 0-100-0
Revolution: 0.100" (2.540 mm)
Type: Lug backing
Dial Face: Continuous Dial
