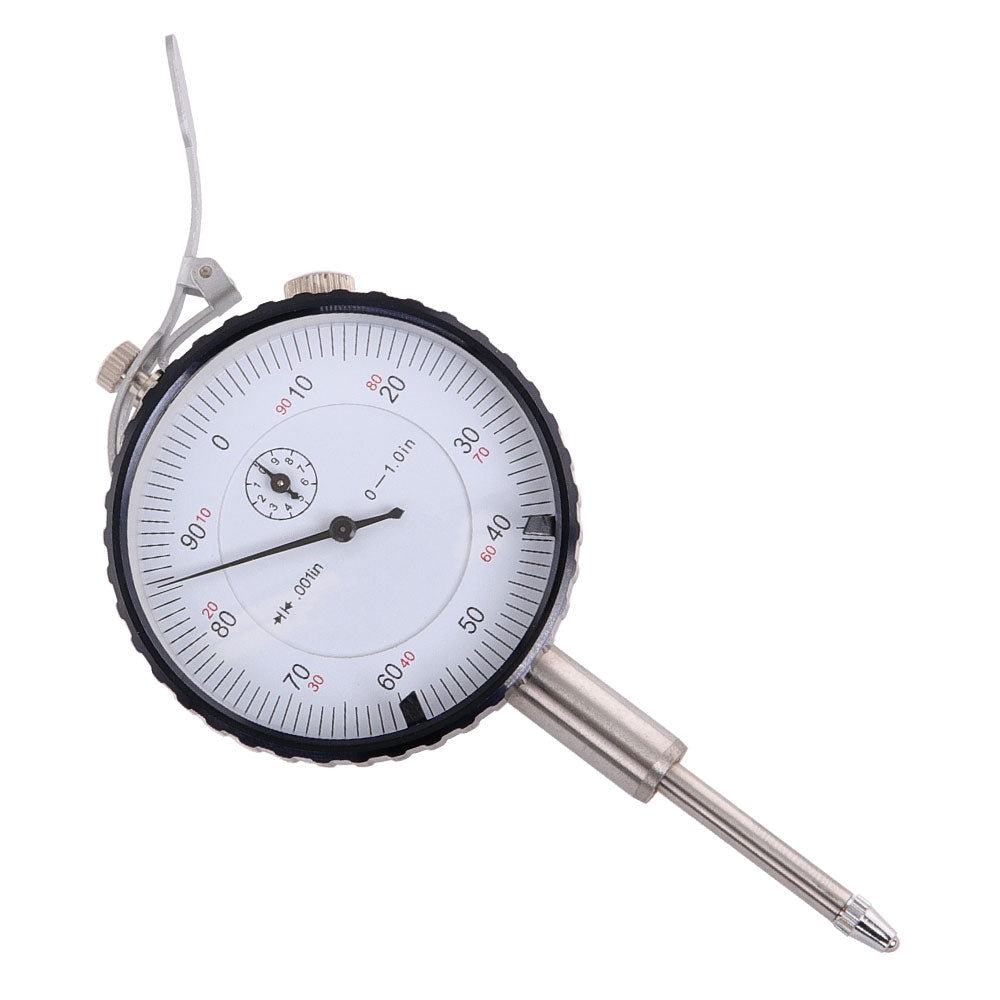

Dial Indicator, 1" x 0.001" with Lifting Lever

Dial Indicator, 1" x 0.001" with Lifting Lever

5918

$21.95 USD
$21.95 USD
Sale Sold out
Shipping calculated at checkout.

Low stock

Key Features

  • 0-1" Dial Indicator with 0.001" Resolution
  • ADG Group 2 - 2" Diameter Dial Face
  • Lifting Lever, 0.375" Shank, #4-48 Tip Thread
  • Lug Back
  • Jeweled Movement

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

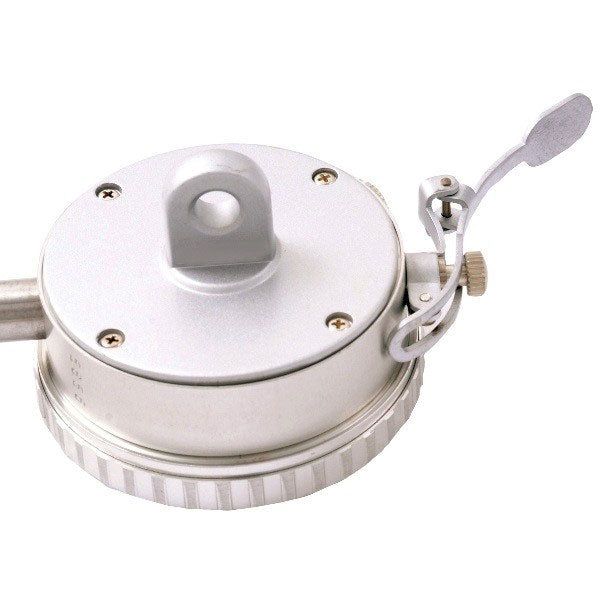

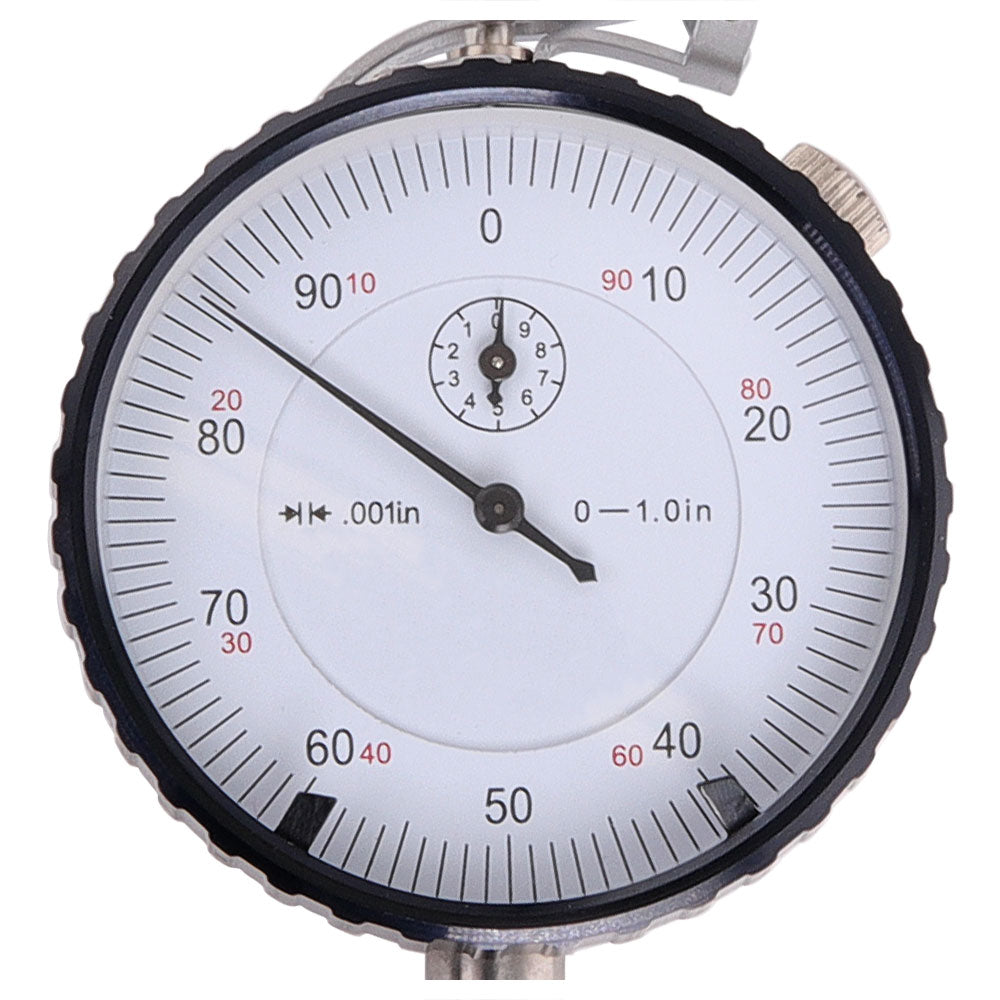

This 1" stroke dial indicator features large, easy to read numbers and crisp graduations. Each revolution is 0.100", indicated by the revolution counter. The resolution is 0.001". There is a mounting lug on the back of the case.

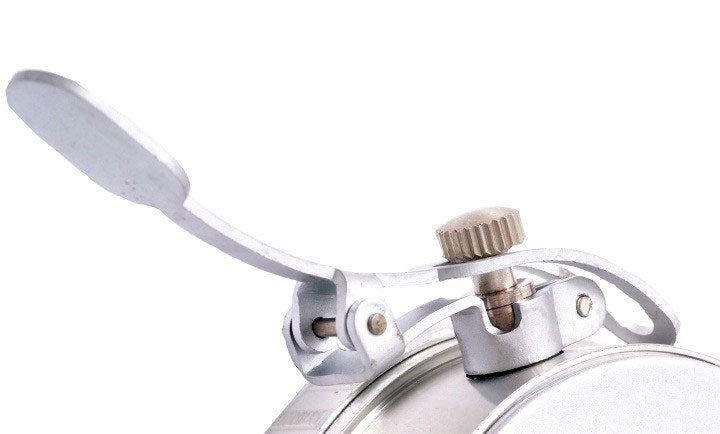

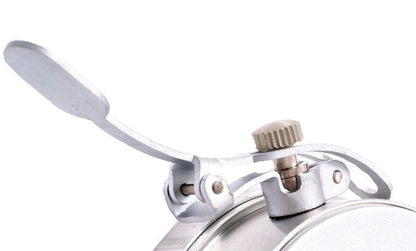

The indicator comes with an equipped lifting lever attached to the top end of the spindle. This improves inspection efficiency and accuracy when using the indicator on a mounted stand. With a lifting lever, the spindle can easily be raised in small increments as material is moved under the spindle.

Chris's Tips

AGD Groups define the size of the indicator.

AGD Group Face Diameter
0 1.00 - 1.38" 25 - 35 mm
1 1.38 - 2.00" 35 - 50 mm
2 2.00 - 2.38" 50 - 60 mm
3 2.38 - 3.00" 60 - 75 mm
4 3.00 - 3.75" 75 - 95 mm

Inch indicators have a 0.375" diameter shank with a #4-48 thread for tips. Metric indicators have an 8 mm diameter shank with an M2.5 thread.

Specifications

Range: 0" - 1" (0.000 mm - 25.400 mm)

Resolution: 0.001" (0.025 mm)

A.G.D. Group: 2

Face Diameter: 2" (50.800 mm)

Shank Size: 0.375" (9.525 mm)

Thread Tip: #4-48

Dial Reading: 0-100-0

Revolution: 0.100" (2.540 mm)

Type: Lug Backing
