The Dasqua Dial Test Indicator is engineered for precision machinists demanding the highest standards, built with a focus on durability and accuracy.

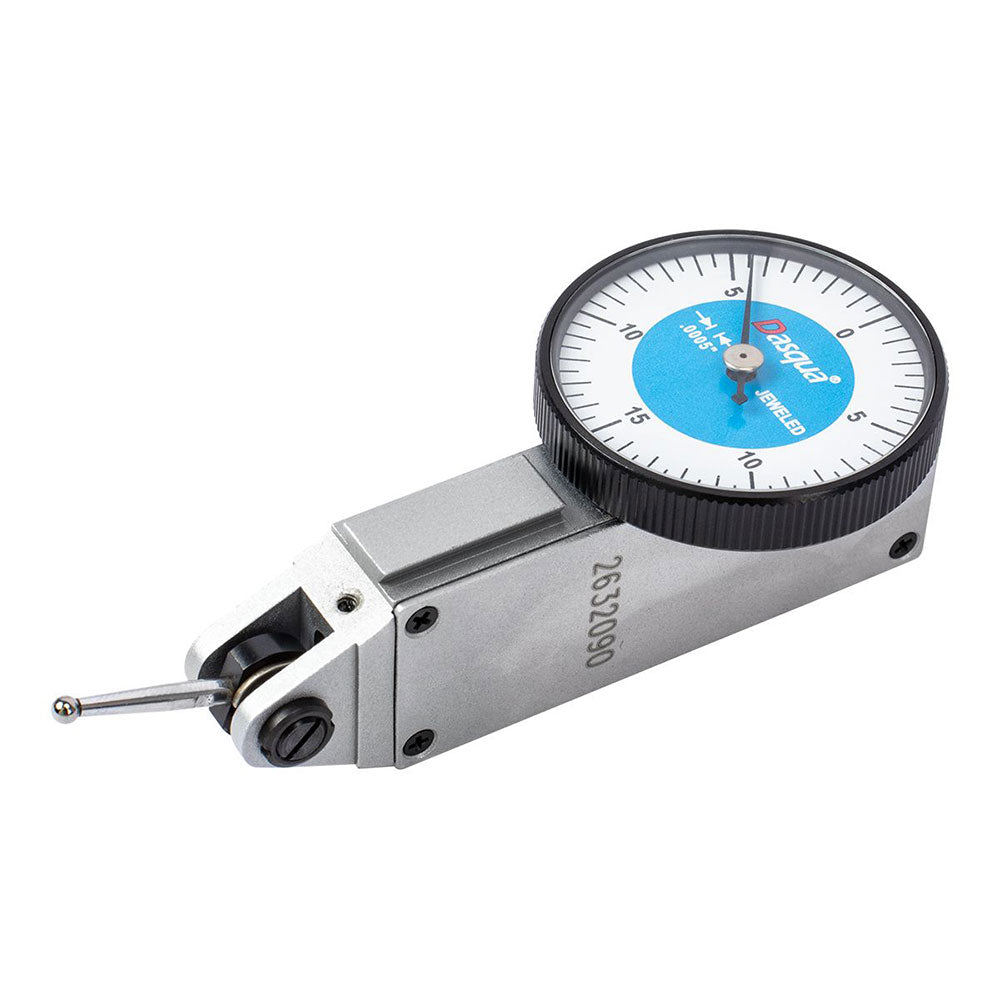

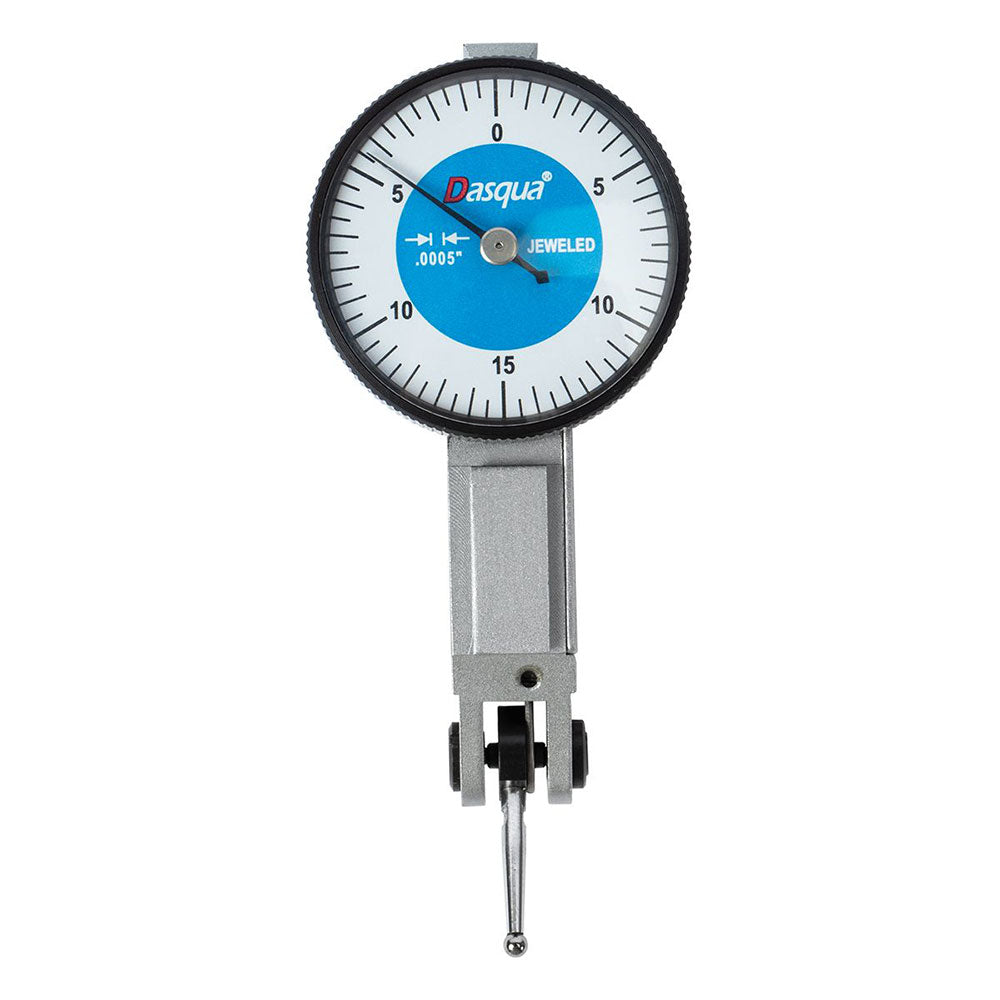

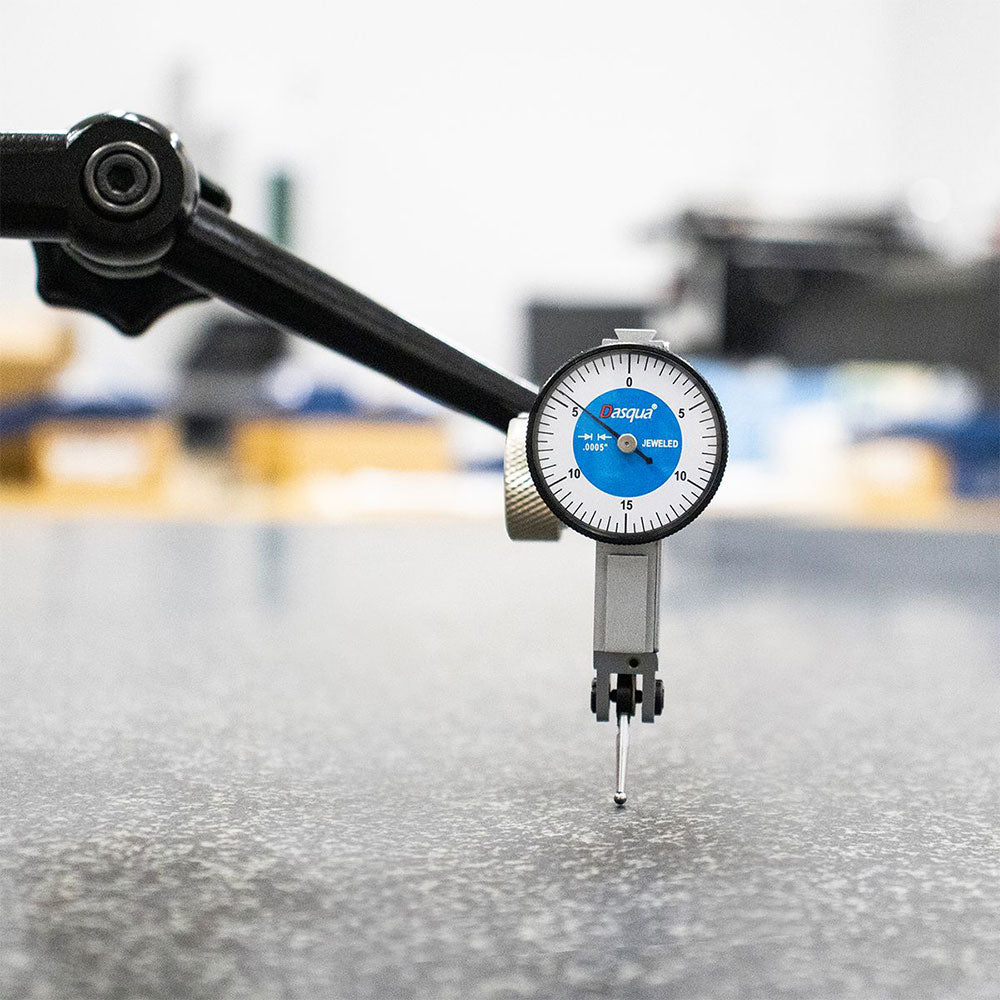

Dasqua 0-.03" White Large Face 0-15-0 Dial Test Indicator with 7-Jeweled movements. This Test dial indicator Delivers accurate measurements with a graduation of 0.0005" for precise adjustments. The large, white-edged dial provides easy-to-read measurements.
It has a range of 0-0.030" in either direction and reading 0-15-0. It includes 5/32" and 3/8" diameter posts, dovetails on the back and end, and a 0.078" diameter point. It comes in a fitted case.

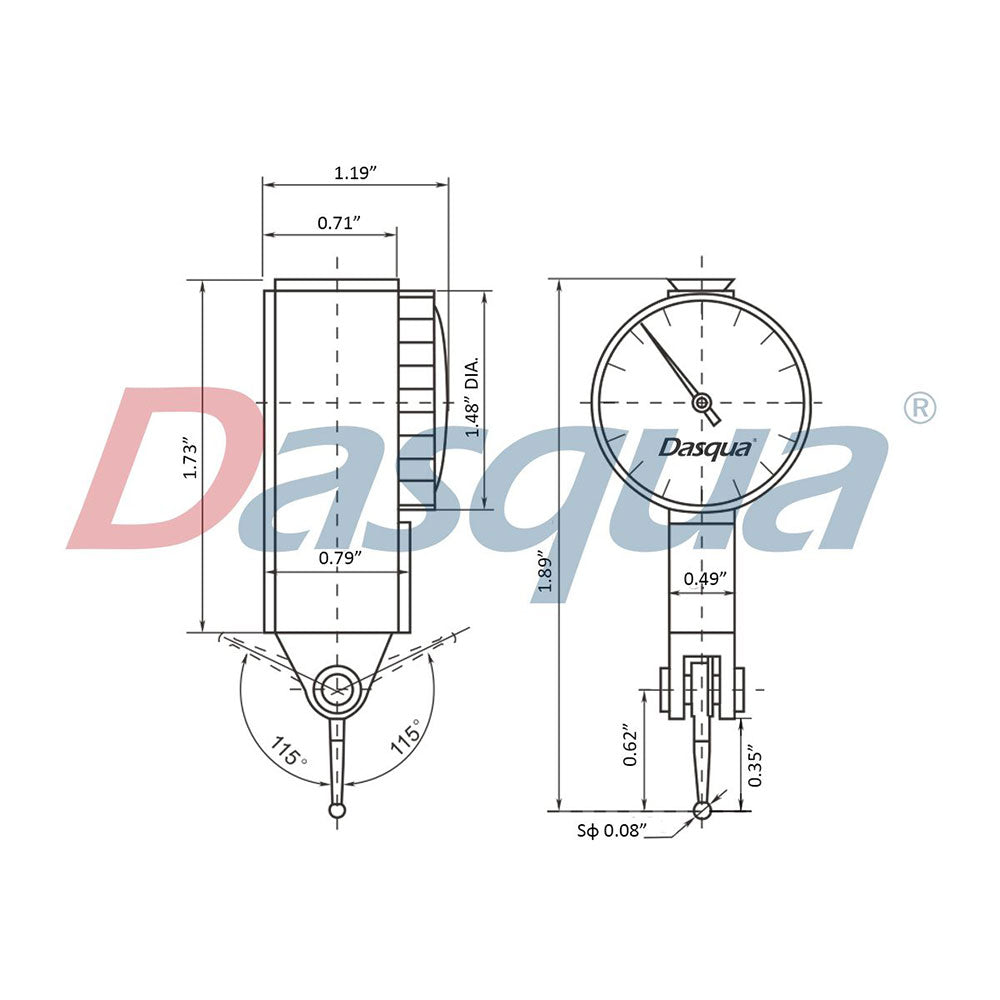

- Dial face is 1-1/2" (37mm) diameter.

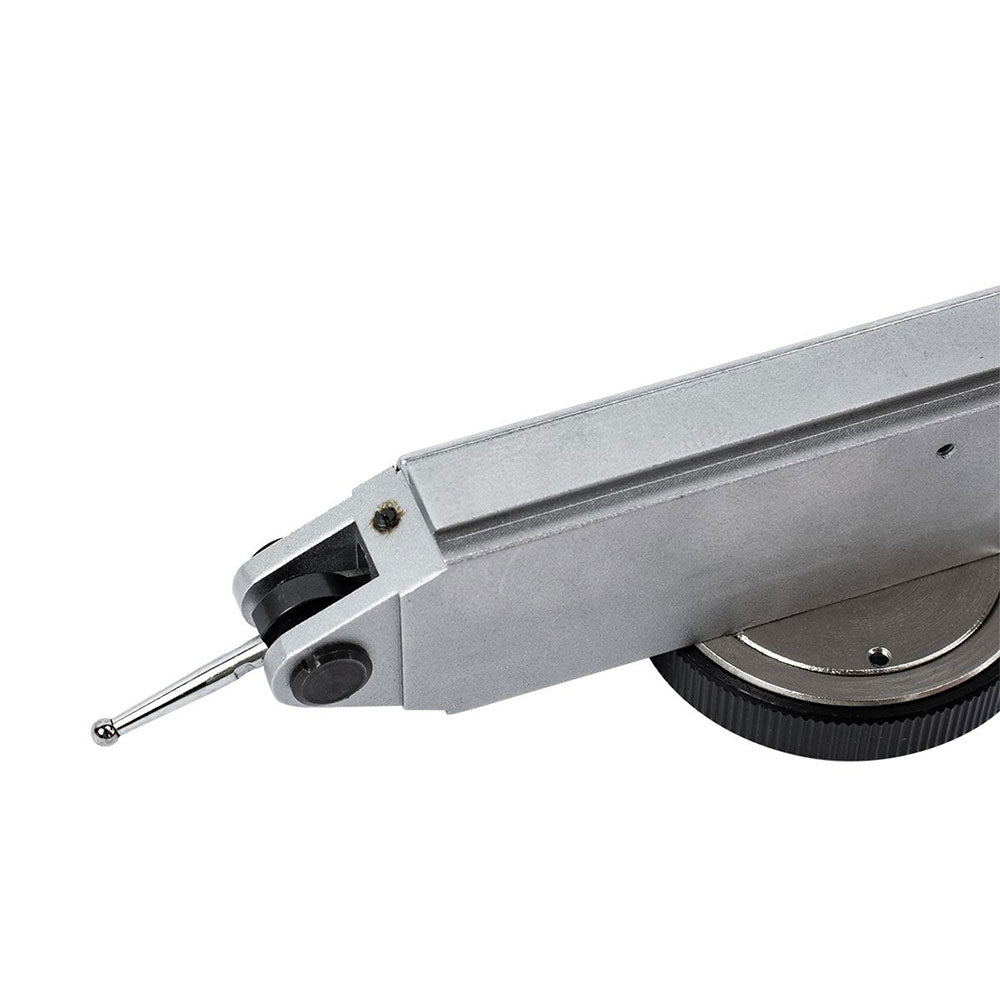

- Contact point is .078" (2mm).

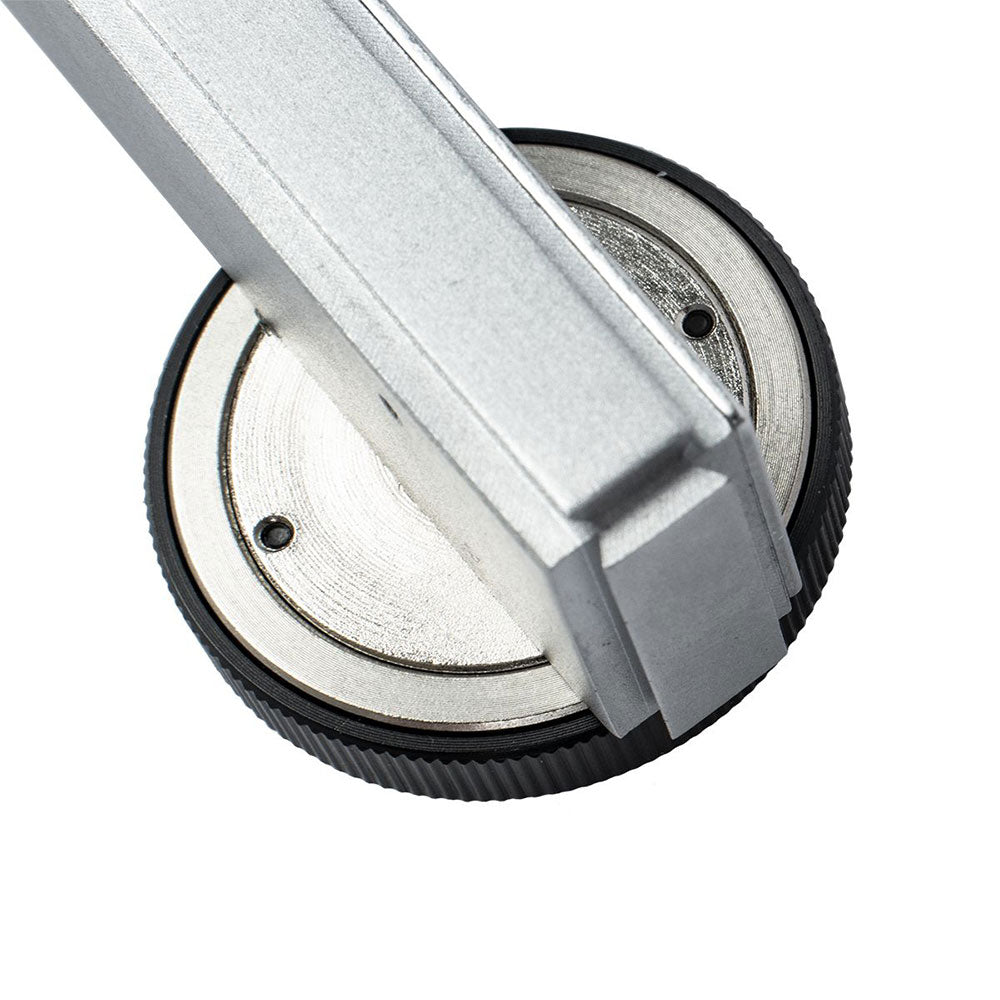

- Dovetail mount on top, back & front.

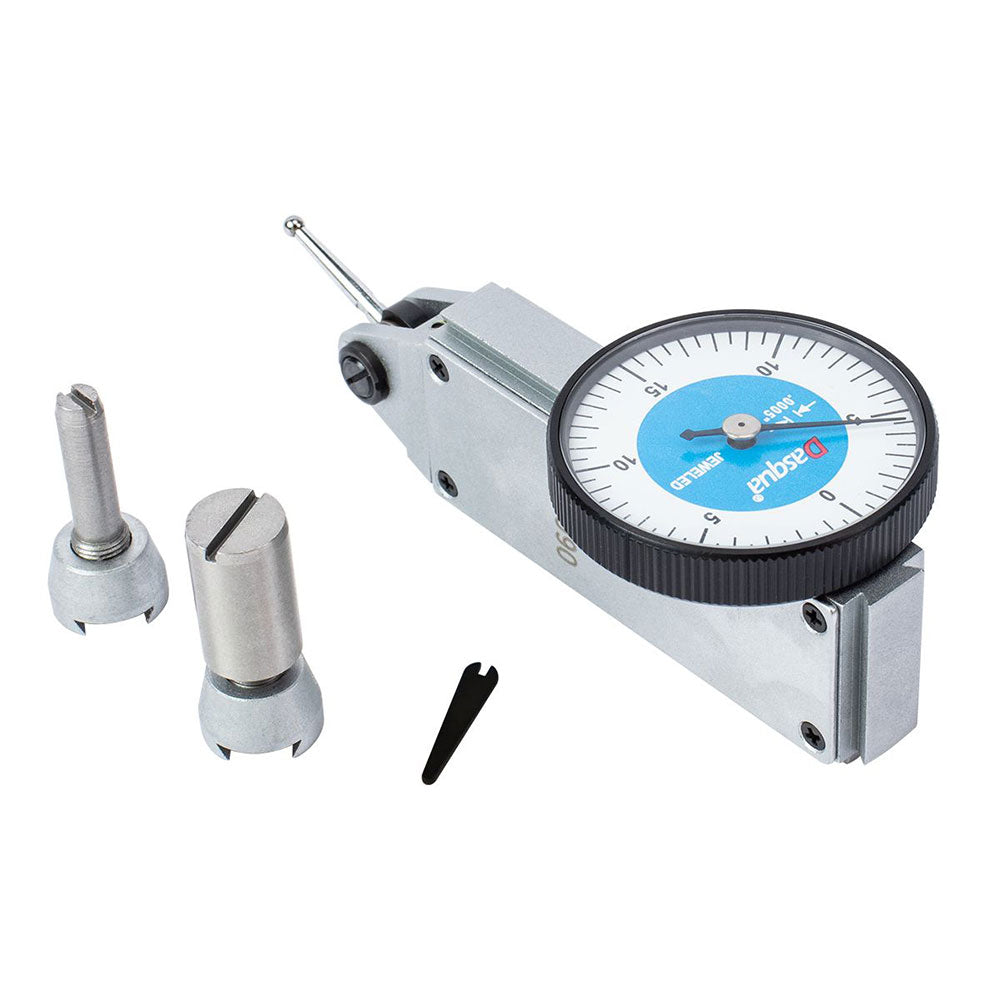

- Includes 5/32" and 3/8" stems for various applications.
- Length of stylus is .053" (13mm).
- Automatic reversing.
A hard frame body with satin chrome finish. Shock-proof gearing with smooth jeweled movement to ensure long-lasting performance in demanding environments.

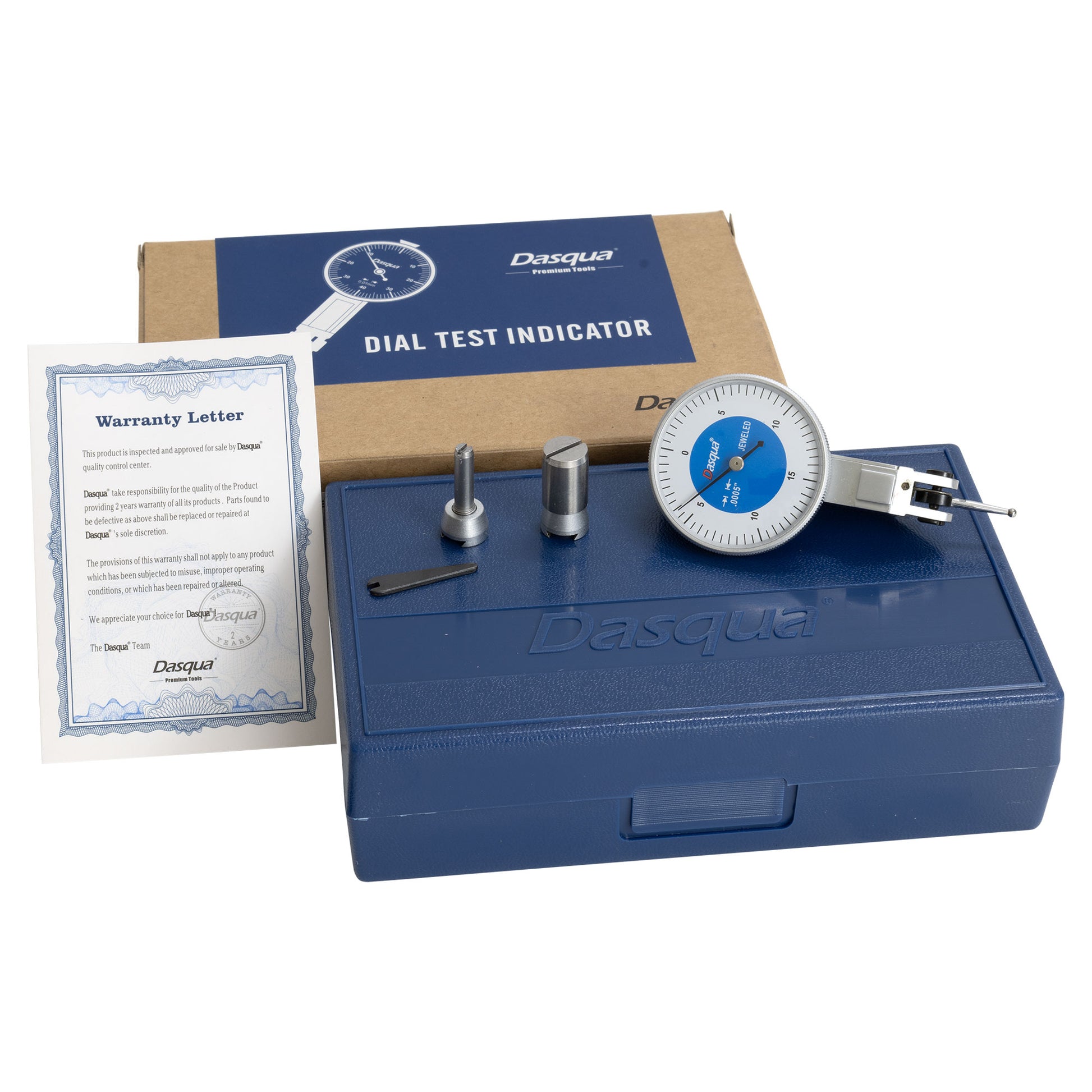

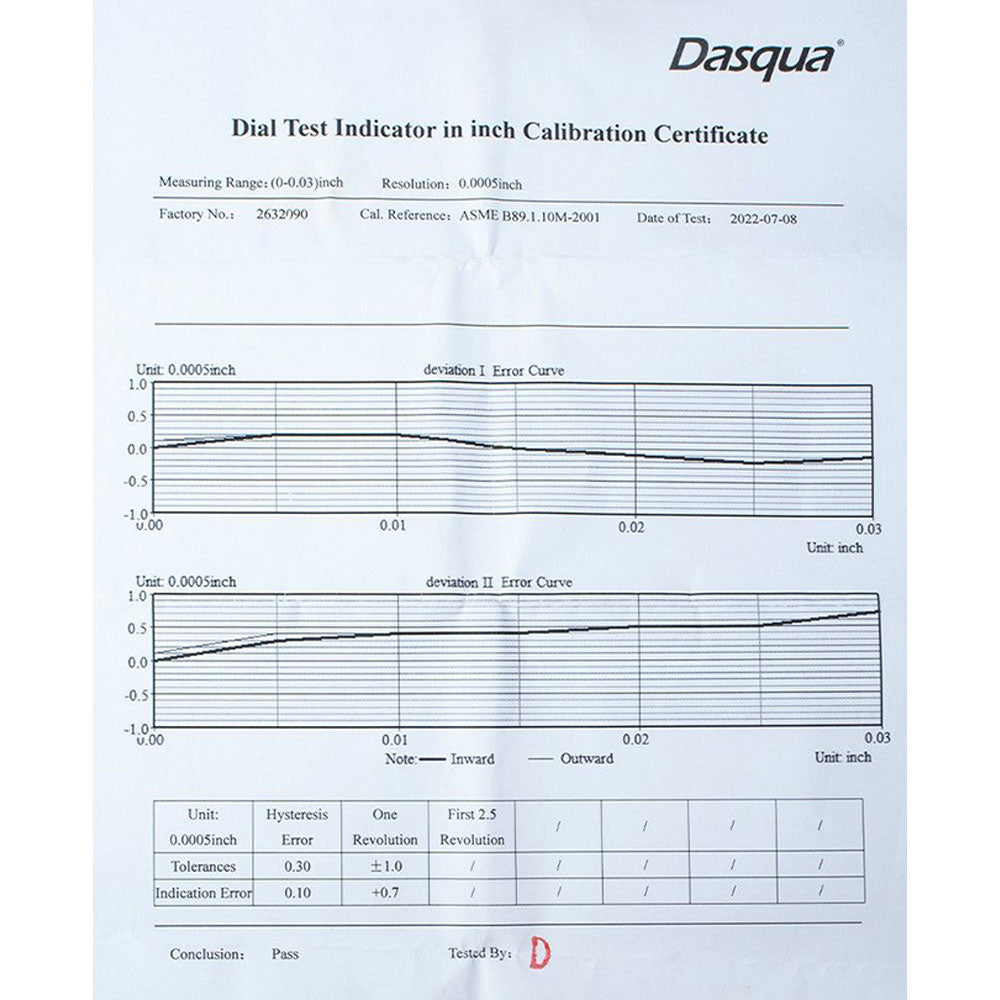

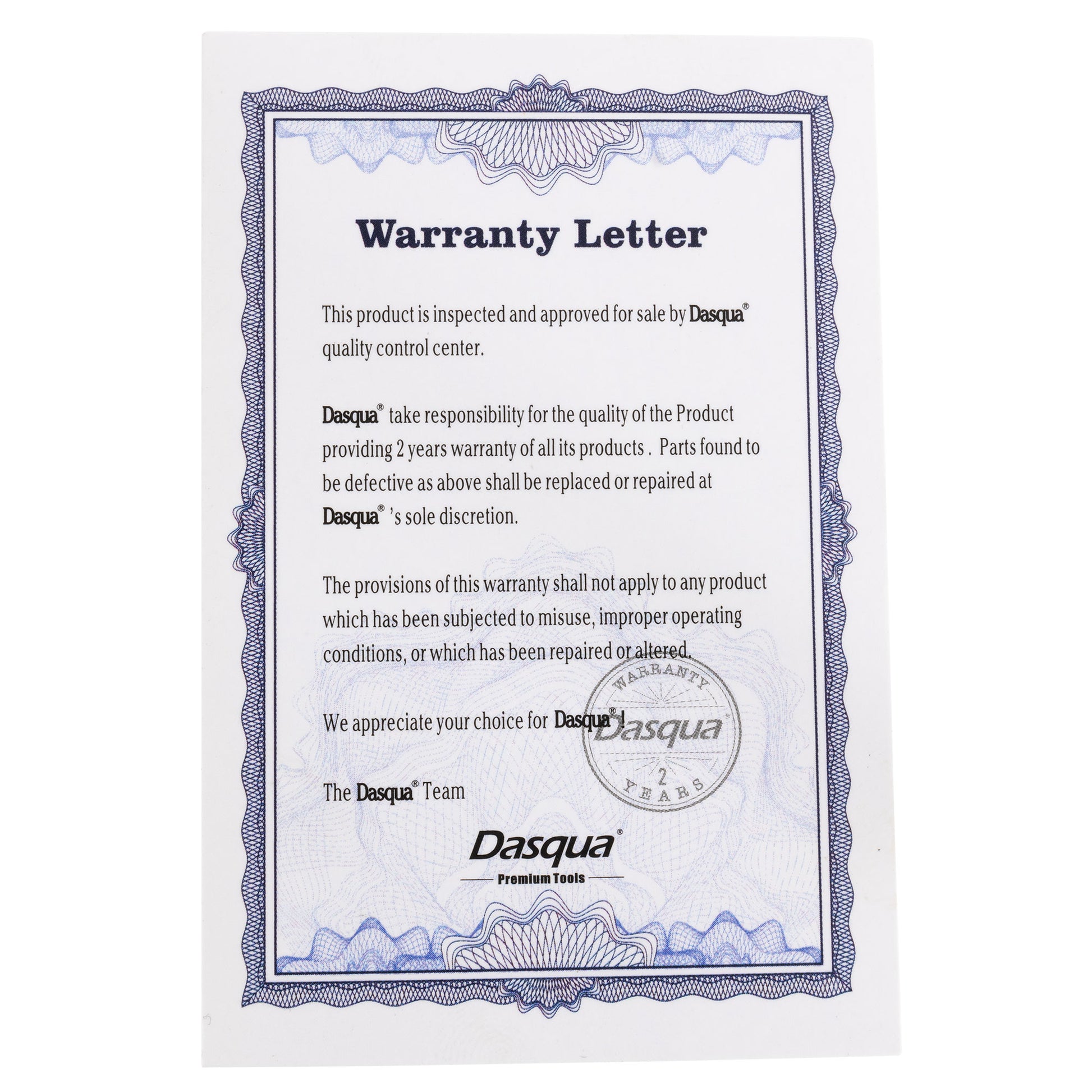

Backed by a traceable QC system and a two-year warranty for peace of mind. Supplied in a fitted case with warranty letter and calibration certificate.
