Die Holder Set, MT2 Tailstock
Die Holder Set, MT2 Tailstock
SKU:6155
In stock
Couldn't load pickup availability
Key Features
Key Features
- The set includes tapered shank, pin punch, and 13/16", 1", 1-5/16" & 1-1/2" die holders
- 2MT Tang shank
- Easy to swap out using the provided pin punch.
- Comes in a fitted case
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
This industrial die holder goes in the tailstock of the mini lathe, or any other lathe with a 2 Morse taper tailstock.

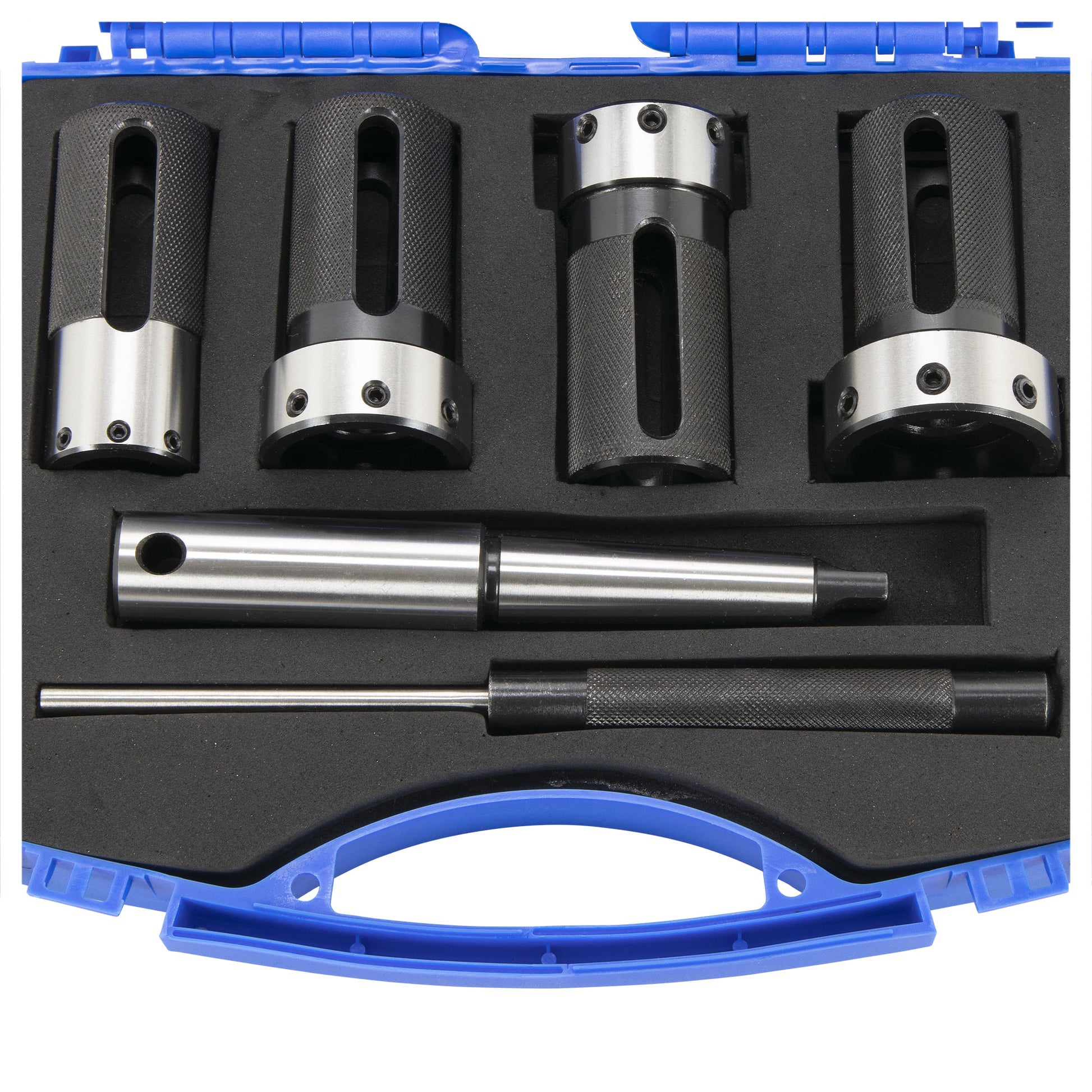

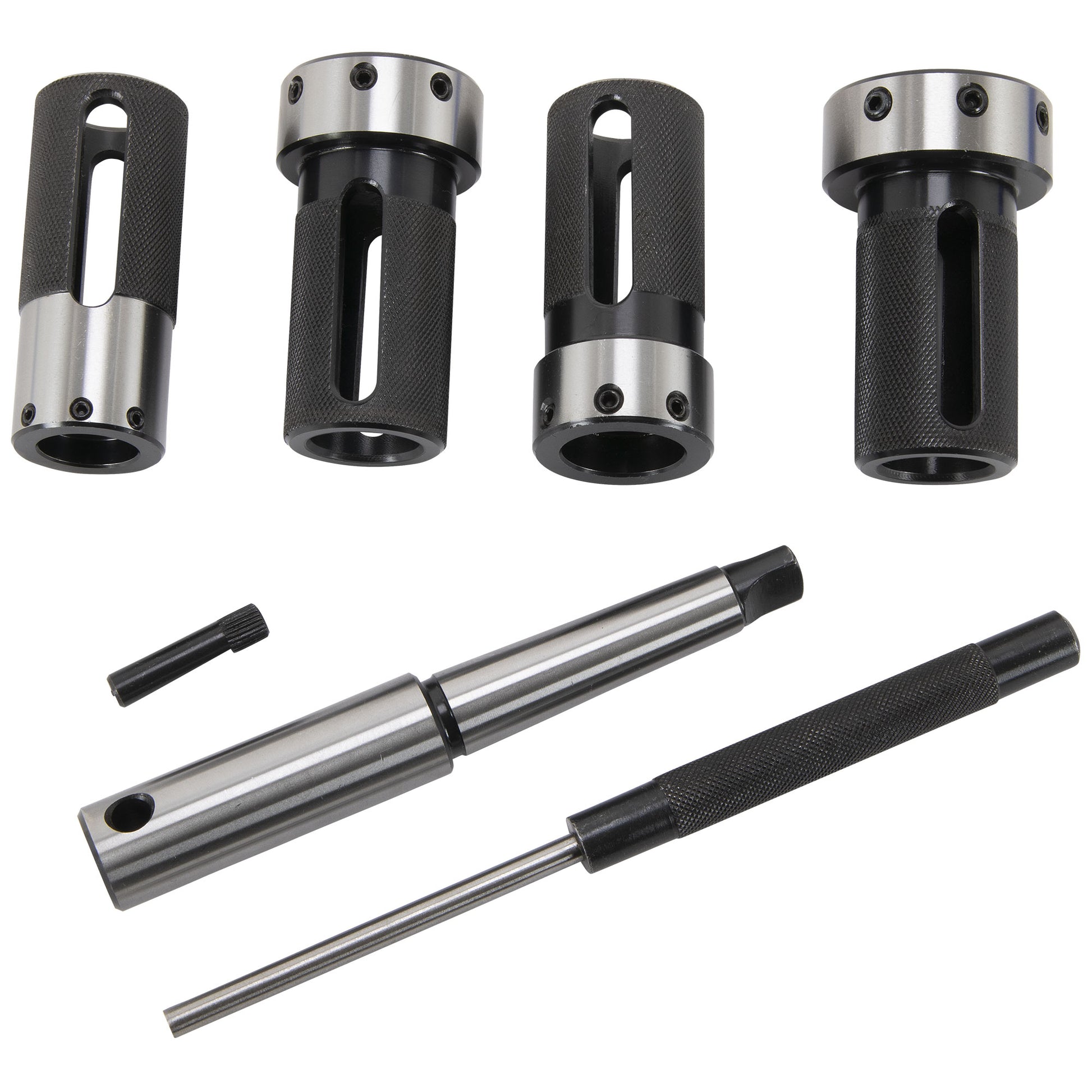

The set includes tapered shank, pin punch, and 13/16", 1", 1-5/16" & 1-1/2" die holders.
This lathe die holder tool does not work with hexagonal dies. Hexagonal dies are not made for creating new threads, they are for maintenance work.
Chris's Tips
Put the tapered arbor in the tailstock and position (and lock) the tailstock so that the die is just off the end of the workpiece.
Turn on the lathe at slow speed.
Grab the knurled body of the die holder and move it into the workpiece. As the die threads the workpiece, the body slides on the arbor.
When you reach the end of the area you want threaded, simply let go of the body and it will start turning with the workpiece.
The tommy bar is used for larger threads and can be set on top of the compound. You will probably have to turn the lathe chuck by hand as mini lathes don't have enough torque.
