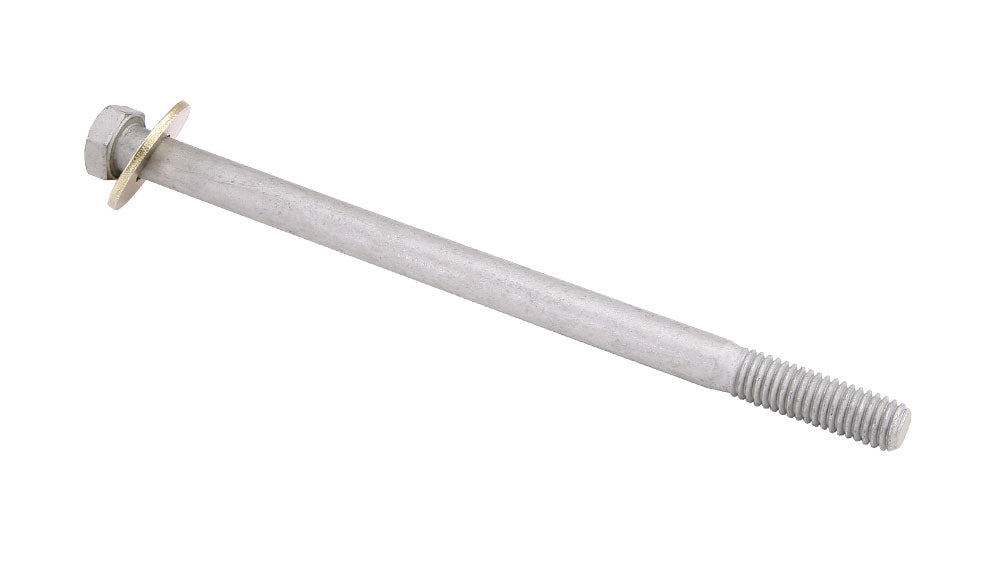

Drawbar, 3MT x 3/8"-16, 7x14, with Washer - Mini Lathe

Drawbar, 3MT x 3/8"-16, 7x14, with Washer - Mini Lathe

Made in Canada Made in Canada

2224

$6.95 USD
$6.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • Mini lathe drawbar
  • 3MT x 3/8"-16 x 6.5"
  • Hardened
  • Fits HiTorque mini lathes with 3MT spindle
  • Fit SIEG SC2 and C3 mini lathes

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

This is the 3/8"-16 drawbar for HiTorque mini lathes with the 3 Morse Taper spindle. Also fits SIEG SC2 and C3 mini lathes.

This drawbar is a 3/8"-16 x 6.5" cap screw and a flat washer. They are both hardened for long life.

Made from Grade 8 steel, these screws can be used in high-stress applications, such as valves, pumps, motors, and automotive suspension systems. They are at least 25% stronger than medium-strength steel screws. Grade 8 steel hex head screws are marked with six radial lines. Length is measured from under the head.

Zinc-flake-coated steel screws are about five times as corrosion resistant as zinc yellow-chromate plated screws and have good resistance to salt water and acids. Also known as ultra coat and armor coat. To maintain corrosion resistance, use these screws with zinc-flake-coated nuts and washers.

See Specifications Tab for more information on this product.

See the Compatibility tab for machines that work with this product.

Specifications

Length: 6.5" (165.100 mm)

System of Measurement: Inch

Head Type: Hex

Drive Style: External Hex

Thread Direction: Right Hand

Thread Size: 3/8"-16

Screw Size Decimal Equivalent: 0.375"

Thread Type: UNC

Thread Fit: Class 2A

Threading: Partially Threaded

Min. Thread Length: 1.25" (31.750 mm)

Thread Spacing: Coarse

Head Width: 9/16"

Height: 15/64"

Fastener Strength: Grade 8

Material: Steel

Finish: Zinc-Flake Coated

Tensile Strength: 150,000 psi

Hardness: Rc 33

---- Washer Specs: --------

Washer Type: Flat

For Screw Size: 3/8"

Id: 0.438"

Od: 1.000"

Thickness: 0.064" to 0.104"

Strength Grade/Class: SAE Grade 8

Strength Rating: High

Hardness: Rc 38

Performance: High Strength

System of Measurement: Inch

Product Compatibility

This product was designed for machines manufactured by SIEG, including those listed below. We have added compatibility for other non-SIEG machines when a “fit” can be verified.

If your machine is not listed, we cannot verify compatibility but encourage you to contact us. With additional information we may be able to help you find a solution.

  • Micro-Mark 82710 MicroLux 7x14 Mini Lathe
  • LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
  • SIEG C3 7x14 Mini Lathe
  • Big Dog BD-0618x300 7x14 Mini Lathe
  • Big Dog BD-0618Ax300 7x14 Mini Lathe
  • Warco 4800-350 7x14 Mini Lathe (Imperial)
  • Warco 4820-350 7x14 Mini Lathe (Metric)
  • Micro-Mark 84631 MicroLux 7x16 Mini Lathe
  • LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
  • LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
  • LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
  • LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
