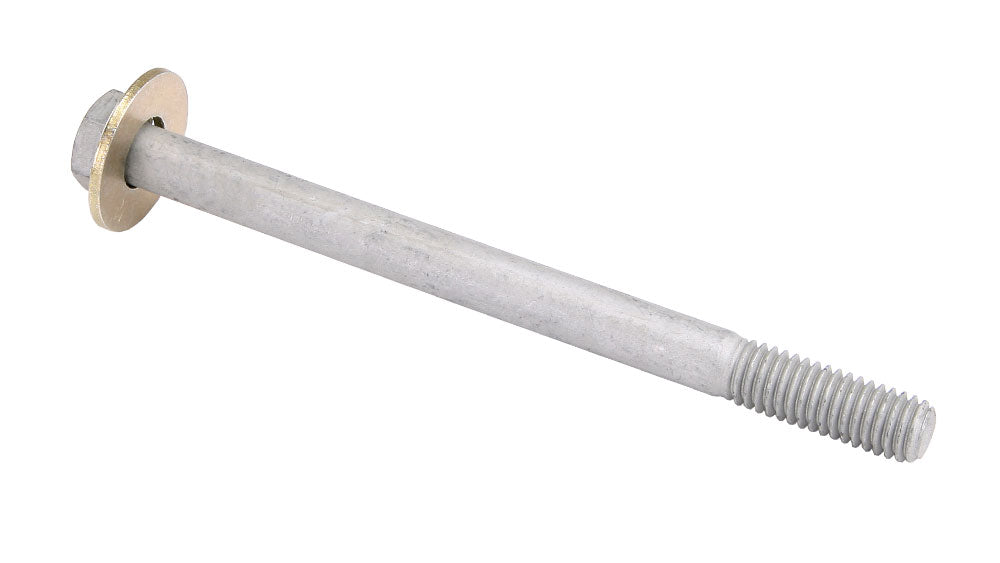

Drawbar, 3MT x 3/8"-16x5" with Washer - Mini Lathe

Drawbar, 3MT x 3/8"-16x5" with Washer - Mini Lathe

Made in Canada Made in Canada

1873

$5.95 USD
$5.95 USD
Sale Sold out
Shipping calculated at checkout.

Out of stock

Key Features

  • Mini lathe drawbar
  • 3MT x 3/8"-16 x 5"
  • Hardened grade 8
  • Fit SIEG C2 and SC2 class of mini lathes
  • Includes washer

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

This is the 3/8"-16 drawbar for the 7x10 and 7x12 mini lathe with the 3 Morse Taper spindle.

This drawbar is a 3/8"-16 x 5" cap screw and a flat washer. They are both hardened for long life.

Made from Grade 8 steel, these screws can be used in high-stress applications, such as valves, pumps, motors, and automotive suspension systems. They are at least 25% stronger than medium-strength steel screws. Grade 8 steel hex head screws are marked with six radial lines. Length is measured from under the head.

Zinc-flake-coated steel screws are about five times as corrosion resistant as zinc yellow-chromate plated screws and have good resistance to salt water and acids. Also known as ultra coat and armor coat. To maintain corrosion resistance, use these screws with zinc-flake-coated nuts and washers.

See Specifications Tab for more information on this product.

See the Compatibility tab for machines that work with this product.

Specifications

Length: 5" (127.000 mm)

System of Measurement: Inch

Head Type: Hex

Drive Style: External Hex

Thread Direction: Right Hand

Thread Size: 3/8"-16

Screw Size Decimal Equivalent: 0.375"

Thread Type: UNC

Thread Fit: Class 2A

Threading: Partially Threaded

Min. Thread Length: 1" (25.400 mm)

Thread Spacing: Coarse

Head Width: 9/16"

Height: 15/64"

Fastener Strength: Grade 8

Material: Steel

Finish: Zinc-Flake Coated

Tensile Strength: 150,000 psi

Hardness: Rc 33

---- Washer Specs: --------

Washer Type: Flat

For Screw Size: 3/8"

Id: 0.438"

Od: 1.000"

Thickness: 0.064" to 0.104"

Strength Grade/Class: SAE Grade 8

Strength Rating: High

Hardness: Rc 38

Performance: High Strength

System of Measurement: Inch

Product Compatibility

This product was designed for machines manufactured by SIEG, including those listed below. We have added compatibility for other non-SIEG machines when a “fit” can be verified.

If your machine is not listed, we cannot verify compatibility but encourage you to contact us. With additional information we may be able to help you find a solution.

  • Bolton CQ9318 7x12 Mini Lathe
  • Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
  • Cummins (Tools Now) 5278 7x12 Mini Lathe
  • Eastwood 32497 7x12 Mini Lathe
  • Grizzly G8688 7x12 Mini Metal Lathe
  • Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
  • Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
  • LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
  • LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
  • Northern Tool 49656 KLUTCH 7x12 Mini Lathe
  • Princess Auto 8507659 Powerfist 7x12 Mini Lathe
  • SIEG C2 7x12 Mini Lathe
  • Tormach 30689 7x12 Duality Lathe
  • Travers Tools OT222300 OTMT 7x12 Mini Lathe
  • Warco 3005 7x12 Mini Lathe (Imperial)
  • Warco 3004 7x12 Mini Lathe (Metric)
  • WEN 3455 WEN 7x12 Mini Lathe
  • Micro-Mark 82500 MicroLux 7x12 Mini Lathe
  • LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
  • LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
  • SIEG SC2 7x12 Mini Lathe
