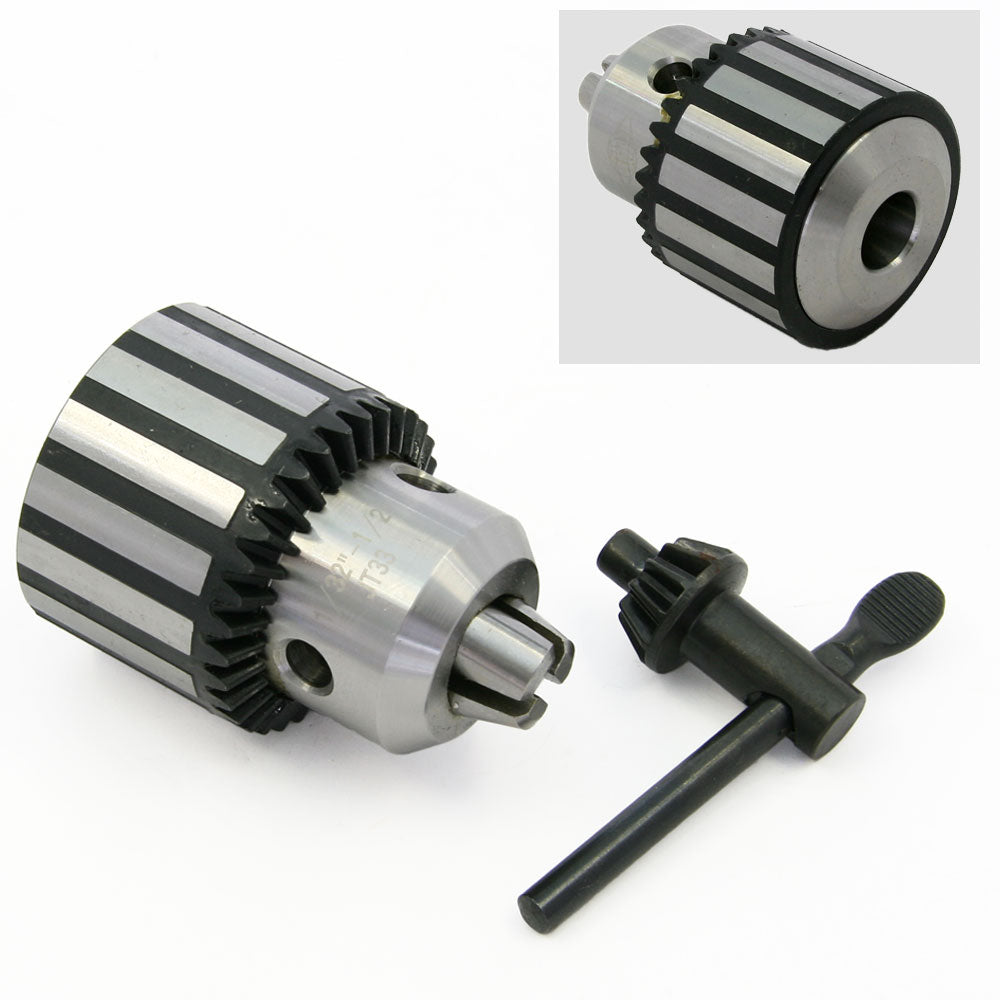

Drill Chuck, 1/2"
Drill Chuck, 1/2"
SKU:1212
In stock
Couldn't load pickup availability
Notify Me
Notify me when items are back in stock.
Key Features
Key Features
- High degree of accuracy
- All working parts hardened
- Drill chuck with key included
- Capacity: 1/32" - 1/2"
- Mounts to 33 Jacobs taper arbor
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
1/32" - 1/2" Capacity drill chuck designed for bench and floor drill presses, mills, lathes. Hardened ground center jaw improves durability and ensures straight alignment.
Runout of this mini drill chuck is 0.008" (0.20 mm) or less.
Chris's Tips
Use a 2MT to 33JT drill chuck arbor with the mini lathes having a 2 Morse taper tailstock.
Use a 3MT to 33JT drill chuck arbor with the mini mills having a 3 Morse taper spindle.
Specifications
Capacity: 0.039" - 0.512" (1 mm - 13 mm)
Maximum Runout: 0.008" (0.2 mm)
Mount: 33 Jacobs Taper
Style: Plain Bearing
