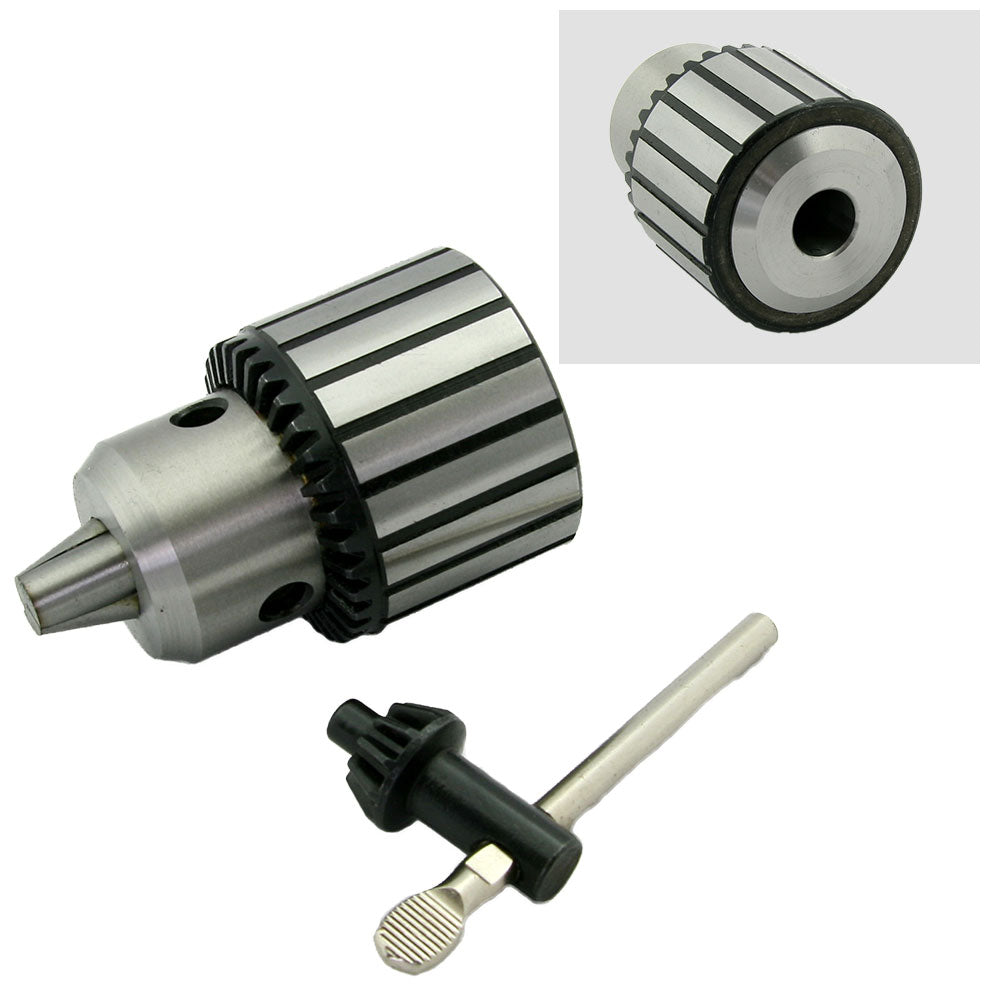

Drill Chuck, 5/8" Professional Grade
Drill Chuck, 5/8" Professional Grade
In stock
SKU:4863Shelf Location: (D10 - 05)
Couldn't load pickup availability
Key Features
Key Features
- Precision made with the highest TIR
- Designed for heavy duty jobs
- Key included
- Capacity: 1/16” - 5/8”
- Mounts to 33 Jacobs taper arbor
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
1/16" - 5/8" Capacity professional drill chuck. Designed for heavy jobs; all working parts are hardened and manufactured to the highest standards for durability and straight alignment.
This 5/8" drill chuck is comparable to a Jacobs 34-33 heavy-duty drill chuck, including the runout specification of 0.004" (0.10 mm) or less. Chuck key is included.
Chris' Tips
Use a 2MT to 33JT drill chuck arbor with the mini lathes having a 2 Morse taper tailstock.
Use a 3MT to 33JT drill chuck arbor with the mini mills having a 3 Morse taper spindle.
Specifications
Capacity: 0.059" - 0.630" (1.5 mm - 16 mm)
Maximum Runout: 0.004" (0.1 mm)
Mount: 33 Jacobs Taper
