Rikon

Drill Press, 13" Bench Top, 16-Speed

Drill Press, 13" Bench Top, 16-Speed

$479.99
$479.99
Sale Sold out
Shipping calculated at checkout.

Low stock

5540 (P78 - 01)

Key Features

  • Bench top drill press
  • 13" Swing
  • 16 Speeds from 220 to 3600
  • #2 Morse taper spindle
  • 5/8" Drill chuck

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

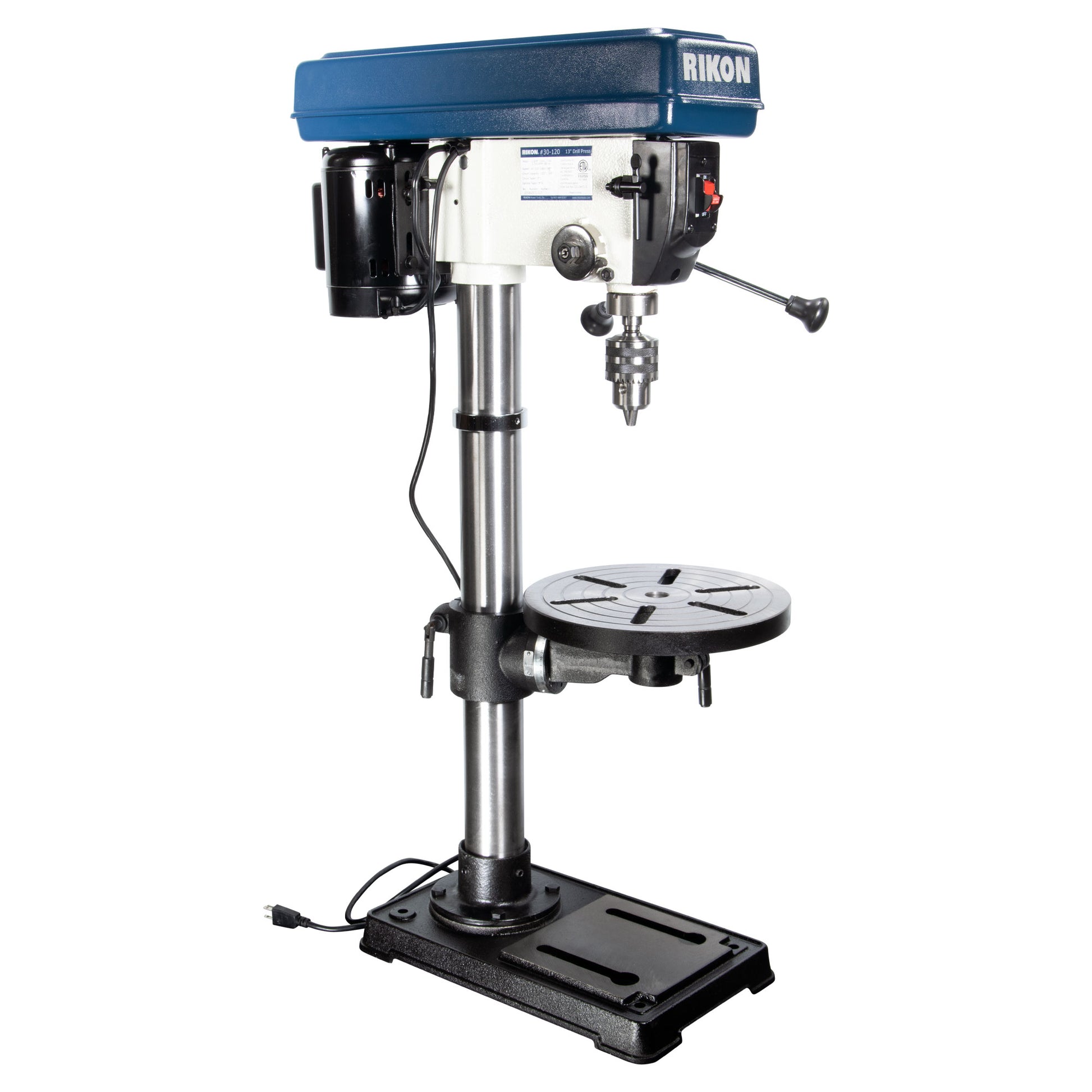

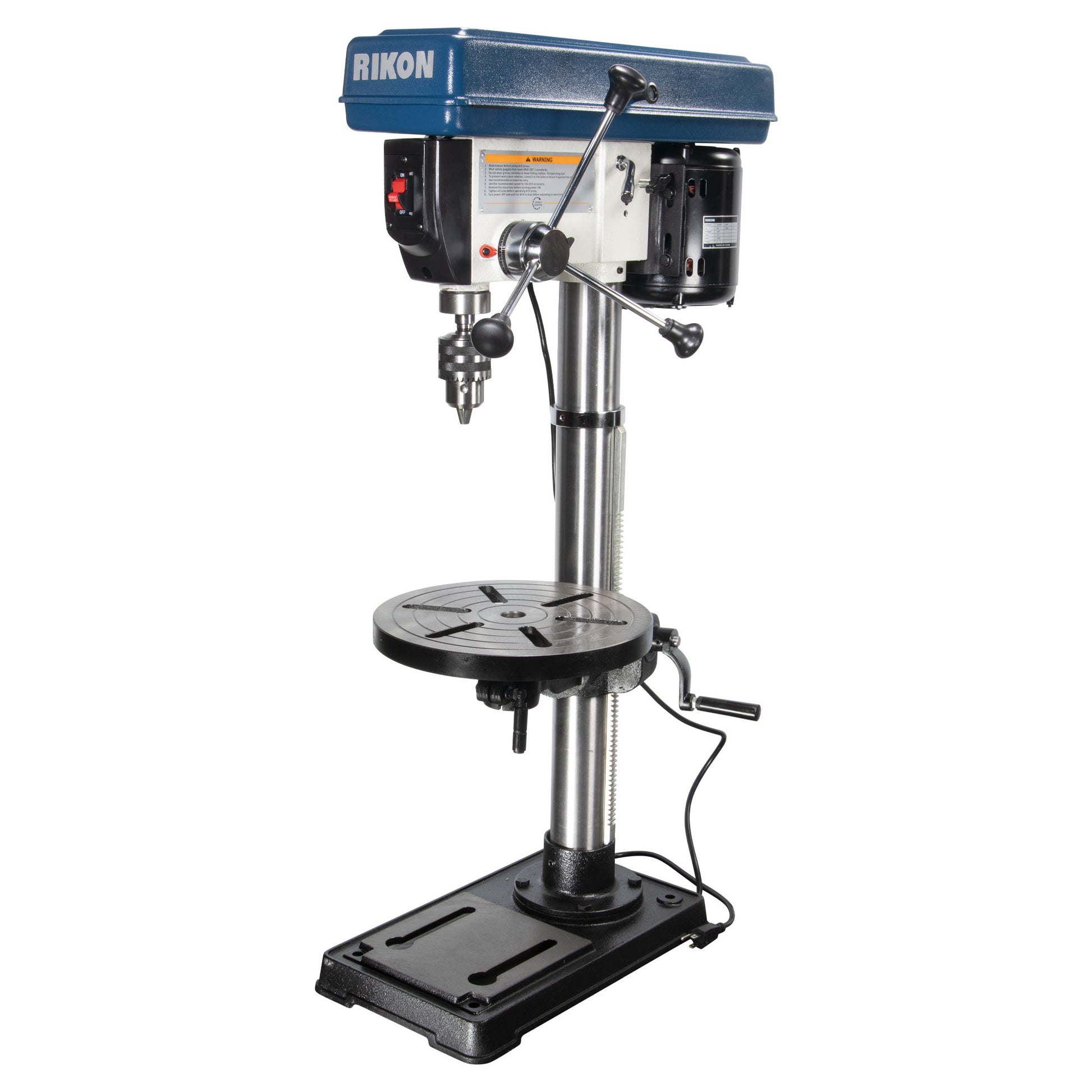

This is a versatile drill press for the home shop. With 13" swing and 16 speeds it can handle materials from wood, plastic, and most metals, including stainless steel.

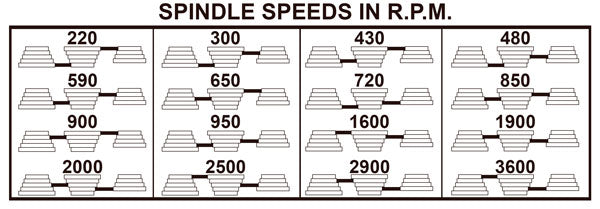

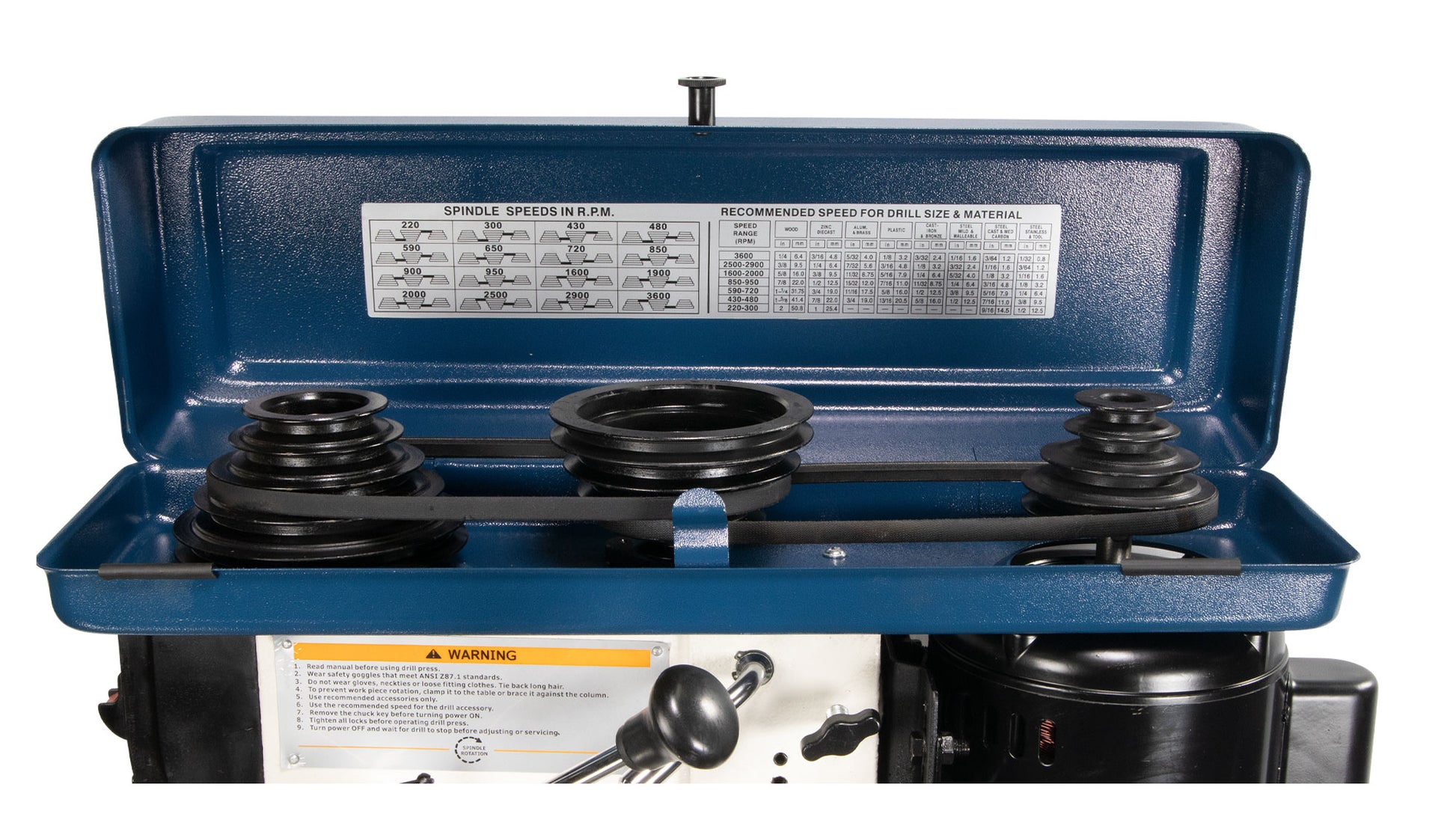

The 16 spindle speeds are 220, 300, 430, 480, 590, 650, 720, 850, 900, 950, 1600, 1900, 2000, 2500, 2900, and 3600 RPM.

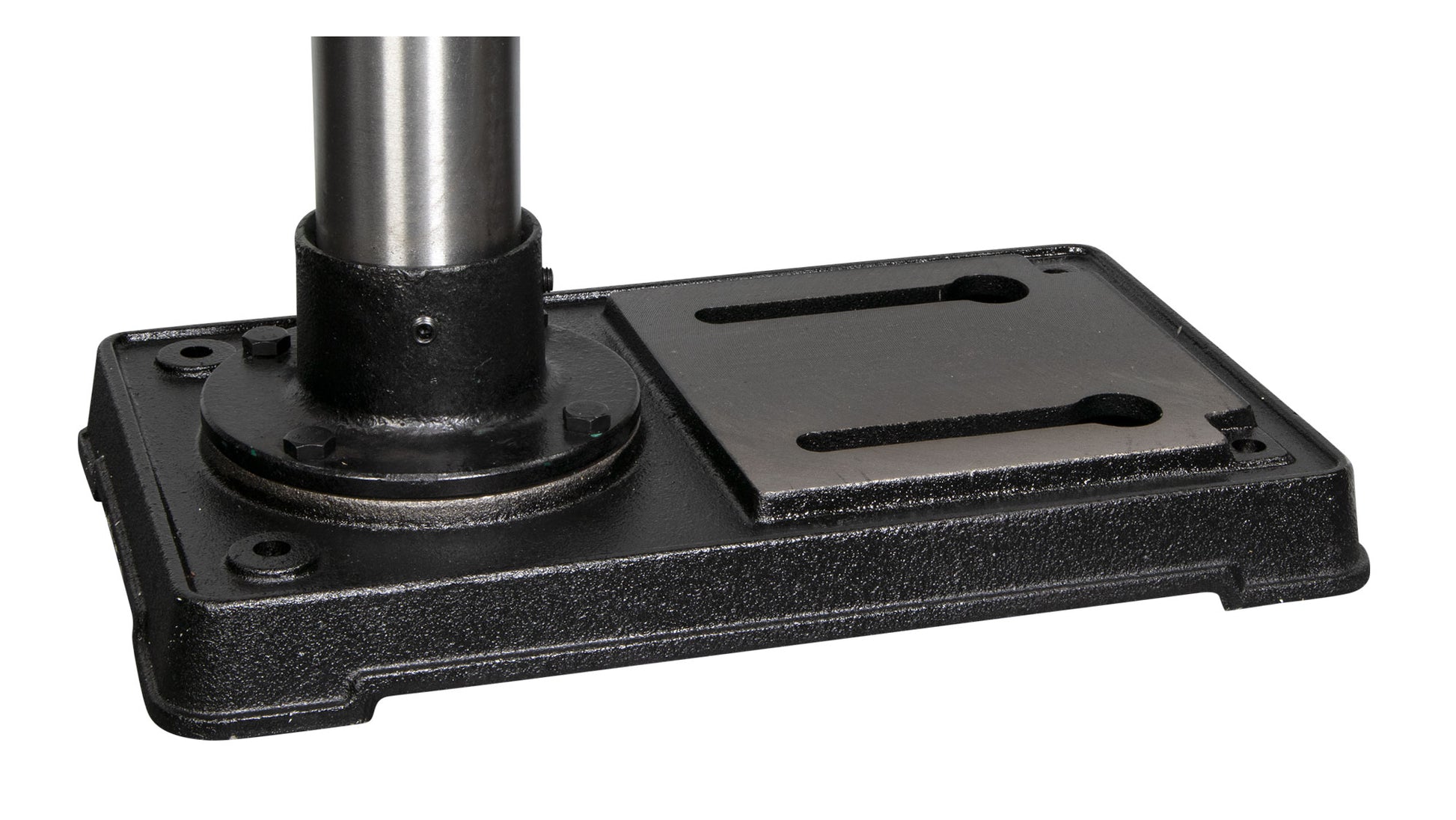

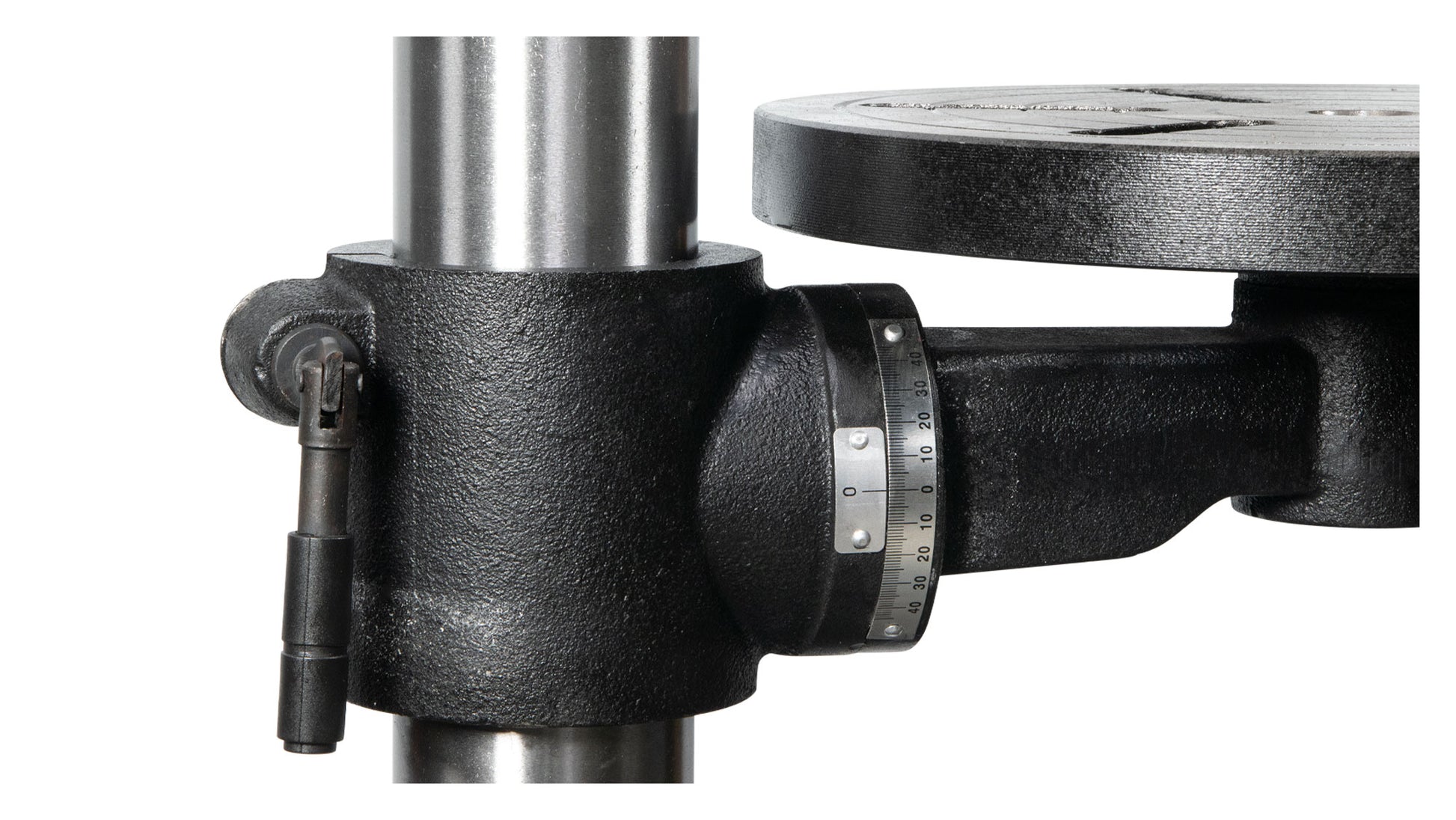

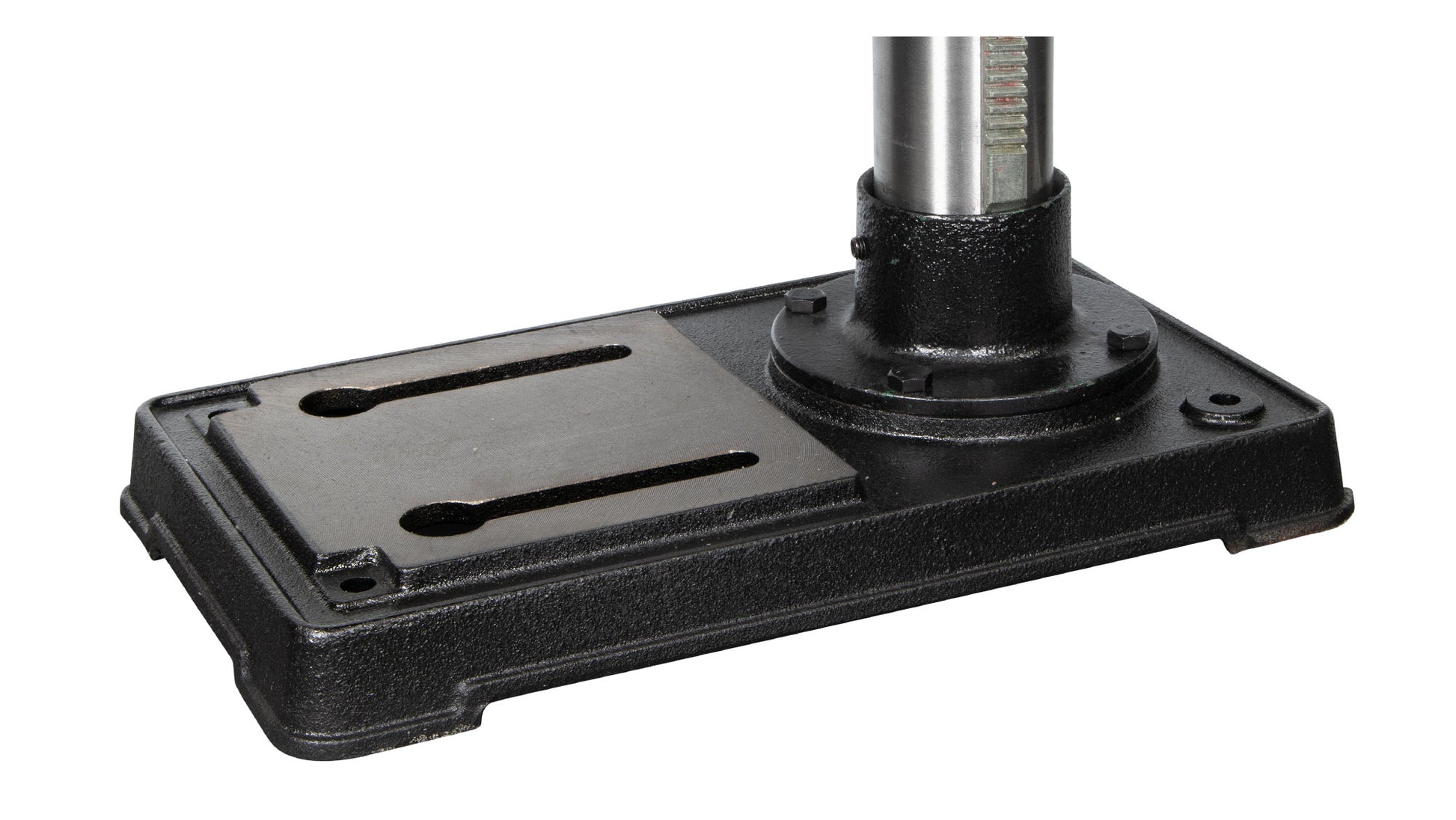

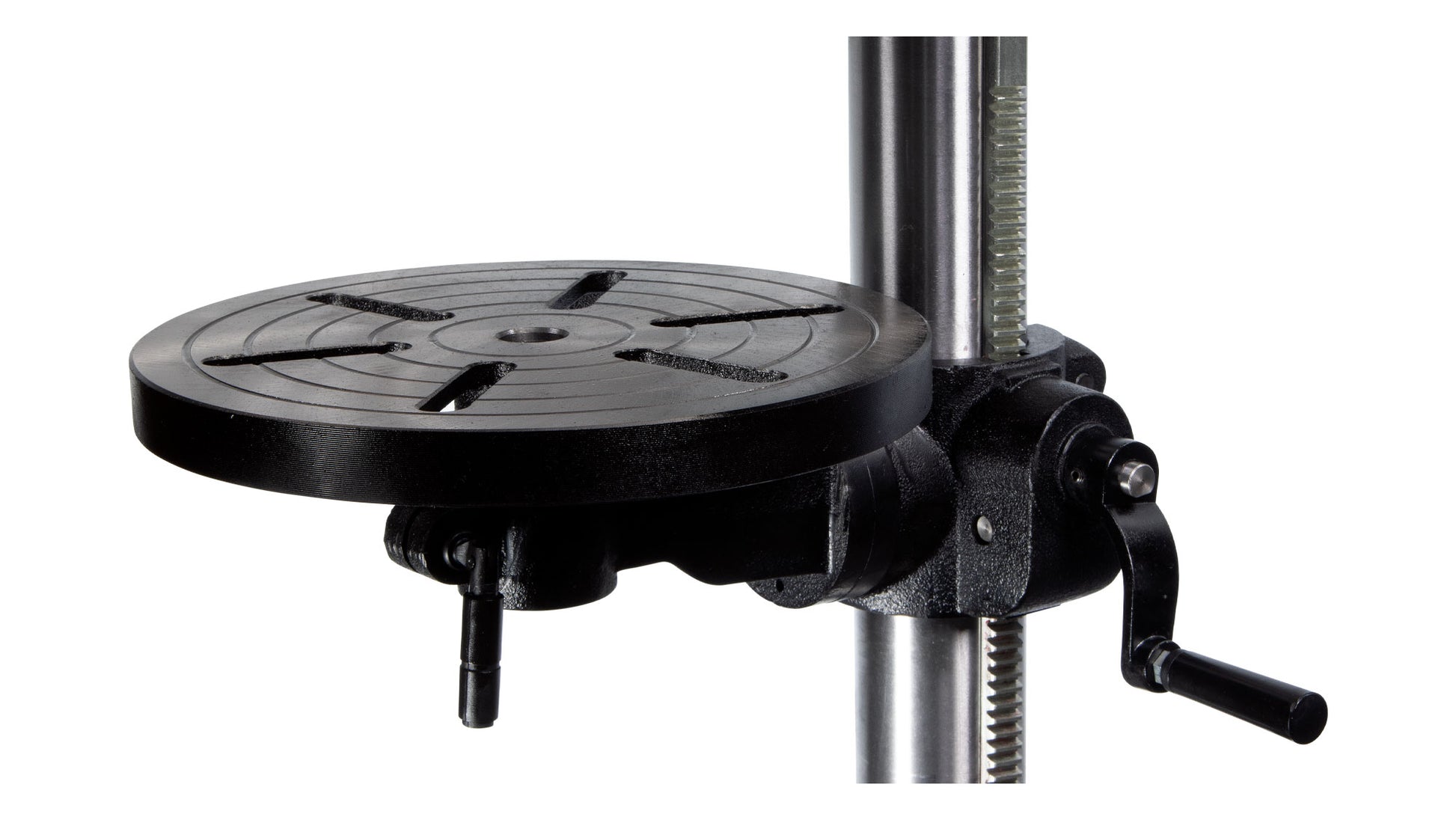

The large round table (11 13/16" diameter) tilts 45 degrees either way and raises and lowers with a rack and pinion. The base is made from sturdy cast iron with a wide footprint for stability (17 3/4" x 10 1/2").

There is an adjustable depth quill stop with a gage.

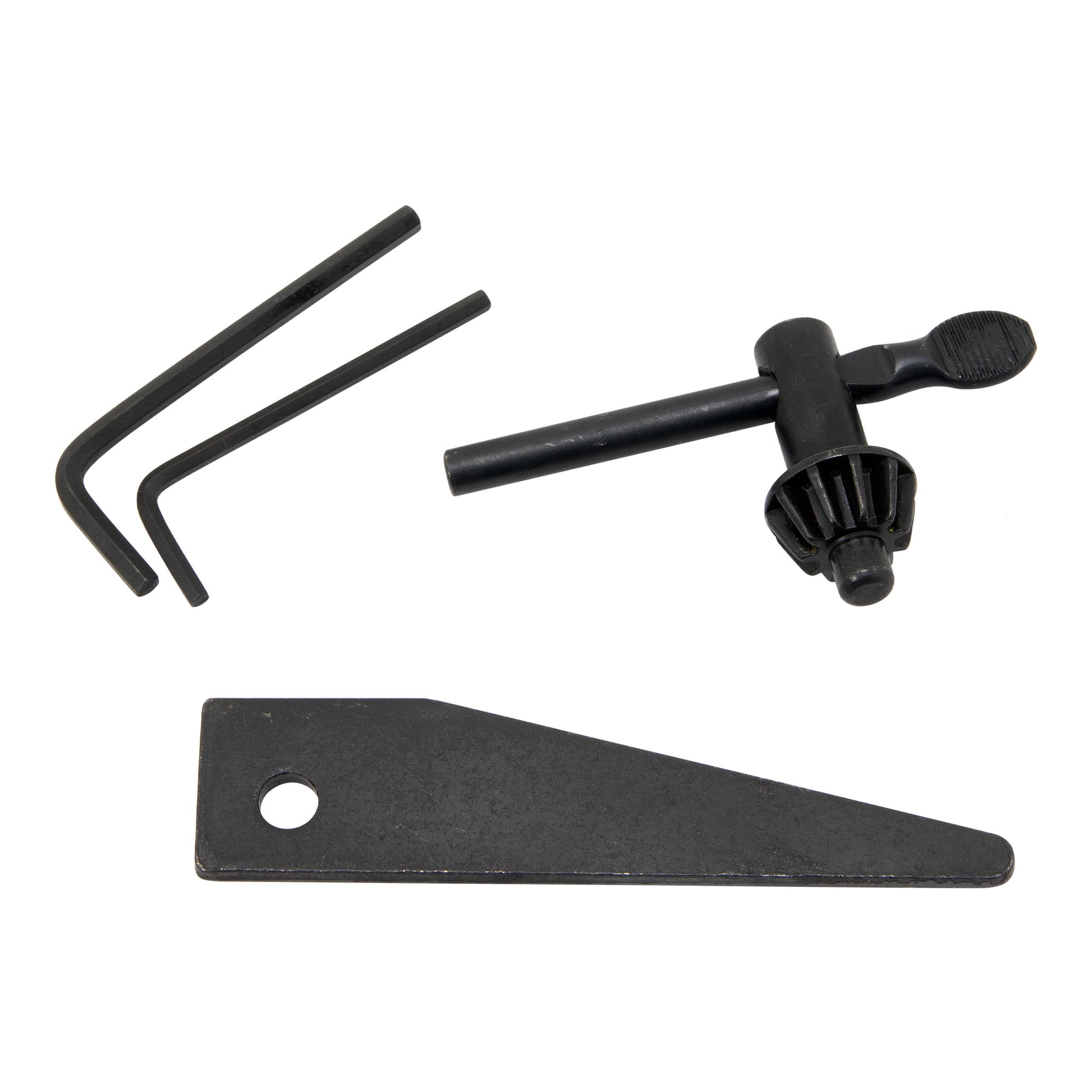

Included are the drill chuck with key, a drill chuck arbor, and a drift key for chuck removal from the spindle.

*NOTE: This is Rikon model 30-120.

Specifications

Motor Horsepower 1/2 HP
Motor Amps 7.5
Motor Volts 120V, 60Hz
Motor RPM 1,720
Swing 13”
Chuck Size 5/8”
Chuck Taper JT3
Drilling Capacity 5/8”
Spindle Travel 3-1/8”
Spindle Taper MT2
Head Rotates 360°
Head Tilts -
Speeds 16
Speed Range (RPM) 220 – 3,600
Quill Diameter 2-3/16”
Table Dimensions 11-3/16” (Round)
Table Tilts 90°
Table Rotates 360°
Maximum Chuck to Table 16-1/4”
Maximum Chuck to Base 24-5/8”
Column Diameter 2-7/8”
Overall Height 42”
Overall Base Size 17-3/4” x 10-1/2”
Overall Net Weight 102 lbs.
Warranty 5 Years
