DRO Display, Hard Wired
DRO Display, Hard Wired
SKU:6464
In stock
Couldn't load pickup availability
Key Features
Key Features
- DRO Display for hard wired DRO kits
- Made for HiTorque bench mills and lathes
- Comes with protective cover and can be used with cover on or off
- Three 9-Pin connection ports allow use in both 3-axis and 2-axis application
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

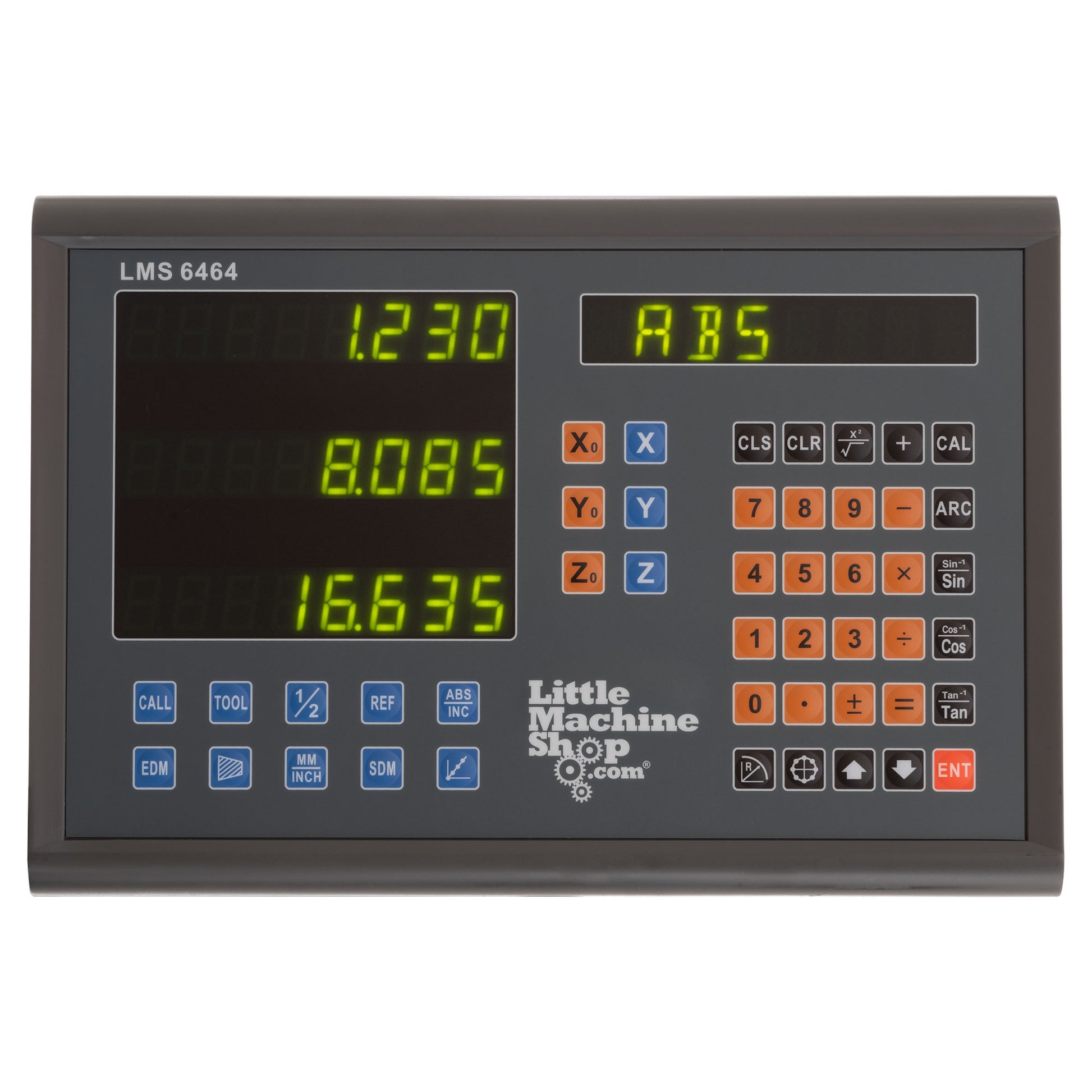

DRO display for the hard wired 2-axis and 3-axis DRO kits for HiTorque bench mills and bench lathes.

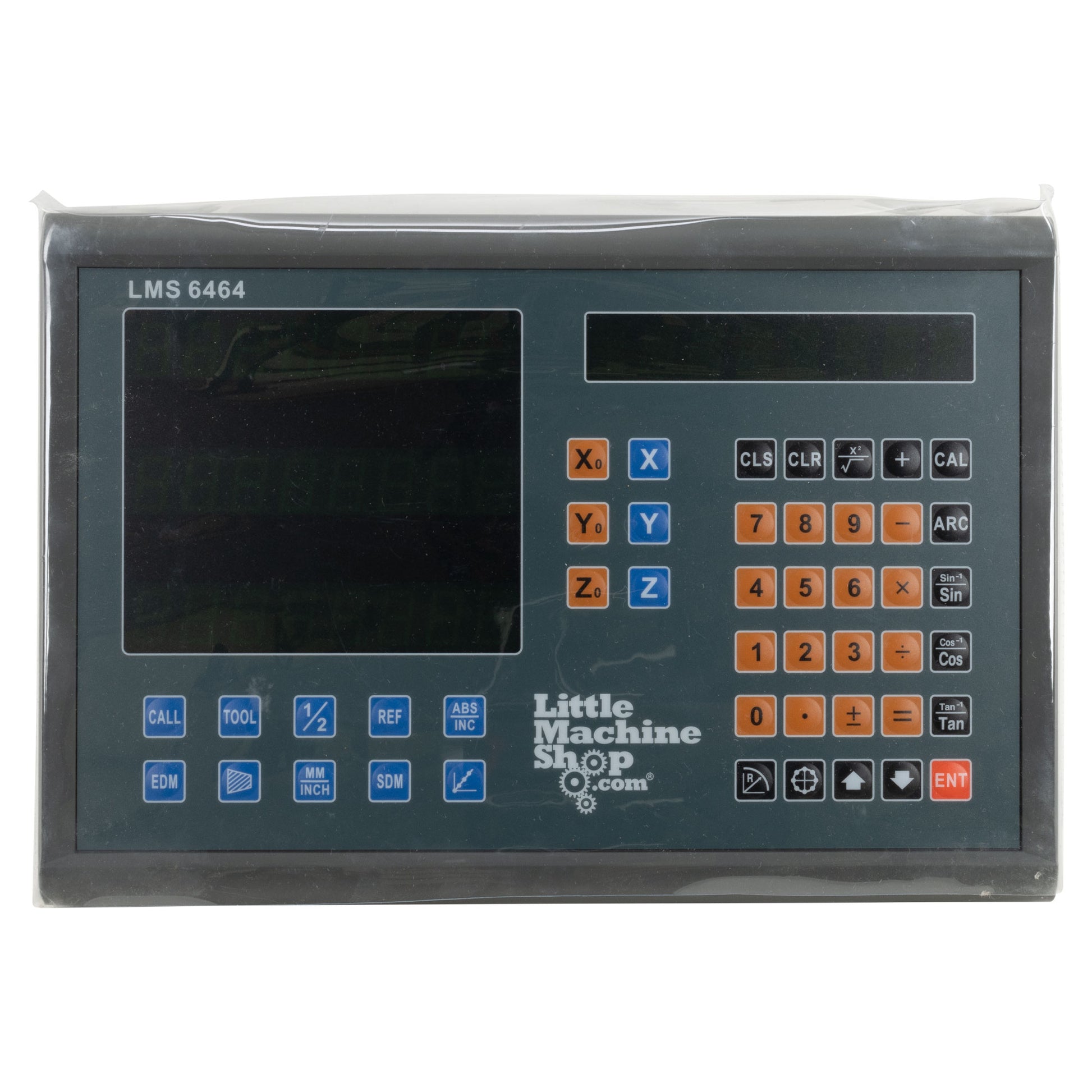

This display comes with a protective cover which can be kept on the display during use. It is designed to be used with either a vertical or horizontal stand for mill or lathe.

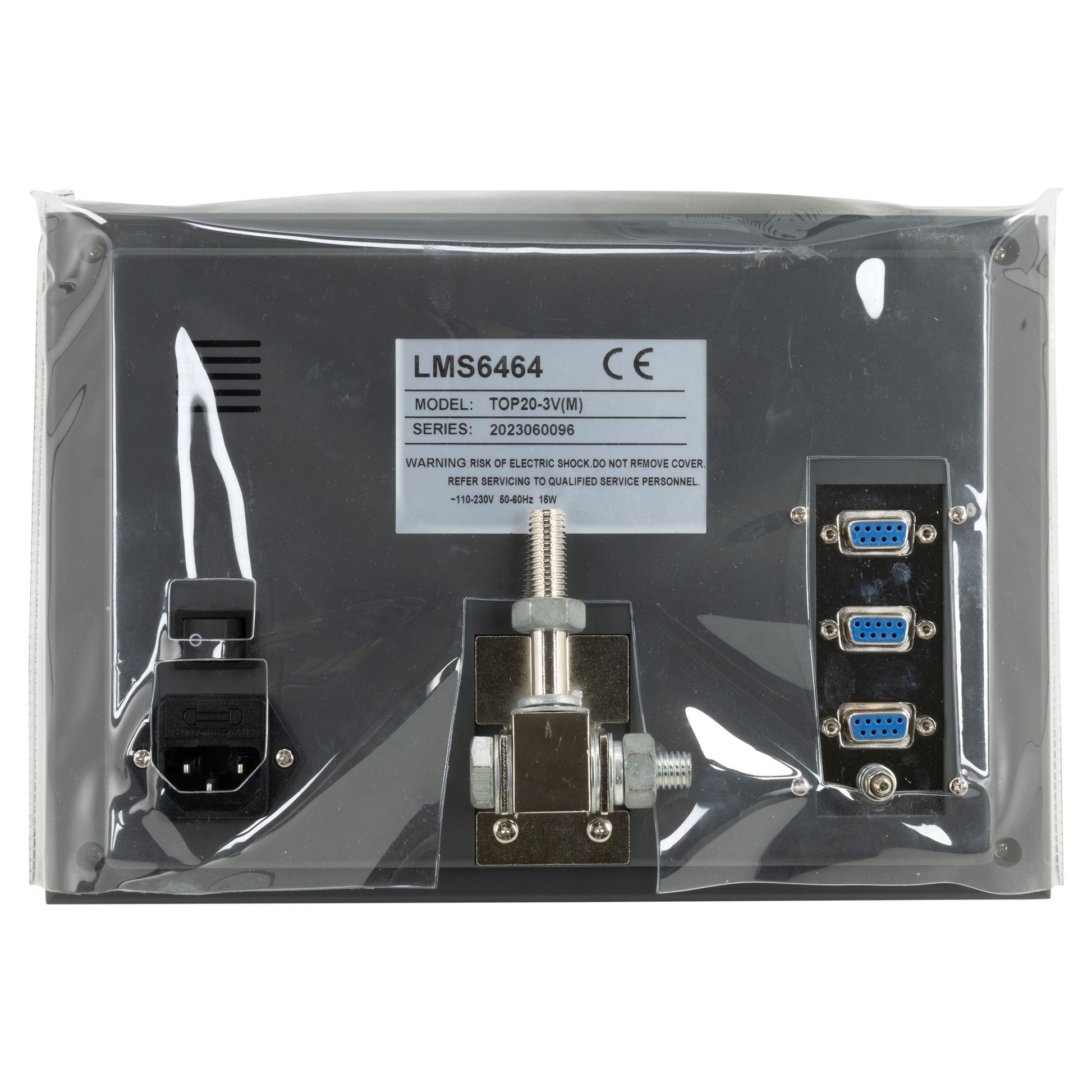

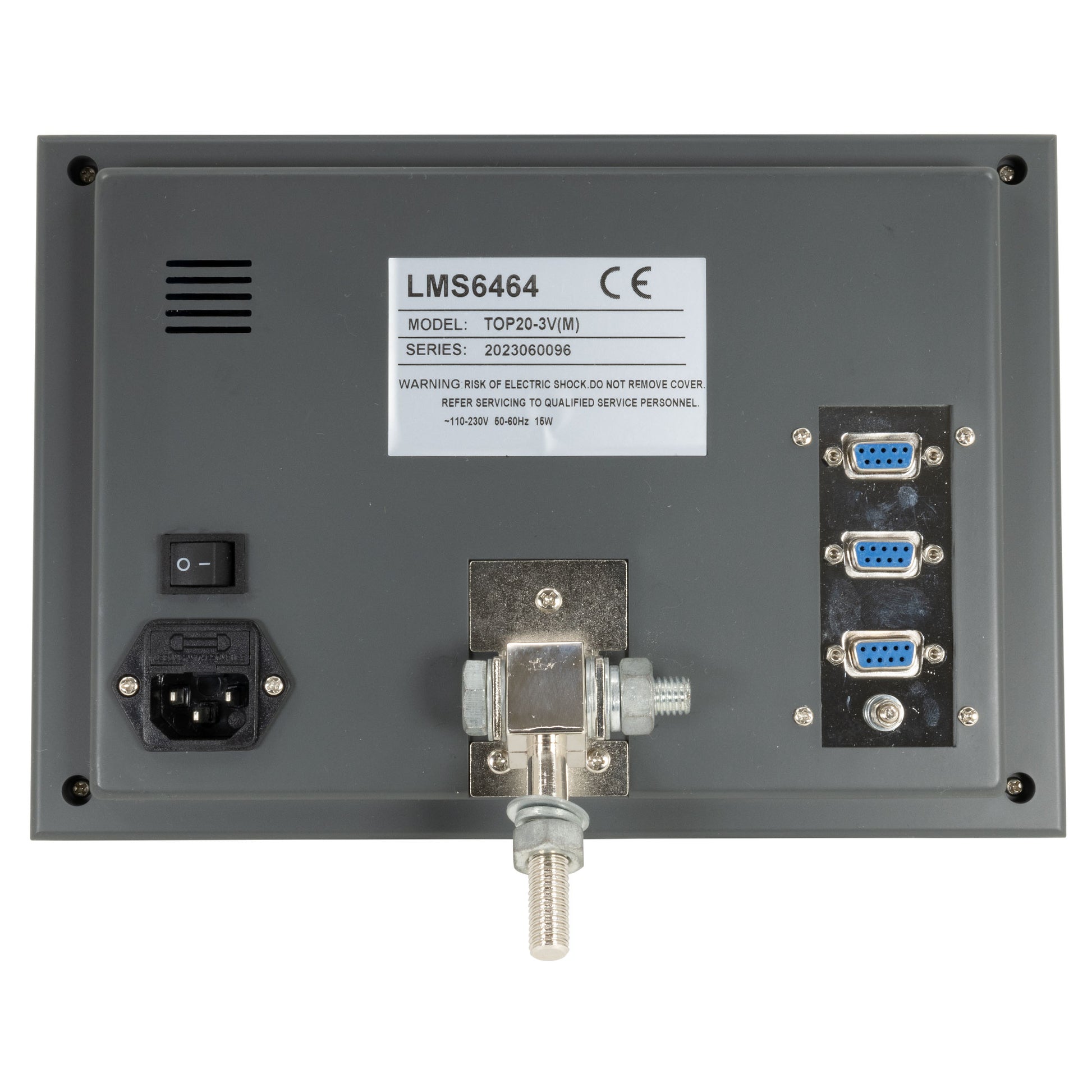

The display comes with three 9-Pin ports for constant connection to the machine.
See the Compatibility tab for products that work with this product.
Chris's Tips
Here is the Users Manual for the DRO display unit.
Specifications
Repeatability: 0.000" (0.005 mm)
Resolution: 0.000" (.005 mm)
Specified Accuracy: 0.002" / 1 m travel, 0.05 mm
Accuracy / Foot: 0.002" (.05 mm)
Accuracy / 100 Mm: 0.002" (.05 mm)
Scale Technology: Magnetic
Scale Protection: Coolant & dust resistant
Voltage: 120-240 V
Clear to Zero: YES
Direct Entry of Position: YES
Inch/mm Display: YES
Power Off Memory: YES
Reversible Count Direction: YES
Find Center: YES
Bolt Circles: YES
Bolt Lines: YES
Preset Points: YES
Tool Offsets: YES
Radius/Diameter: YES
Incremental/Absolute: YES
Calculator: NO
Arc Machining: NO
Linear Error Compensation: NO
Made In: China
Warranty: 1 years
Warranty: 1 year
Phone Tech Support: Free
