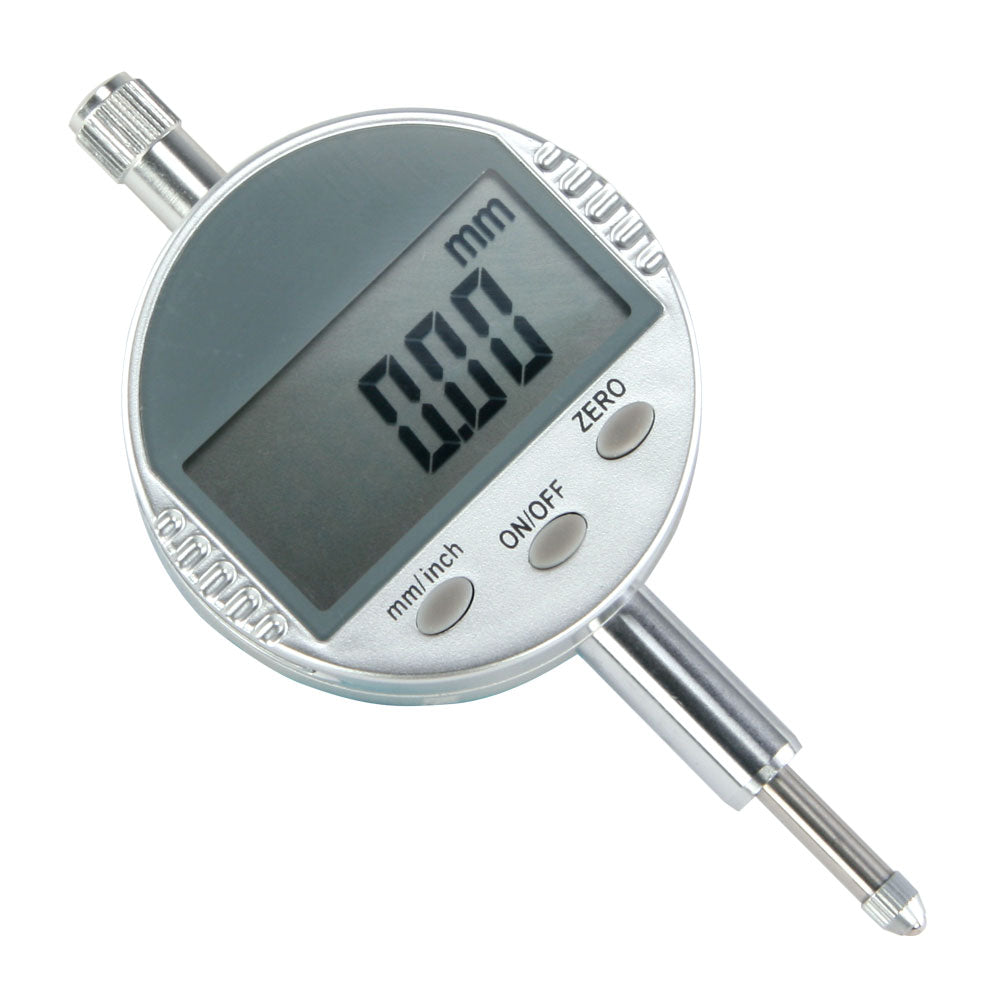

Electronic Digital Indicator, 0.5"
Electronic Digital Indicator, 0.5"
SKU:2876
Low stock
Couldn't load pickup availability
Key Features
Key Features
- Measurement range is 0-0.5"
- Resolution is 0.0005", accuracy is 0.0012"
- Measures in inches or mm
- Set to zero at any position
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

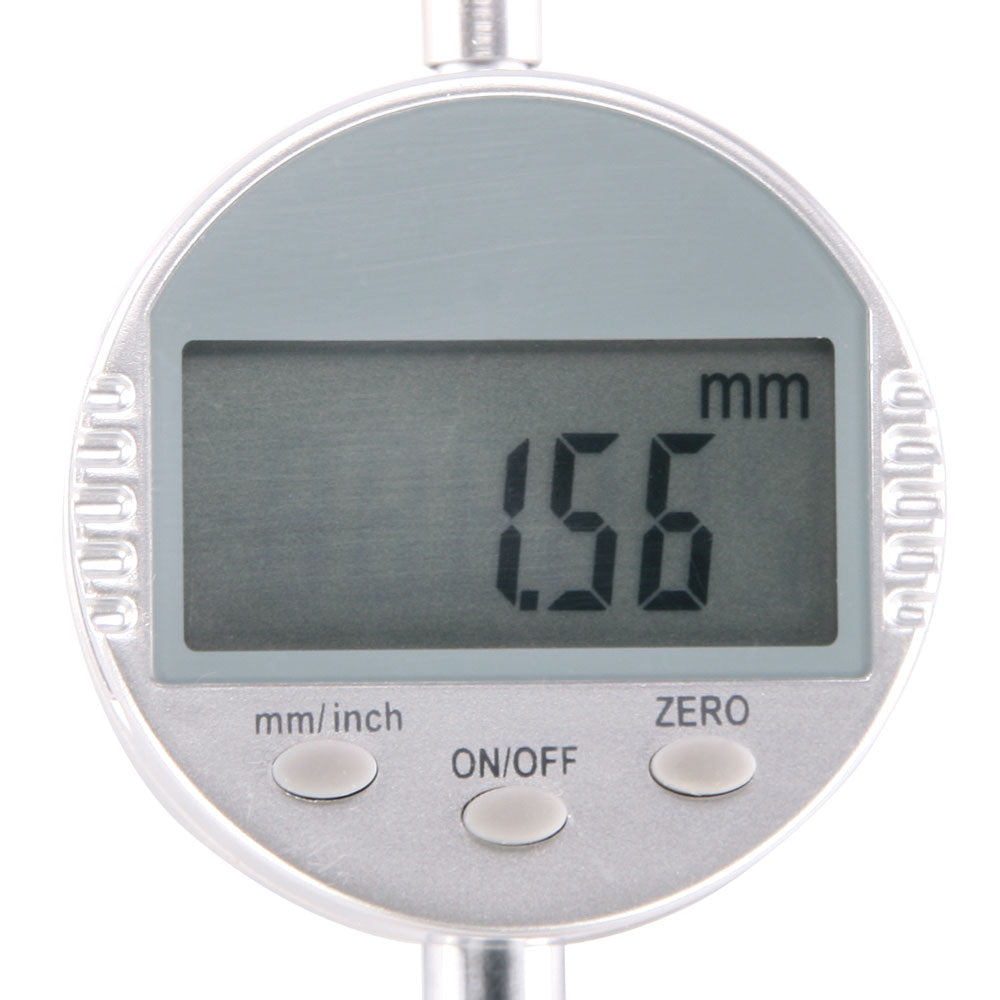

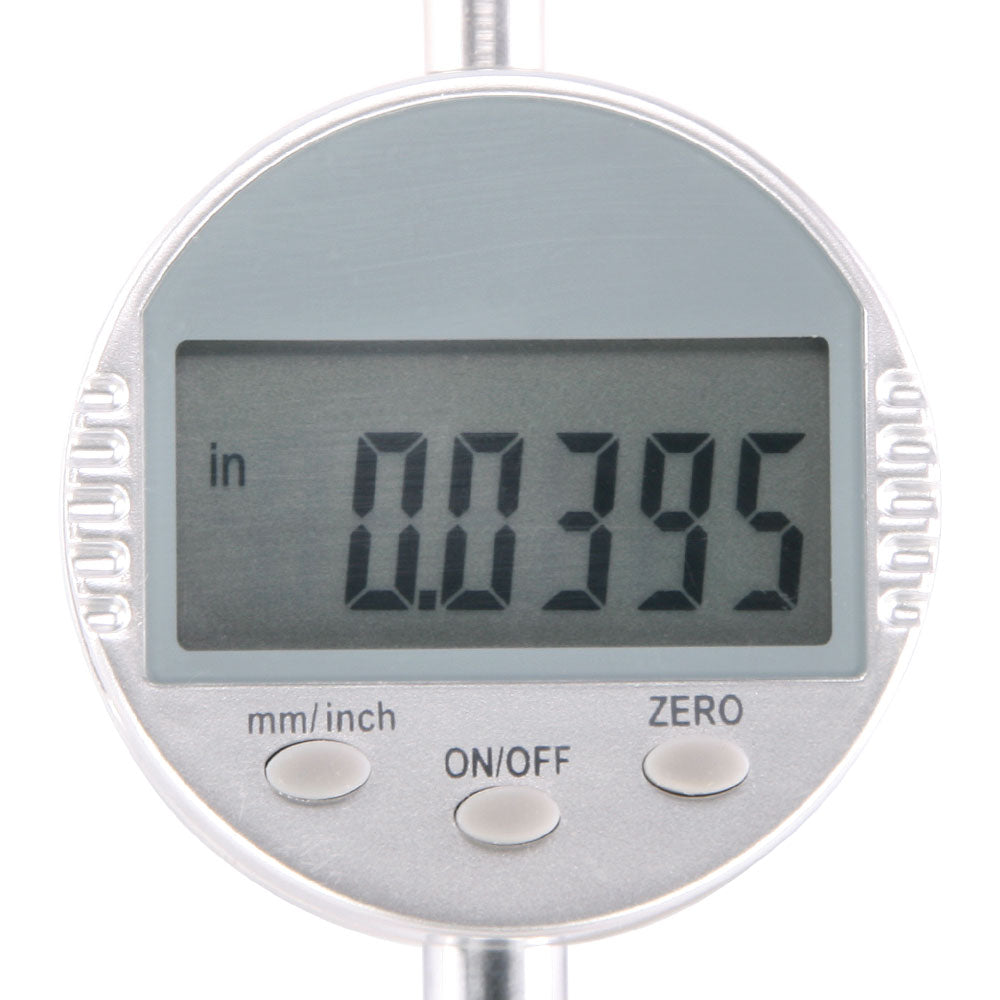

There are three buttons; OFF for power, ZERO/ON to zero the display, and IN/MM to switch between inches and millimeters. The digital display indicator turns on automatically when the plunger moves.
Pressing ZERO/ON zeros the electronic digital indicator at any position so you can make comparative readings between two parts.
Chris's Tips
AGD Groups define the size of the indicator.
| AGD Group | Face Diameter | |
| 0 | 1.00 - 1.38" | 25 - 35 mm |
| 1 | 1.38 - 2.00" | 35 - 50 mm |
| 2 | 2.00 - 2.38" | 50 - 60 mm |
| 3 | 2.38 - 3.00" | 60 - 75 mm |
| 4 | 3.00 - 3.75" | 75 - 95 mm |
Inch indicators have a 0.375" diameter shank with a #4-48 thread for tips. Metric indicators have an 8 mm diameter shank with an M2.5 thread.
Specifications
Range: 0" - 0.5" (0.000 mm - 12.700 mm)
Resolution: 0.0005" (0.013 mm)
Accuracy: 0.001" (0.025 mm)
Type: Lug backing
Dial Face: Digital in/mm
