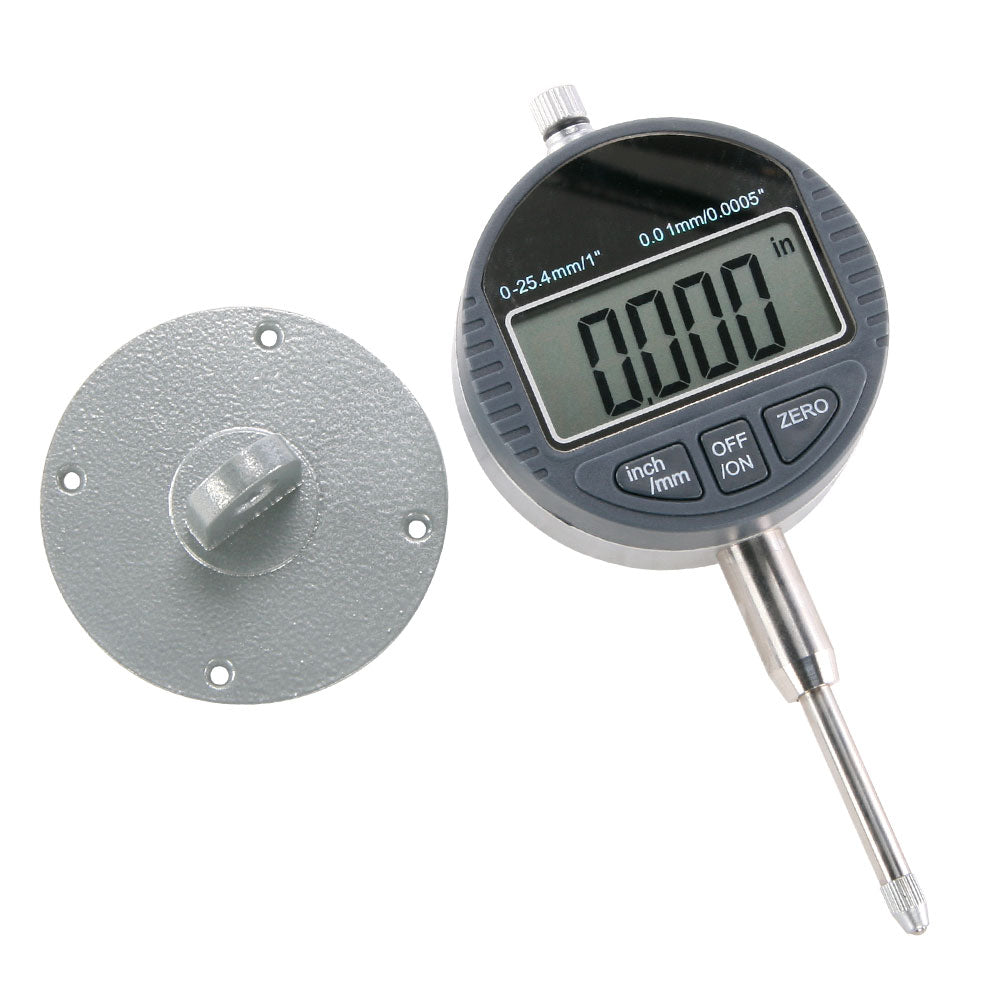

Electronic Digital Indicator, 1"
Electronic Digital Indicator, 1"
SKU:2521
In stock
Couldn't load pickup availability
Key Features
Key Features
- Measurement range is 0-1"
- Resolution is 0.0005", accuracy is 0.0012"
- Measures in inches or mm
- Set to zero at any position
- Relative and absolute measurement
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
This is an AGD Group 2 indicator with a 0.375" diameter shank and a #4-48 thread for tips.
There are three buttons; ON/OFF for power, RESET to zero the display, and R/A to switch between absolute and relative measurement.
Pressing R/A zeros the indicator at any position so you can make comparative readings between two parts. The absolute measurement is not lost, and is displayed by pressing R/A again.
Chris's Tips
AGD Groups define the size of the indicator.
| AGD Group | Face Diameter | |
| 0 | 1.00 - 1.38" | 25 - 35 mm |
| 1 | 1.38 - 2.00" | 35 - 50 mm |
| 2 | 2.00 - 2.38" | 50 - 60 mm |
| 3 | 2.38 - 3.00" | 60 - 75 mm |
| 4 | 3.00 - 3.75" | 75 - 95 mm |
Inch indicators have a 0.375" diameter shank with a #4-48 thread for tips. Metric indicators have an 8 mm diameter shank with an M2.5 thread.
Specifications
Range: 0" - 1" (0.000 mm - 25.400 mm)
Resolution: 0.0005" (0.013 mm)
A.G.D. Group: 2
Face Diameter: 2.23" (56.642 mm)
Shank Size: 0.375" (9.525 mm)
Thread Tip: #4-48
Accuracy: 0.001" (0.025 mm)
Type: Flat Back
Dial Face: Digital in/mm
