Faceplate, HiTorque 8.5x20 Bench Lathe

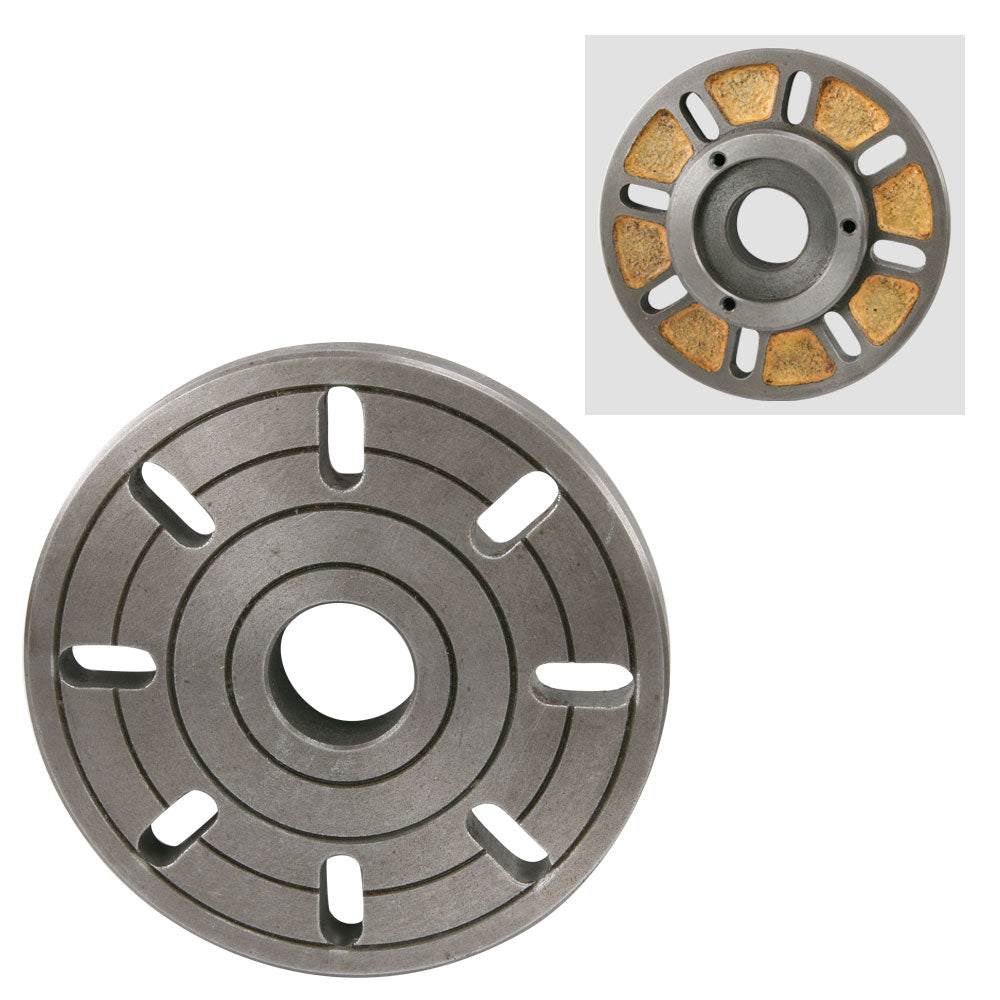

The faceplate is 7.1" (180 mm) in diameter and has 8 slots for mounting work. The faceplate is made of cast iron.

This faceplate has a 72 mm registration recess. It requires 3 M8 x 25 studs. It mounts in place of a 100 mm (4") 3-jaw lathe chuck.

See the Compatibility tab for products that work with this product.

*NOTE: Bench lathe faceplate that fits SIEG C4, SC4 and LittleMachineshop.com HiTorque 8.5x20 bench lathes.

Here is how the clamping kit is used.

ISSUES WITH CHUCK GUARD? If you mount the faceplate on a mini lathe with a guard over the chuck, you may have to remove the guard and switch. Be careful; you will be assuming the risk that lathe operators have worked with for a couple hundred years.

This product was designed for machines manufactured by SIEG, including those listed below. We have added compatibility for other non-SIEG machines when a “fit” can be verified.

If your machine is not listed, we cannot verify compatibility but encourage you to contact us. With additional information we may be able to help you find a solution.

• LittleMachineShop.com 3536 HiTorque 8.5x16 Bench Lathe
• SIEG C4 8.5x16 Bench Lathe
• SIEG SC4 8.5x16 Bench Lathe
• Travers Tools OT218410 OTMT 8x16 Bench Lathe
• LittleMachineShop.com 3540 HiTorque 8.5x20 Bench Lathe
• LittleMachineShop.com 3595 HiTorque 8.5x20 Deluxe Bench Lathe
• LittleMachineShop.com 7500 HiTorque 8.5x20 Bench Lathe
• LittleMachineShop.com 7550 HiTorque 8.5x20 Deluxe Bench Lathe
• LittleMachineShop.com 7600 HiTorque 9x20 Bench Lathe
• LittleMachineShop.com 7650 HiTorque 9x20 Deluxe Bench Lathe
