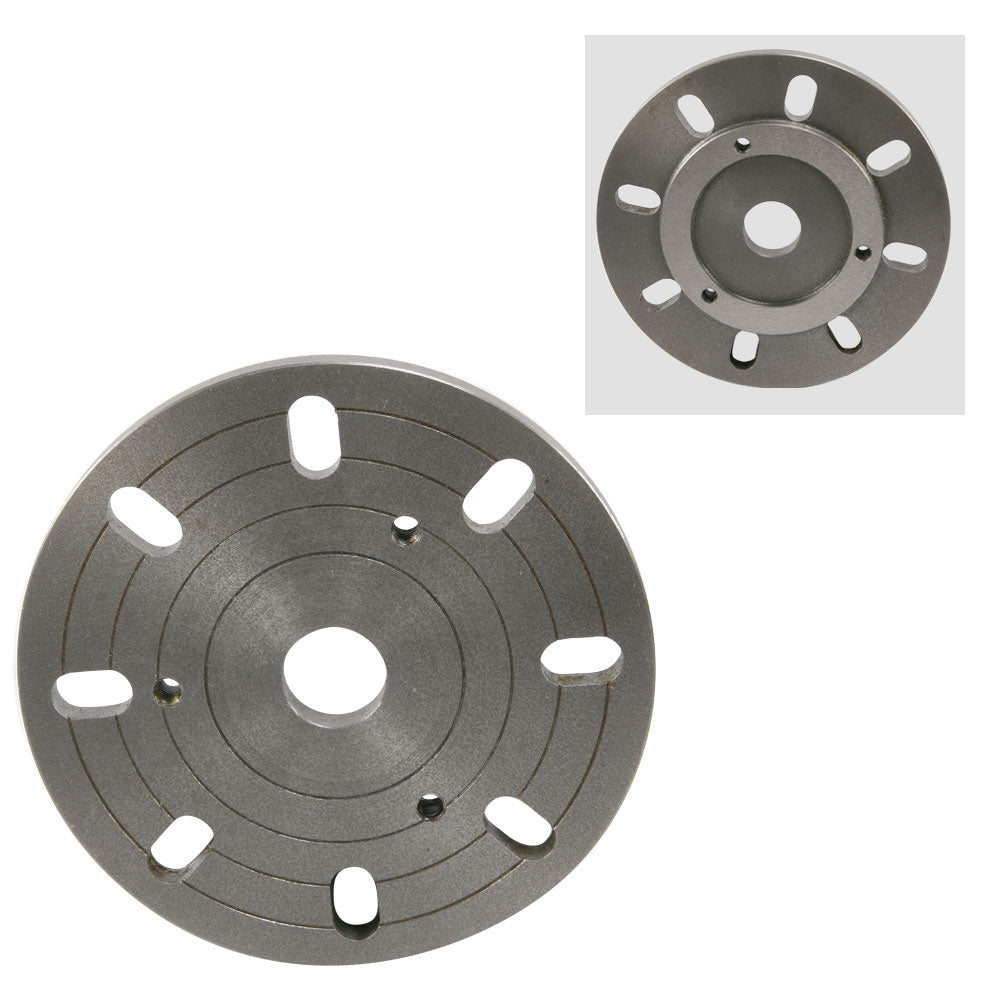

Faceplate, Mini Lathe, 100 mm Flange

Faceplate, Mini Lathe, 100 mm Flange

$42.95
$42.95
Sale Sold out
Shipping calculated at checkout.

In stock

5123 (A09 - 03)

Key Features

  • 160 mm Diameter
  • 8 Slots to Mount Work
  • 72 mm Registration Recess
  • Requires 3 M8 x 25 Studs
  • Compatible with Lathes with 100 mm Flange Chuck Mount

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

The faceplate is 6.29" (160 mm) in diameter and has 8 slots for mounting work. The faceplate is made of cast iron.

This faceplate has a 72 mm registration recess. It requires 3 M8 x 25 studs. It mounts in place of a 100 mm (4") 3-jaw lathe chuck.

Chris' Tips

Here is how the clamping kit is used.

Clamping Kit for Faceplate

ISSUES WITH CHUCK GUARD? If you mount the faceplate on a mini lathe with a guard over the chuck, you may have to remove the guard and switch. Be careful; you will be assuming the risk that lathe operators have worked with for a couple hundred years.
