• Feed Screw, Z-Axis, HiTorque Large Bench Mill
1 1

Feed Screw, Z-Axis Handwheel, HiTorque Large Bench Mill

Feed Screw, Z-Axis Handwheel, HiTorque Large Bench Mill

$9.95
$9.95
Sale Sold out
Shipping calculated at checkout.

Low stock

6235 (B02 - 07)

Key Features

  • Feed screw, Z-axis
  • HiTorque large bench mill (SX3.5)
  • Supports z-axis motion on handwheel driven drive
*Will this fit my machine? Check our Replacement Parts

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

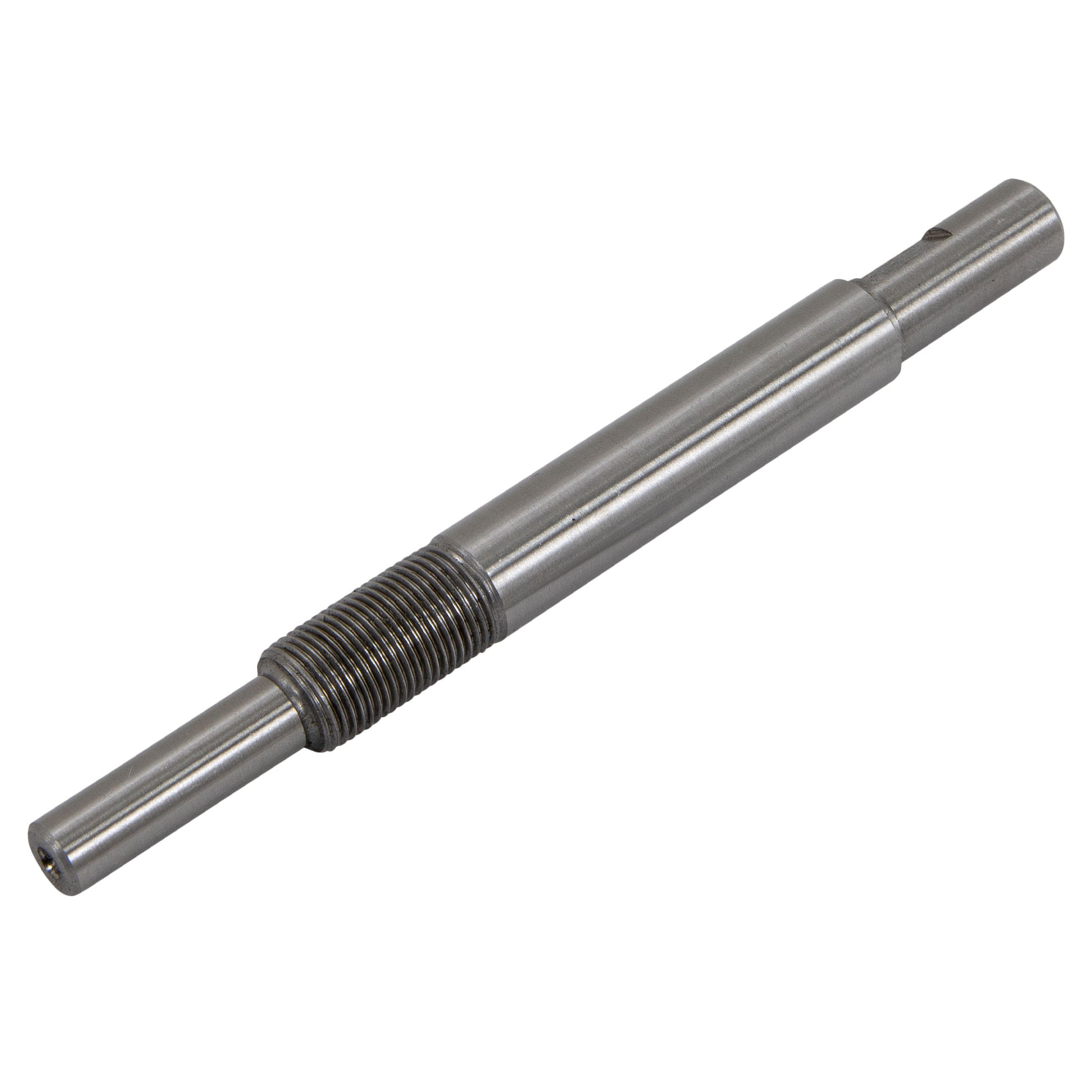

Z-axis feed screw for the HiTorque large bench mill (SX3.5). This screw is found on the large bench mills with a z-axis controlled by a handwheel.
Overall length 126mm, main shaft 12mm. Diameter of small side 8mm and large side 10mm. Threaded section 21mm when measured like a bolt.
