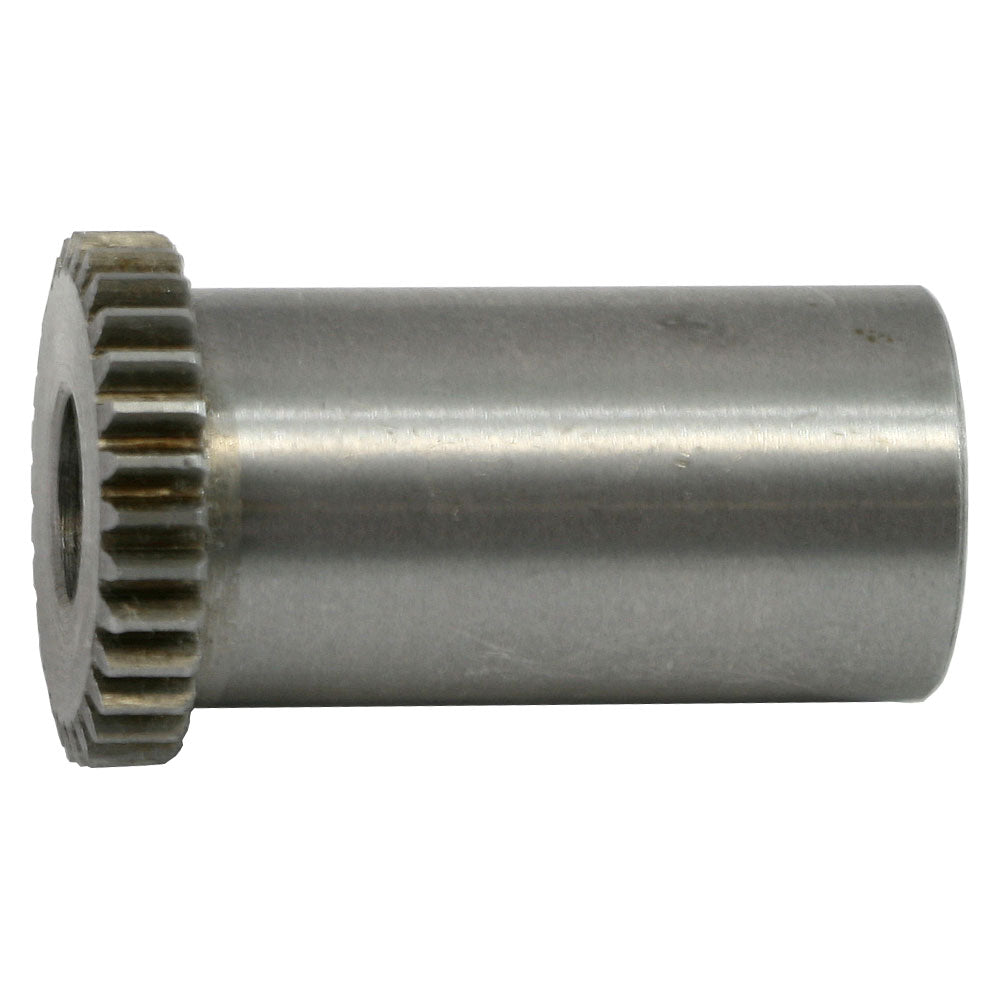

Gear, Carriage Handwheel, 30 Teeth, Bench Lathe
Gear, Carriage Handwheel, 30 Teeth, Bench Lathe
SKU:5518
Regular price
$8.86 USD
Regular price
Sale price
$8.86 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock
Couldn't load pickup availability
Key Features
Key Features
- Carriage handwheel gear for bench lathe
- Bore 10 mm, diameter 20 mm
- 30 Teeth, gear width 6 mm
- Overall length 42 mm
- Length when measures like a nut 36 mm
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
Part # 324 on SC4 parts diagram (SC4-324)
Shaft on the bench lathe that holds the main handwheel. The overall length is 42 mm but 36 mm when measured like a nut. The bore is 10 mm and diameter is 20 mm. The gear width is 6 mm and has 30 teeth.
This gear fits SIEG SC4 class of bench lathes including the HiTorque bench lathes.
