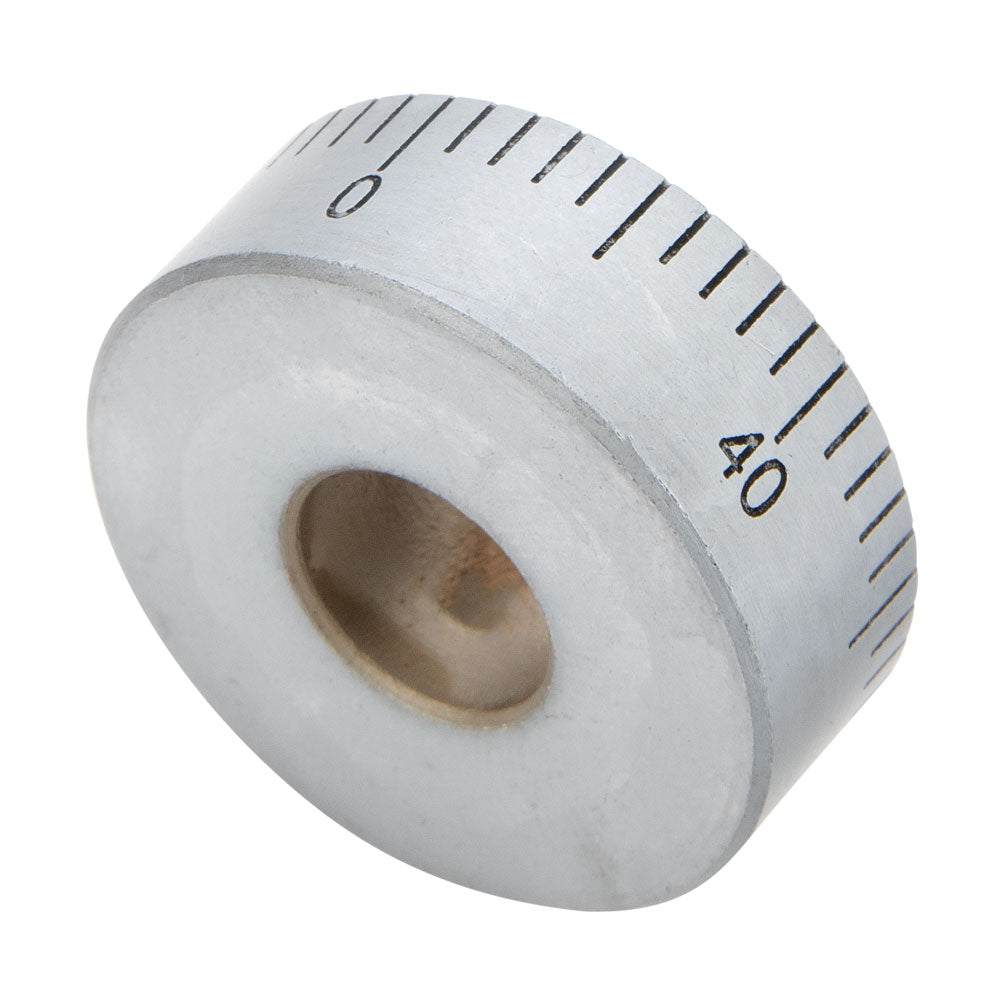

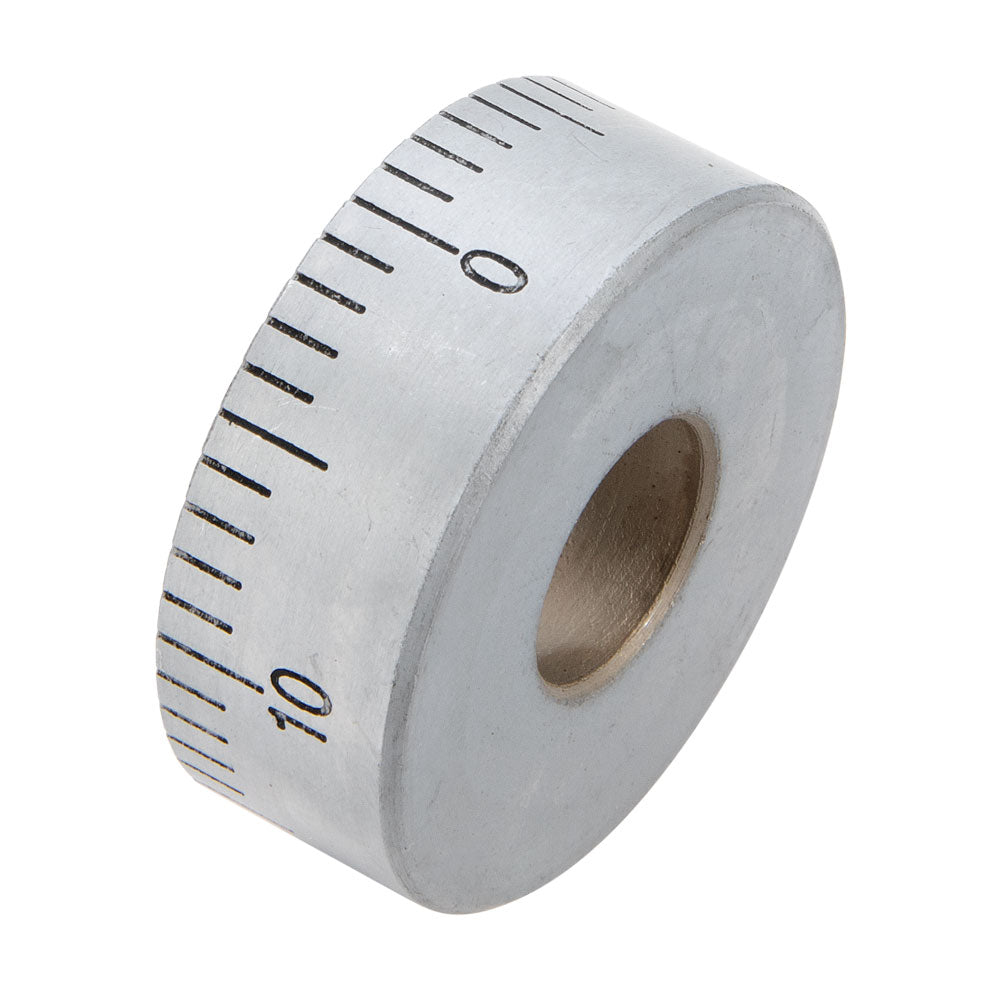

Graduated Dial, 50 Divisions, 20 TPI Mini Lathe

Graduated Dial, 50 Divisions, 20 TPI Mini Lathe

1947

$14.95 USD
$14.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • Graduated dial, 50 divisions (20 TPI)
  • Fits cross slide and compound rest on 20 TPI lathes
  • OD: 33 mm
  • ID: 12 mm
  • Width: 12 mm
*Will this fit my machine? Check our Replacement Parts

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

This graduated dial is used on the cross slide and the compound rest. It works with screws with 20 threads per inch (0.050" per revolution).

The dial is 33 mm OD, 12 mm ID and 12 mm wide.

Chris's Tips

Here are the dimension of the various dials we have.





ID

OD

Width

1385

Dial, 40 Divisions

12 mm (0.47")

33 mm (1.30")

12.0 mm (0.47")

1483

Dial, 62.5 Divisions

20 mm (0.79")

35 mm (1.38")

11.2 mm (0.44")

1517

Dial, Z-Axis Fine Feed

20 mm (0.79")

29 mm (1.14")

9.0 mm (0.35")

1763

Dial, 50 Divisions

20 mm (0.79")

35 mm (1.38")

11.2 mm (0.44")

1947

Dial, 50 Divisions

12 mm (0.47")

33 mm (1.30")

12.0 mm (0.47")
The Z-Axis Fine Feed Dial has a knurled ridge that is 33 mm in diameter and 1.7 mm wide.
