Graduated Dial, 50 Divisions, 20 TPI Mini Mill
Graduated Dial, 50 Divisions, 20 TPI Mini Mill
Regular price
$13.69
Regular price
Sale price
$13.69
Unit price
/
per
Shipping calculated at checkout.
Out of stock
SKU:1763Shelf Location: (B08 - 08)
Couldn't load pickup availability
Key Features
Key Features

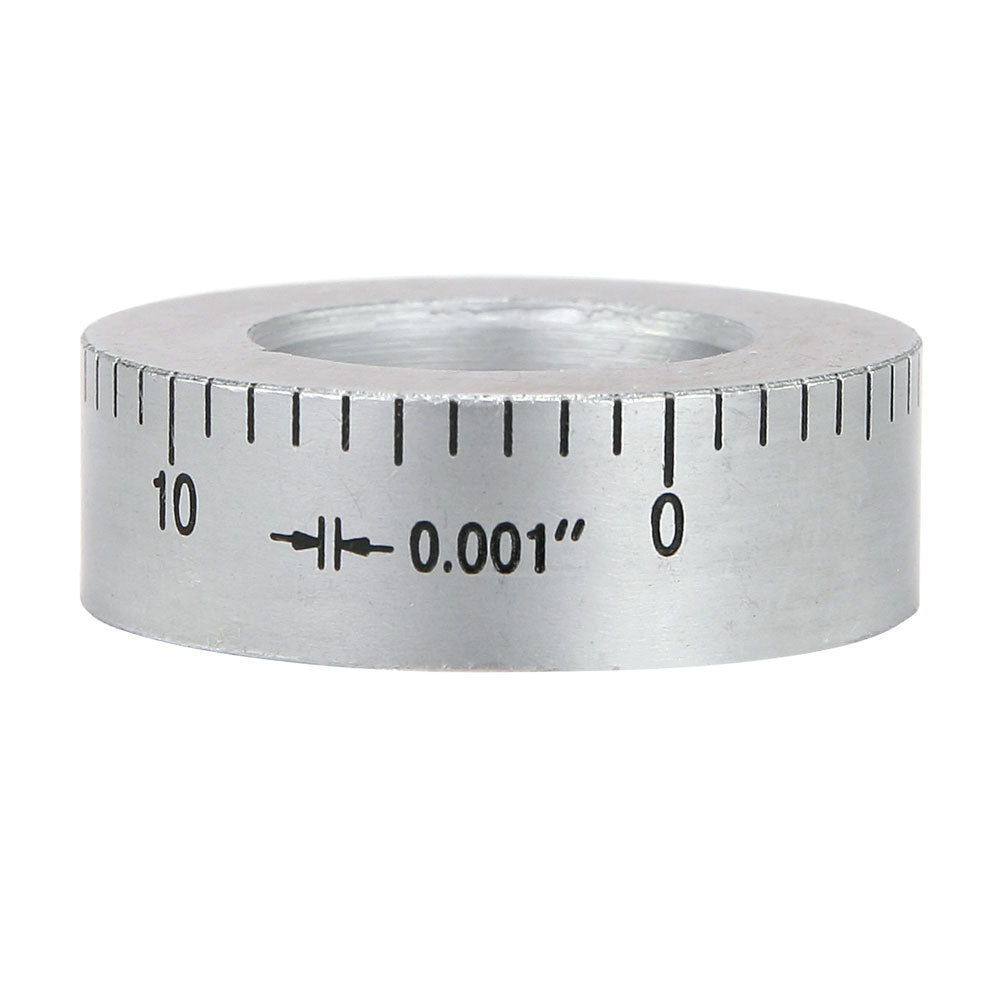

- Graduated dial, 50 divisions (20 TPI)
- X- and Y-axes 20 TPI mini mills
- OD: 35 mm
- ID: 20 mm
- Width: 11.2 mm
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

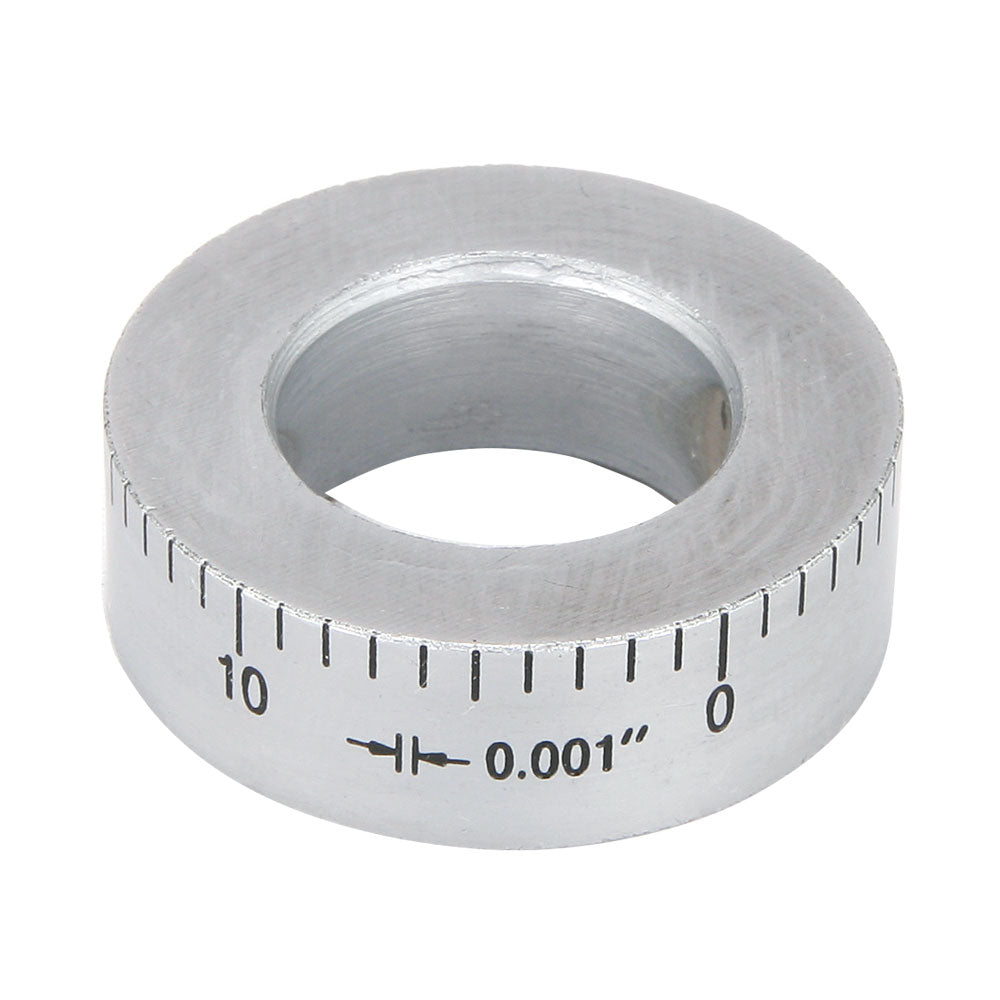

This dial is used on both the X- and Y-axes of the Micro-Mark mini mill.
The dial is 35 mm OD, 20 mm ID, and 11.2 mm wide.
Chris' Tips
Here are the dimension of the various dials we have.
The Z-Axis Fine Feed Dial has a knurled ridge that is 33 mm in diameter and 1.7 mm wide.
|
|
|
ID |
OD |
Width |
|
1385 |
Dial, 40 Divisions |
12 mm (0.47") |
33 mm (1.30") |
12.0 mm (0.47") |
|
1483 |
Dial, 62.5 Divisions |
20 mm (0.79") |
35 mm (1.38") |
11.2 mm (0.44") |
|
1517 |
Dial, Z-Axis Fine Feed |
20 mm (0.79") |
29 mm (1.14") |
9.0 mm (0.35") |
|
1763 |
Dial, 50 Divisions |
20 mm (0.79") |
35 mm (1.38") |
11.2 mm (0.44") |
|
1947 |
Dial, 50 Divisions |
12 mm (0.47") |
33 mm (1.30") |
12.0 mm (0.47") |
