• Graduated Dial, 50 Divisions, X and Y-Axis, HiTorque Deluxe Bench Mill
1 1

Graduated Dial, 50 Divisions, X and Y-Axis, HiTorque Deluxe Bench Mill

Graduated Dial, 50 Divisions, X and Y-Axis, HiTorque Deluxe Bench Mill

$19.95
$19.95
Sale Sold out
Shipping calculated at checkout.

In stock

6265 (B05 - 07)

Key Features

  • Graduated dial, 50 divisions
  • X and Y-axis HiTorque Deluxe Bench Mill
  • OD: 46 mm
  • ID: 36 mm
  • Width: 16 mm
*Will this fit my machine? Check our Replacement Parts

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

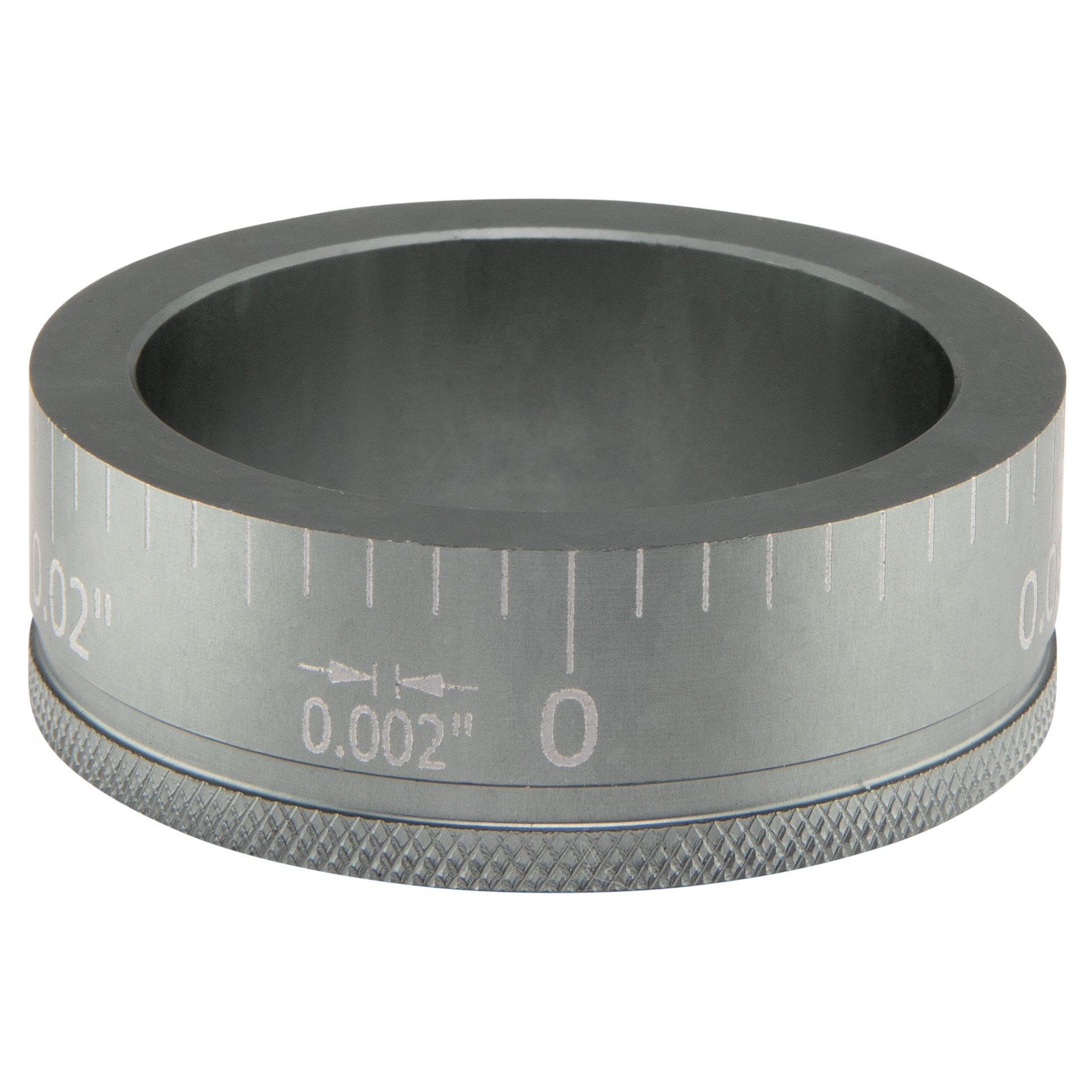

This is the graduated dial on the X & Y-axis of the HiTorque Bench Mill, Deluxe model 6550 and SIEG SX2.7L bench mills.
The dial has a gray finish and 50 divisions. For Z-axis graduated dial, see part #2077.

Specifications

Outside Diameter: 1.811" (46 mm)

Inside Diameter: 1.417" (36 mm)

Width: 0.630" (16 mm)
