Graduated Dial, Z-Axis Fine Feed, Mini Mill
Graduated Dial, Z-Axis Fine Feed, Mini Mill
SKU:1517
Regular price
$13.27 USD
Regular price
Sale price
$13.27 USD
Unit price
/
per
Shipping calculated at checkout.
In stock
Couldn't load pickup availability
Notify Me
Notify me when items are back in stock.
Key Features
Key Features
- Graduated dial, 60 divisions
- Z-axis mini mill
- OD: 30 mm
- ID: 20 mm
- Width: 9 mm
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

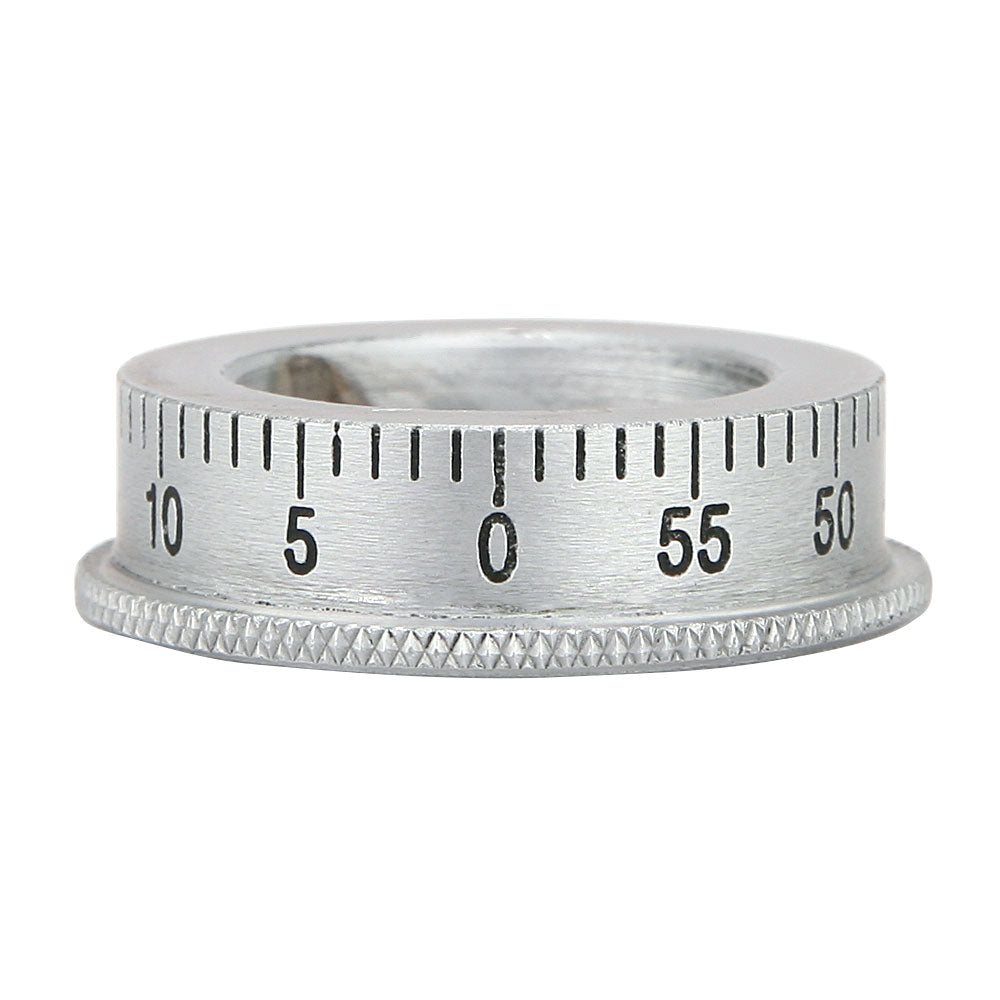

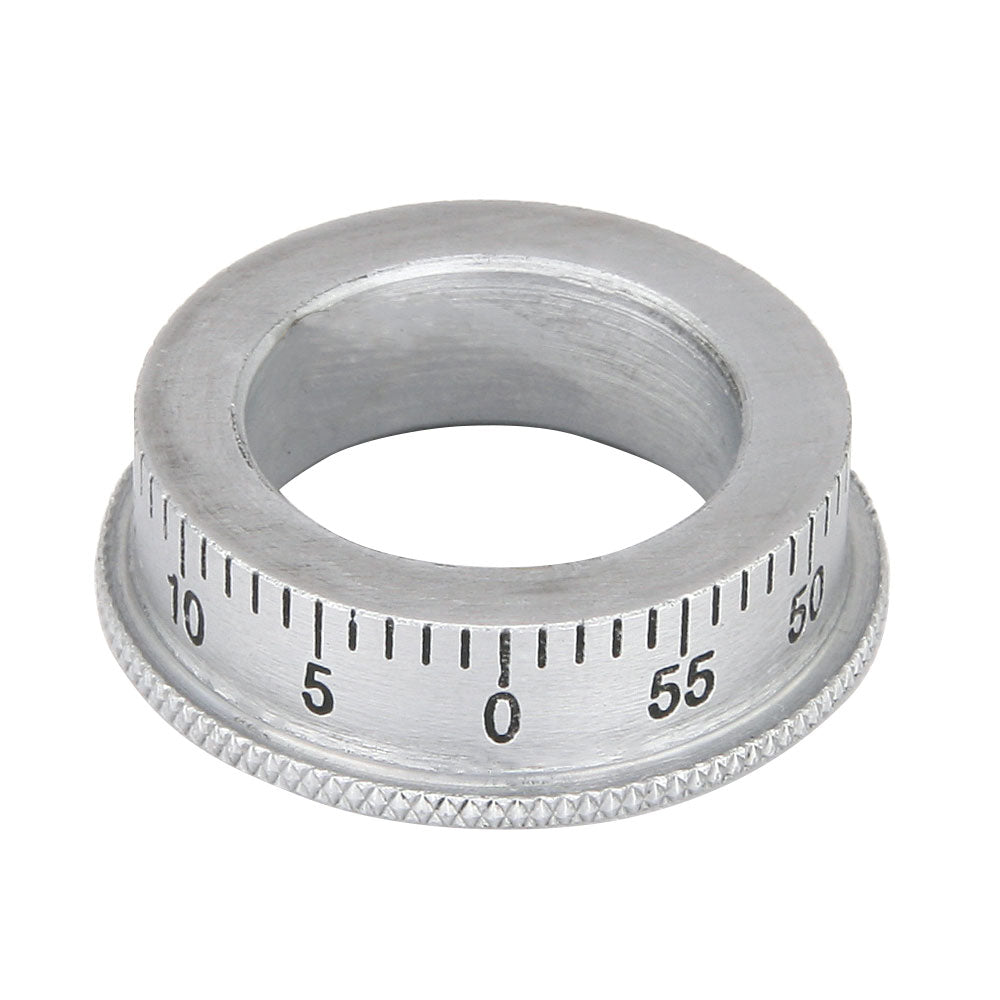

This is the graduated dial on the Z-axis fine feed on the mini mill.
The dial is 30 mm OD, 20 mm ID, and 9 mm wide.
Chris's Tips
Here are the dimension of the various dials we have.
The Z-Axis Fine Feed Dial has a knurled ridge that is 33 mm in diameter and 1.7 mm wide.
|
|
|
ID |
OD |
Width |
|
1385 |
Dial, 40 Divisions |
12 mm (0.47") |
33 mm (1.30") |
12.0 mm (0.47") |
|
1483 |
Dial, 62.5 Divisions |
20 mm (0.79") |
35 mm (1.38") |
11.2 mm (0.44") |
|
1517 |
Dial, Z-Axis Fine Feed |
20 mm (0.79") |
29 mm (1.14") |
9.0 mm (0.35") |
|
1763 |
Dial, 50 Divisions |
20 mm (0.79") |
35 mm (1.38") |
11.2 mm (0.44") |
|
1947 |
Dial, 50 Divisions |
12 mm (0.47") |
33 mm (1.30") |
12.0 mm (0.47") |
