Graduated Scale, Z-Axis Quill Down Feed, Micro Mill

Graduated Scale, Z-Axis Quill Down Feed, Micro Mill

2159

$8.28 USD
$8.28 USD
Sale Sold out
Shipping calculated at checkout.

Low stock

Key Features

  • Graduated scale for micro mill quill
  • Graduations 0.05"
  • Range of graduations 0-22
  • Set screw M5x8
*Will this fit my machine? Check our Replacement Parts

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

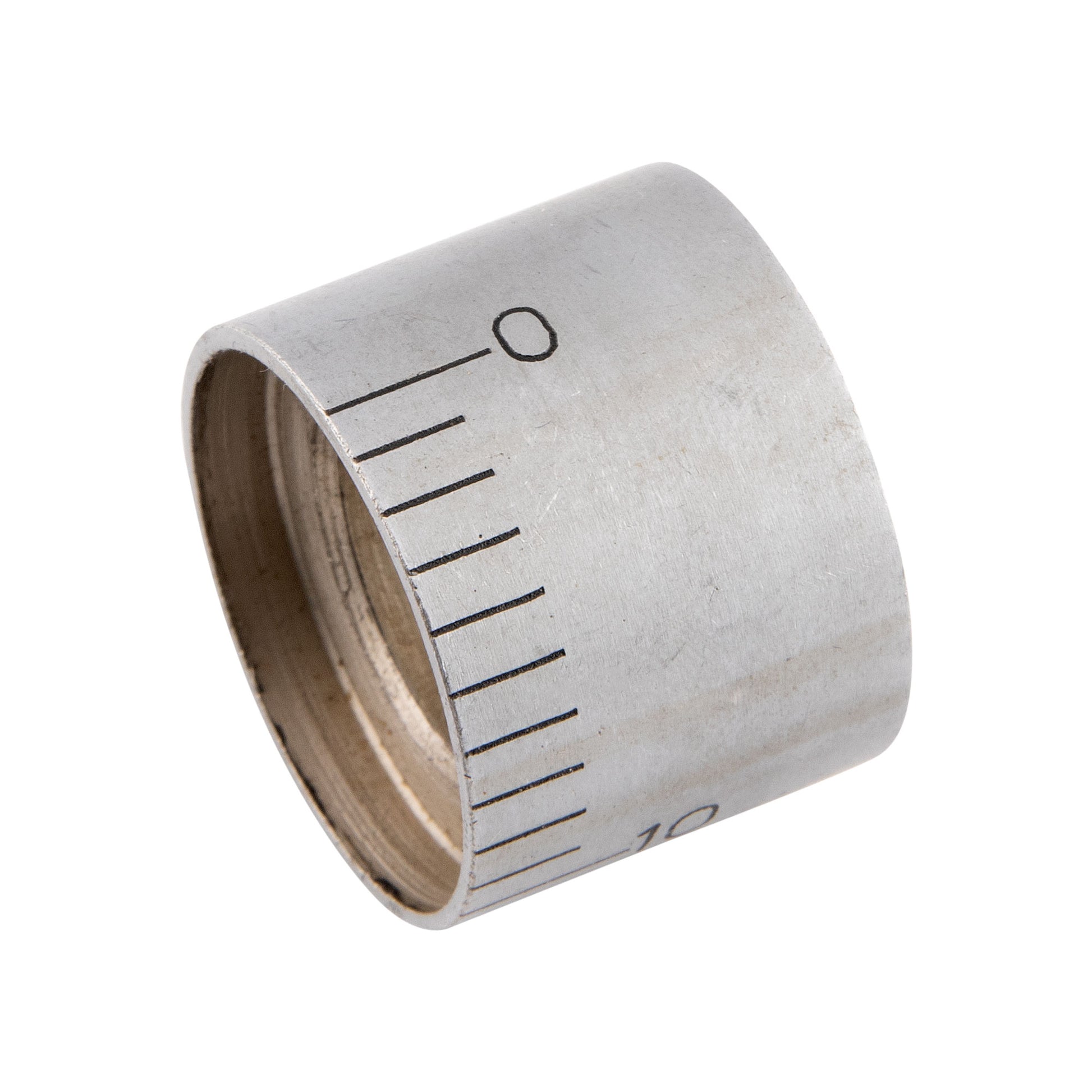

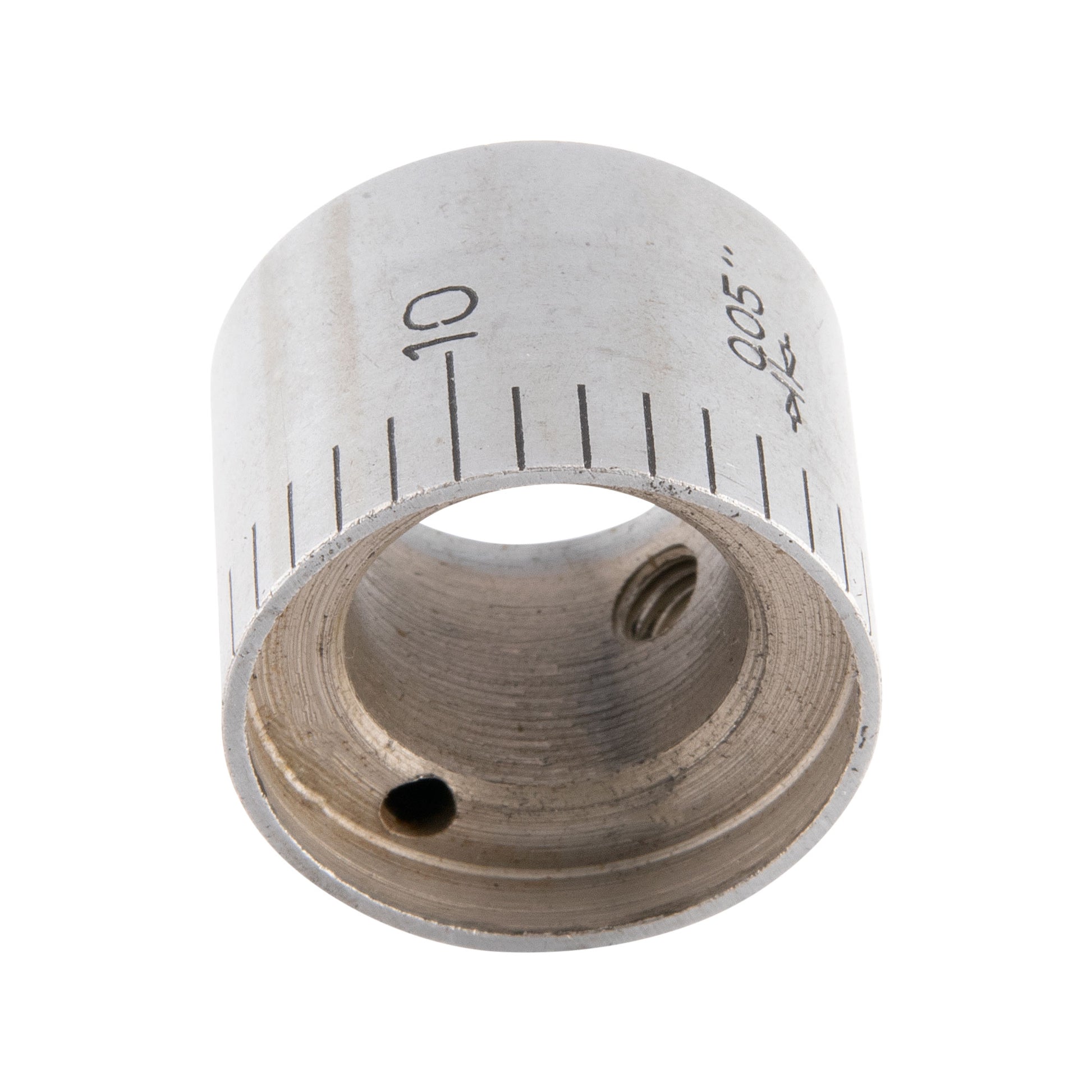

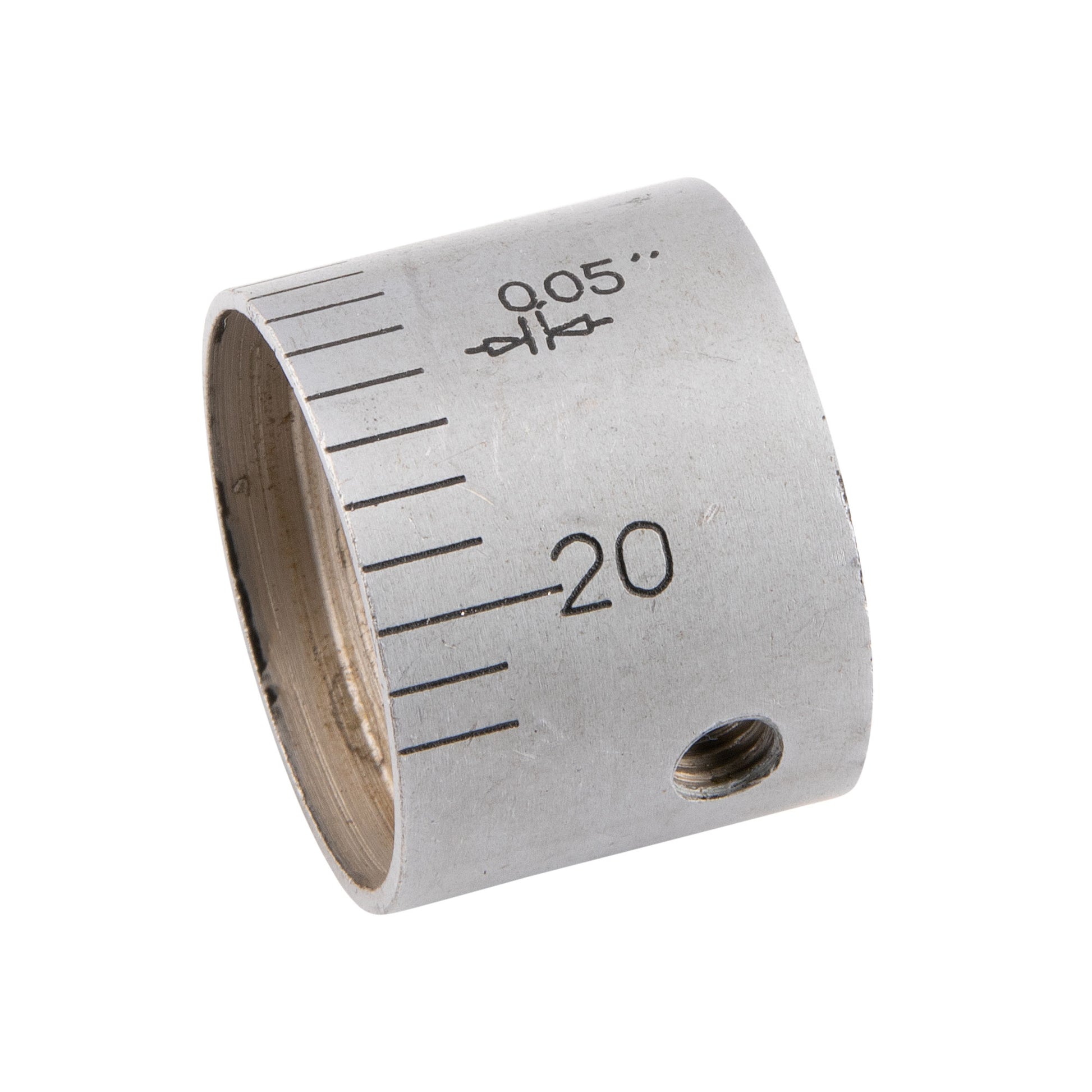

Graduated scale for the quill of the micro mill (z-axis down feed).
The graduations are 0.05" and range from 0-22. Use the down feed for large quill movement and the fine feed control for smaller increments.

Specifications

Outside Diameter: 1.024" (26 mm)

Inside Diameter: 0.630" (16 mm)

Recessed Side Diameter: 0.945" (24 mm)

Graduations: 0.05" (1.270 mm)

Outside Set Screw: M5

Inside Spring Pin: M3
