Handwheel, Compound Rest, 9x20 Bench Lathe

Handwheel, Compound Rest, 9x20 Bench Lathe

6578

$19.95 USD
$19.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • Bench lathe compound rest handwheel
  • Fits HiTorque 9x20 bench lathes without DRO
  • 60 mm outside diameter
  • Fits 10 mm shaft with a 4 mm key
  • Bore is 23 mm, handle threading is M6
*Will this fit my machine? Check our Replacement Parts

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

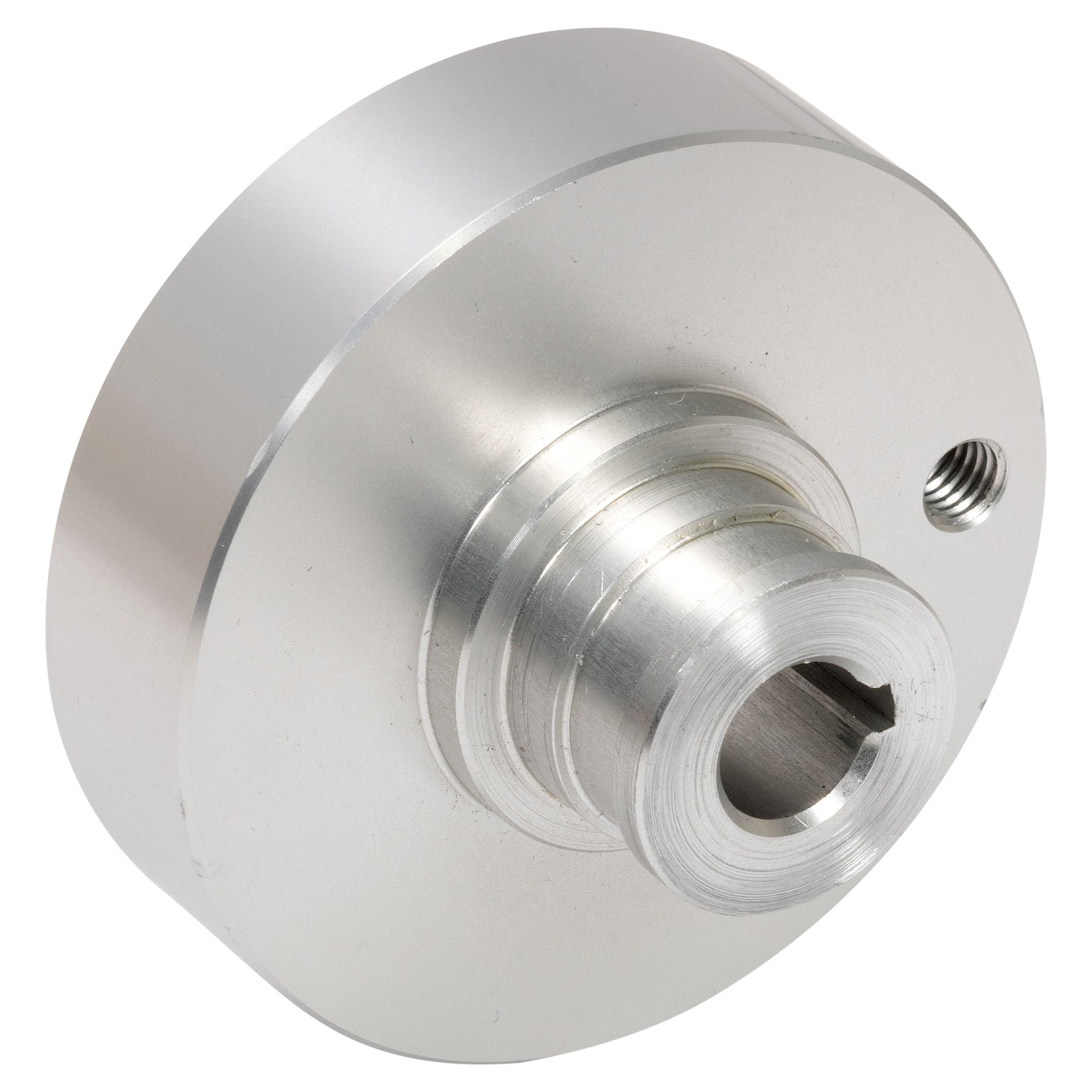

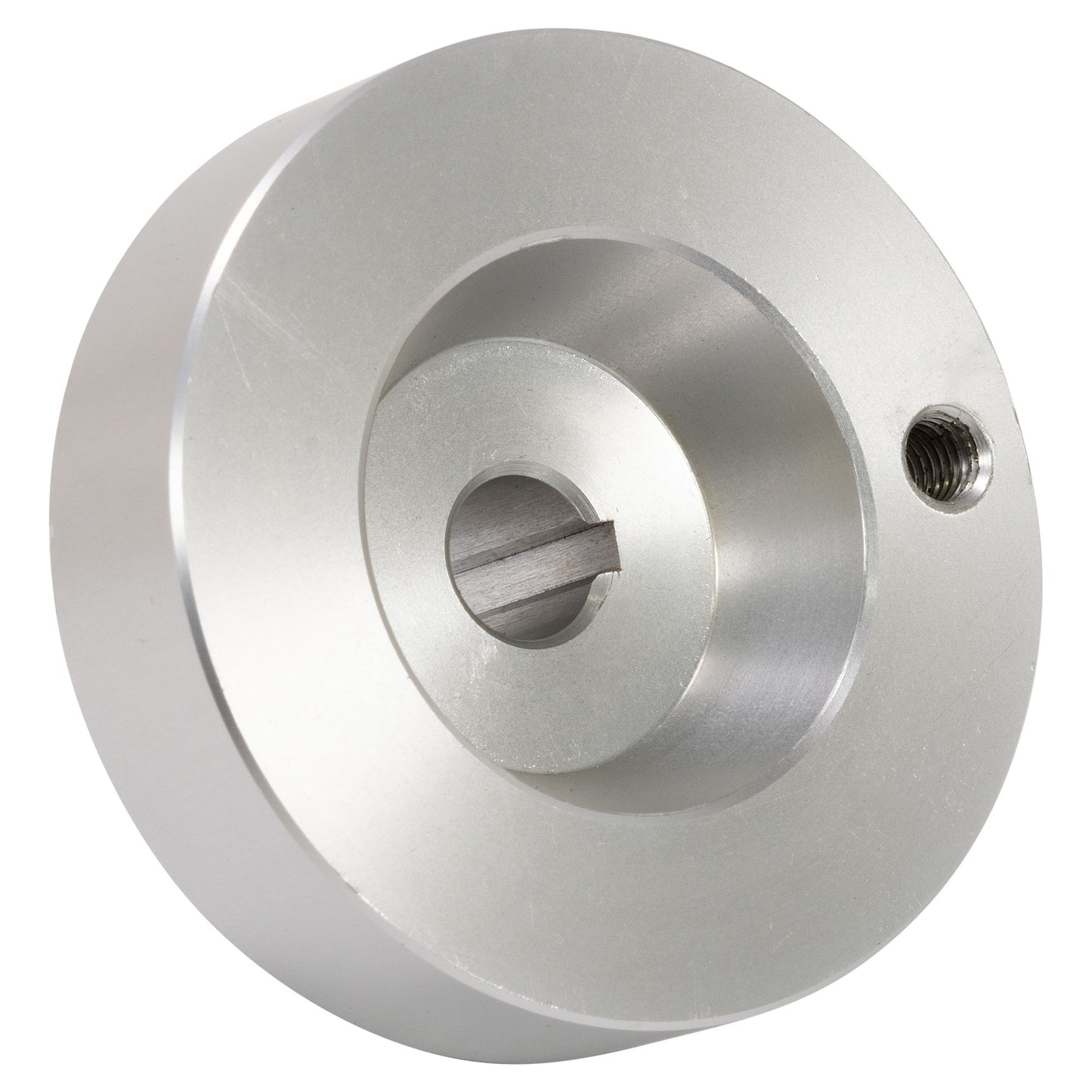

Compound rest handwheel for the HiTorque 9x20 bench lathes and SIEG SC50 bench lathes without DRO. The hand wheel is 60 mm in diameter. It mounts on a 10 mm shaft, with a 4 mm key. The length through the bore is 23 mm. There is an M6 threaded hole for a handle.
The handwheel is anodized aluminum.
