• Handwheel, HiTorque Deluxe Mini Mill, Aluminum
  • Handwheel, HiTorque Deluxe Mini Mill, Aluminum
1 2

Handwheel, HiTorque Deluxe Mini Mill, Aluminum

Handwheel, HiTorque Deluxe Mini Mill, Aluminum

4202

$29.95 USD
$29.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • Handwheel for deluxe mini mills
  • Fits SIEG SX2/SX2LF/SX20 and HITorque deluxe mini mills
  • 100 mm outside diameter
  • Fits 10 mm shaft with a 4 mm key
  • Bore depth is 24 mm, handle threading is M6
*Will this fit my machine? Check our Replacement Parts

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

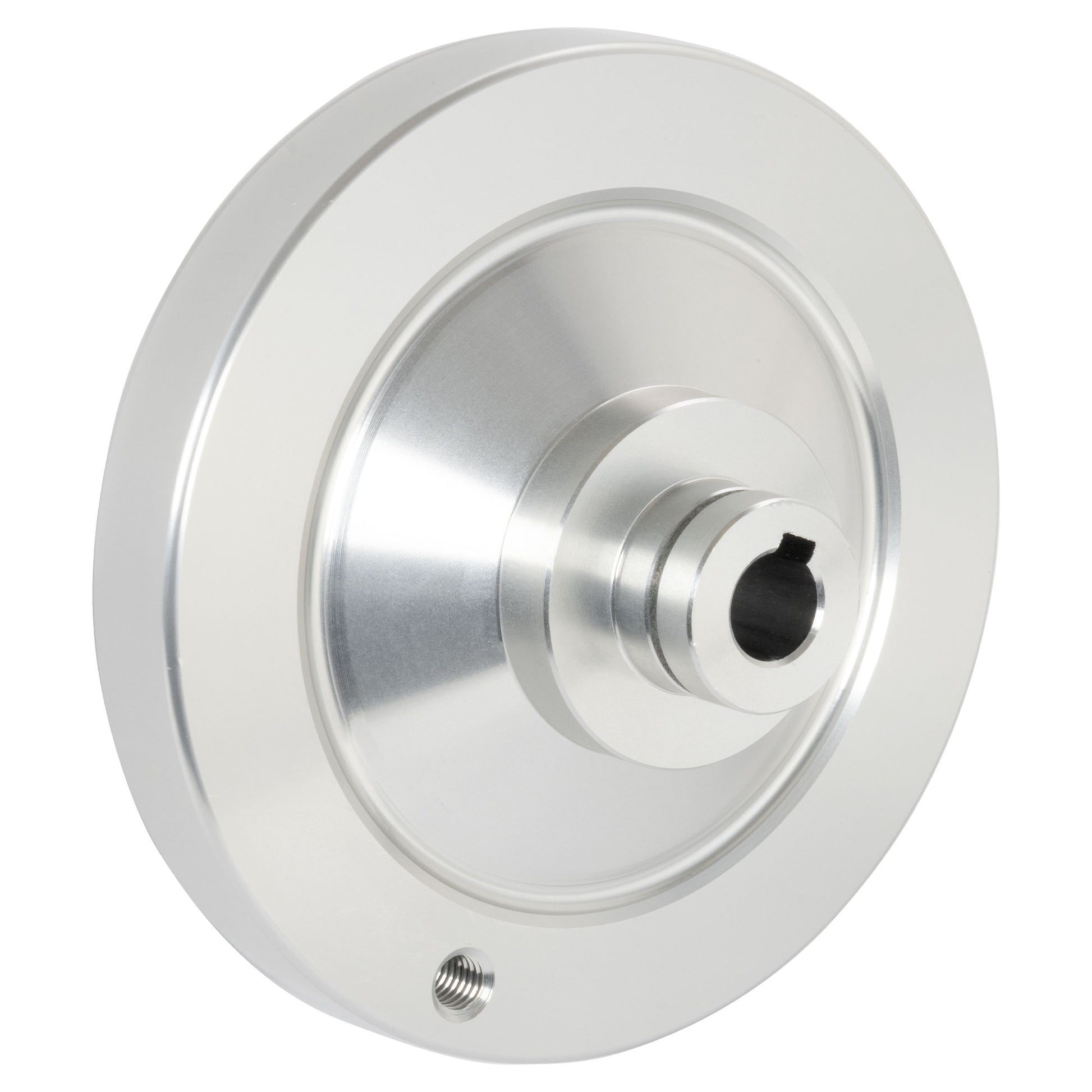

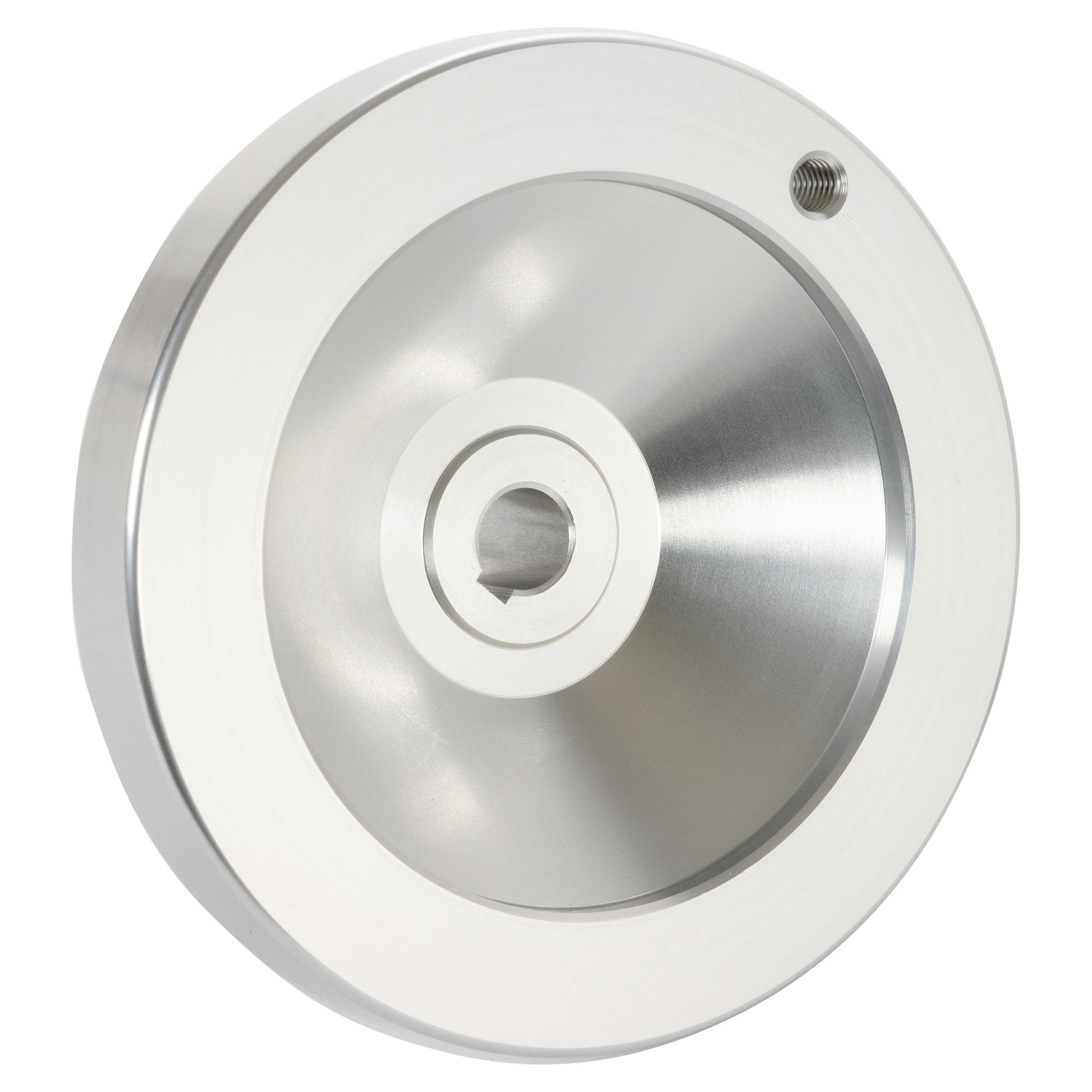

Handwheel for the HiTorque Deluxe Mini Mill Model 4190 (SX2LF) and 6450 (SX20).
The hand wheel is 100 mm in diameter. It mounts on a 10 mm shaft, with a 4 mm key. The length through the bore is 24 mm. There is an M6 threaded hole for a handle.
See Used On tab for reference to machines using this handwheel and the drawing number.
