Handwheel, Micro Mill

Handwheel, Micro Mill

$9.95
$9.95
Sale Sold out
Shipping calculated at checkout.

Out of stock

2102

Key Features

  • X- and Y-axis handwheel for the micro mill
  • Also the Z-axis handwheel on our HiTorque Micro Mills
  • 80 mm outside diameter
  • Fits 8 mm shaft with a 3 mm key
  • Bore is 15 mm in length
*Will this fit my machine? Check our Replacement Parts

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

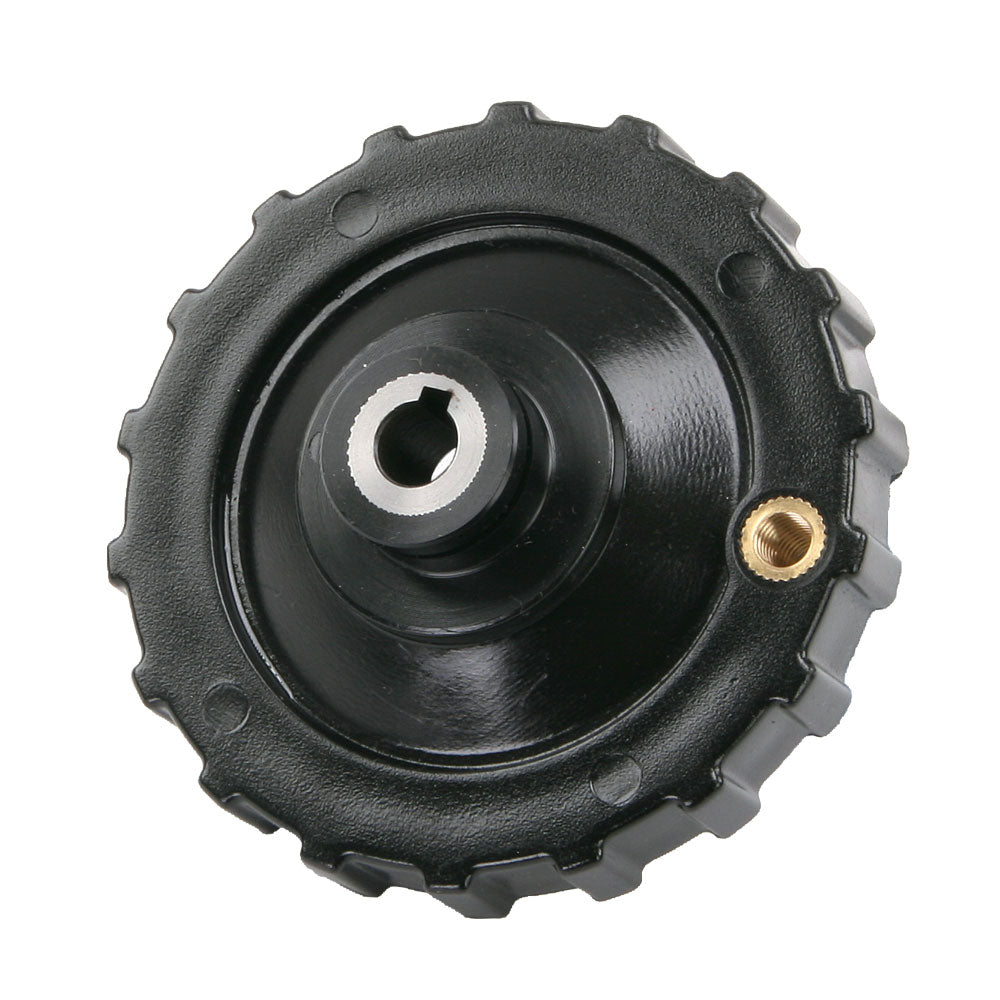

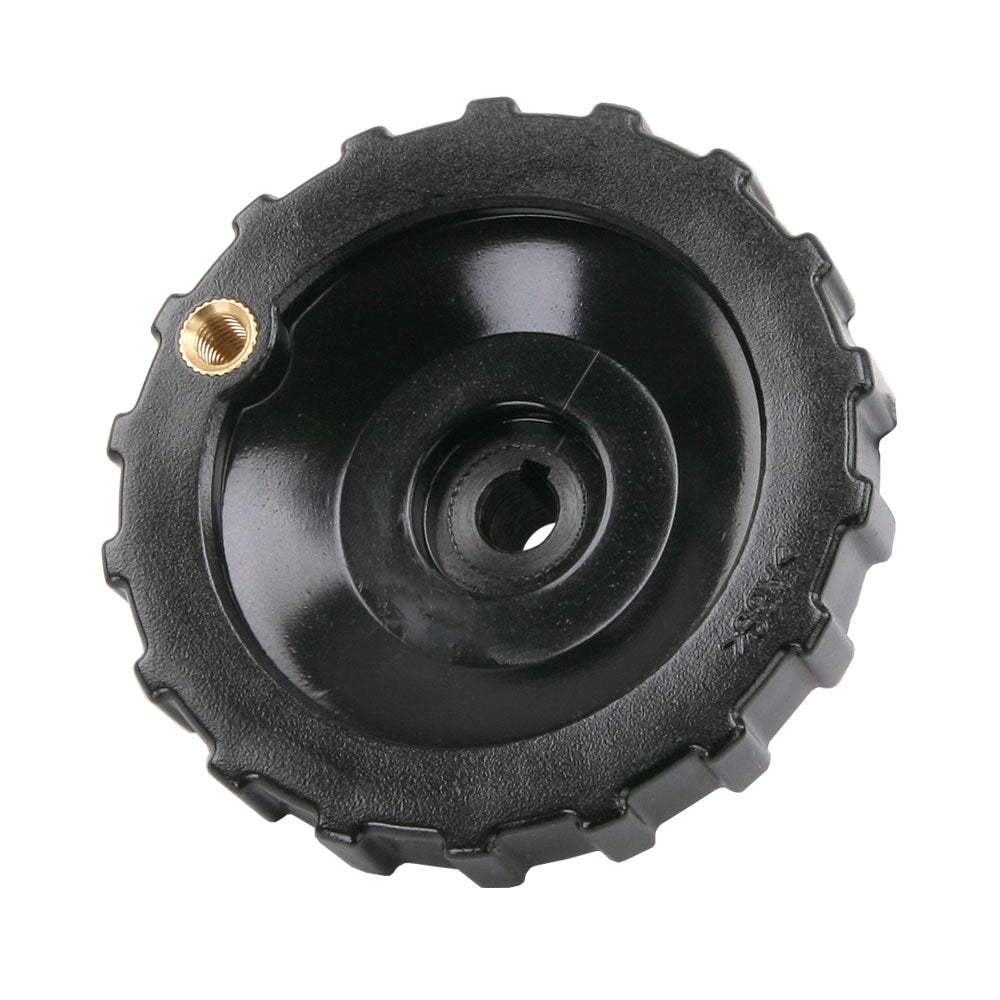

The handwheel is 80 mm in diameter. It mounts on a 8 mm shaft, with a 3 mm key. The length through the bore is 15 mm. There is an M6 threaded hole for a handle.
This handwheel is used on SIEG X1 and HiTorque micro mills. It is also the handwheel for the mini lathe milling attachment.
See compatibility tab for reference to machines or other related products that use this product.
