• Handwheel, Mini Lathe
  • Handwheel, Mini Lathe
1 2

Handwheel, Mini Lathe

Handwheel, Mini Lathe

1380

$19.95 USD
$19.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • Saddle drive and tailstock handwheel for mini lathe
  • Fits SIEG C2, SC2, C3 and HiTorque mini lathes
  • 90 mm outside diameter
  • Fits 8 mm shaft (no key)
  • Bore is 22 mm, handle threading is M8
*Will this fit my machine? Check our Replacement Parts

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

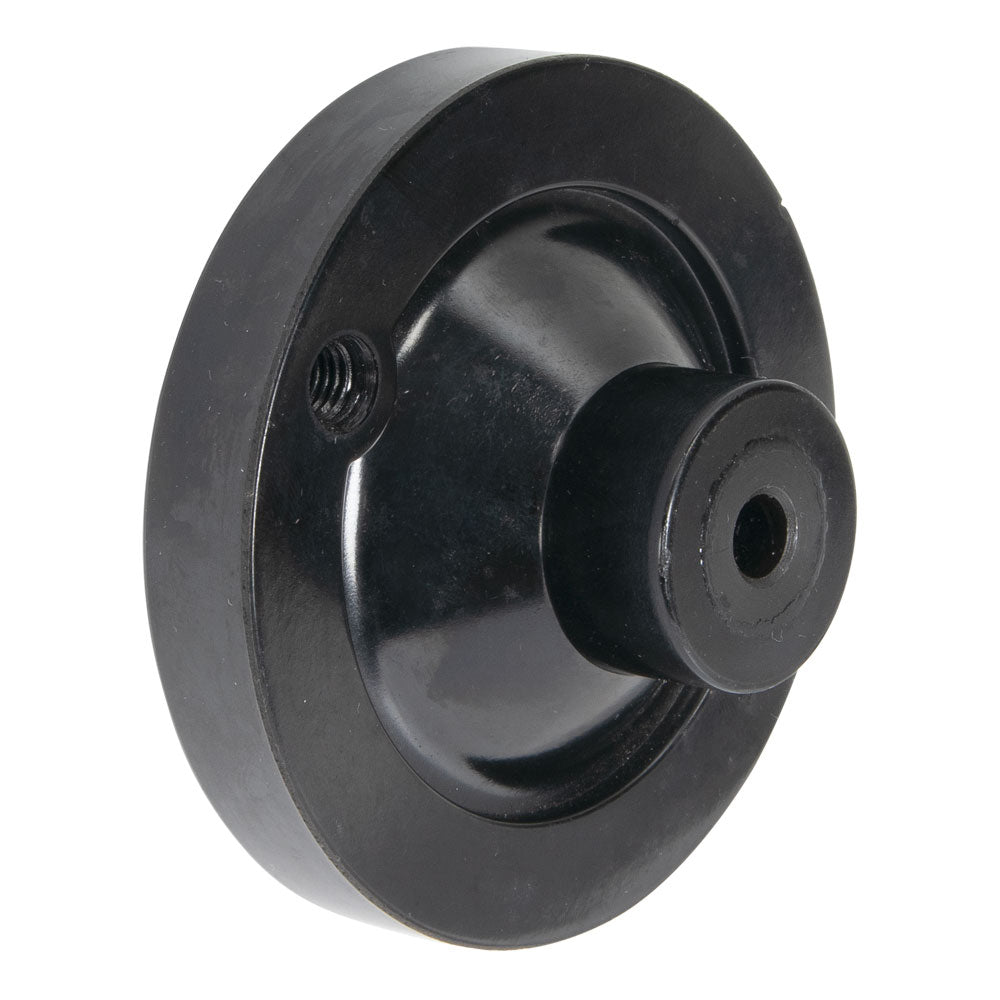

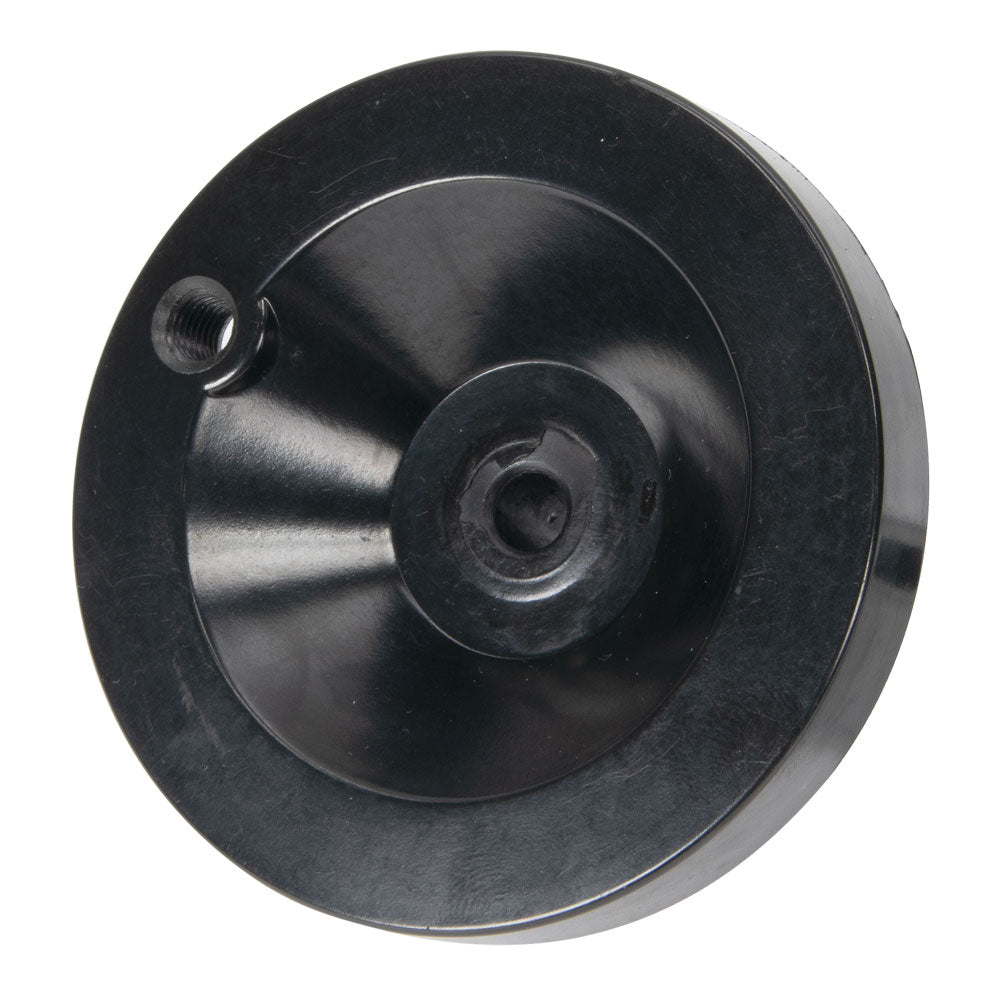

This handwheel is used on the saddle drive and the tailstock of the mini lathe. It is designed for the SIEG C2, SC2 and C3 class of mini lathes including the HiTorque mini lathes.
The handwheel is 90 mm in diameter. It mounts on a 8 mm shaft, with a set screw. The length through the bore is 22 mm. There is an M8 threaded hole for a handle.
