Handwheel, Tailstock, 9x20 Bench Lathe

Handwheel, Tailstock, 9x20 Bench Lathe

6567

$18.95 USD
$18.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • Bench lathe tailstock handwheel
  • Fits HiTorque SIEG bench lathes
  • 80 mm outside diameter
  • Fits 12 mm shaft with a 4 mm key
  • Bore is 22 mm, handle threading is M6
*Will this fit my machine? Check our Replacement Parts

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

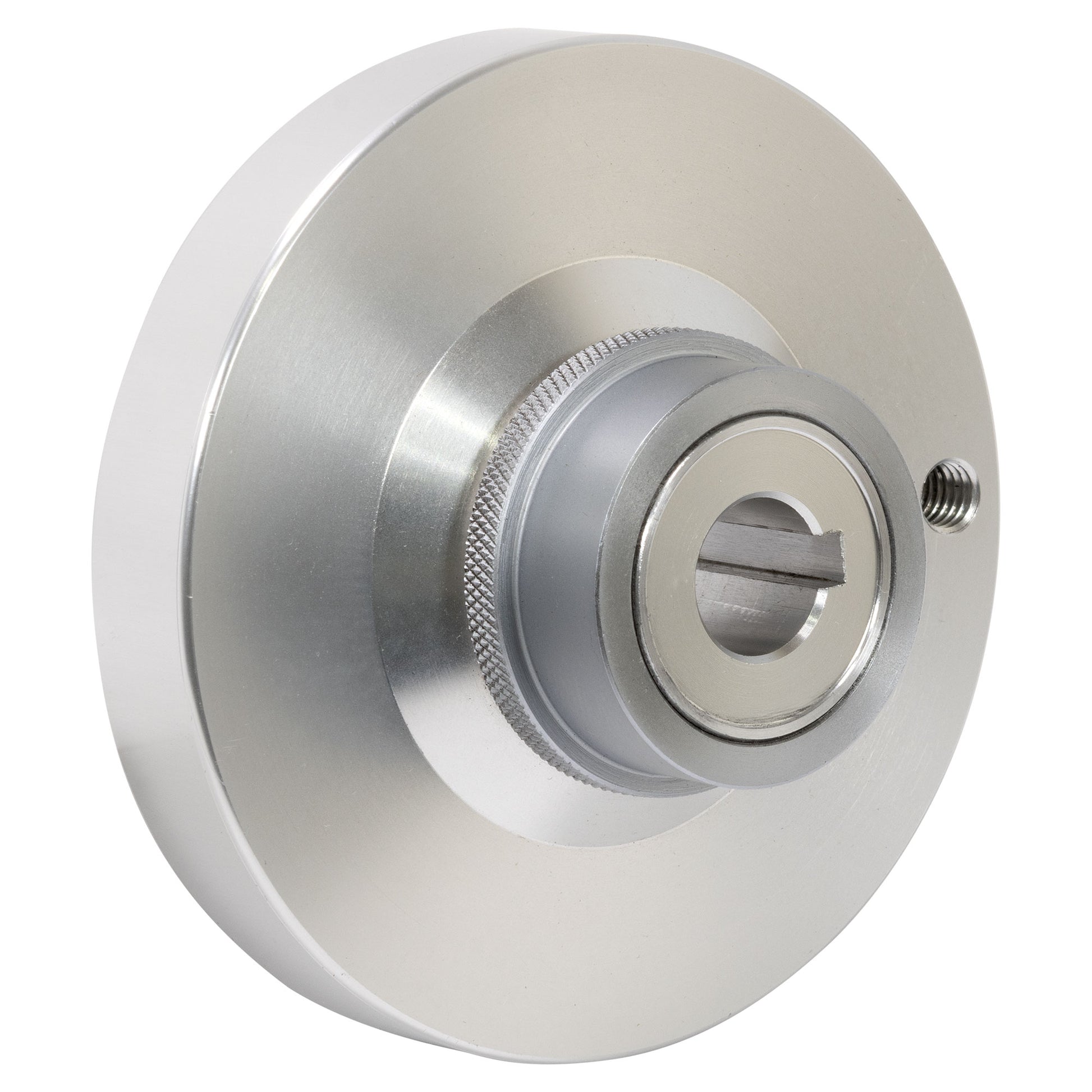

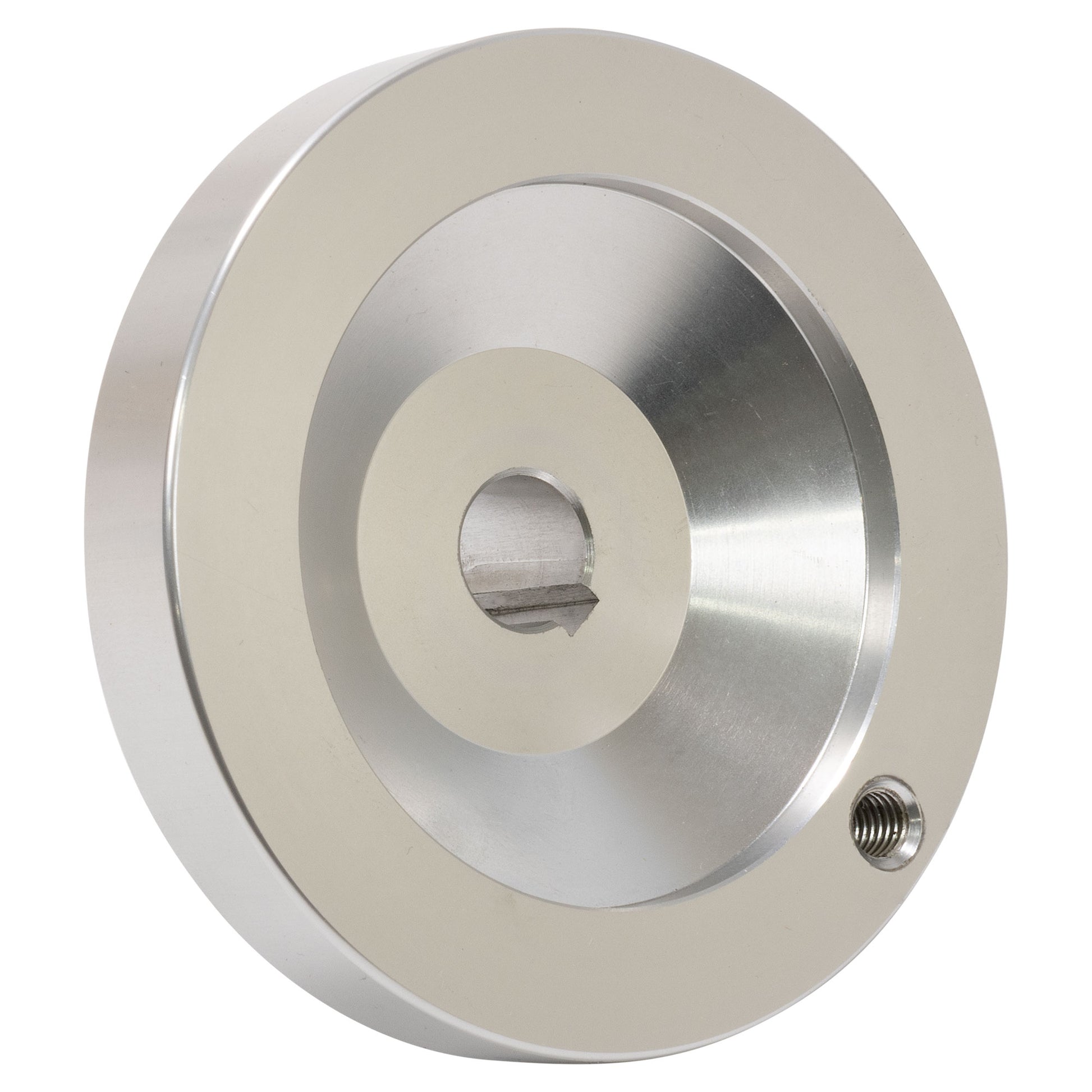

Tailstock handwheel for the HiTorque 9x20 bench lathes and SIEG SC50 bench lathes. The hand wheel is 80 mm in diameter. It mounts on a 12 mm shaft, with a 4 mm key. The length through the bore is 22 mm. There is an M6 threaded hole for a handle.
The handwheel is anodized aluminum.
See compatibility tab for reference to machines or other related products that use this product.
