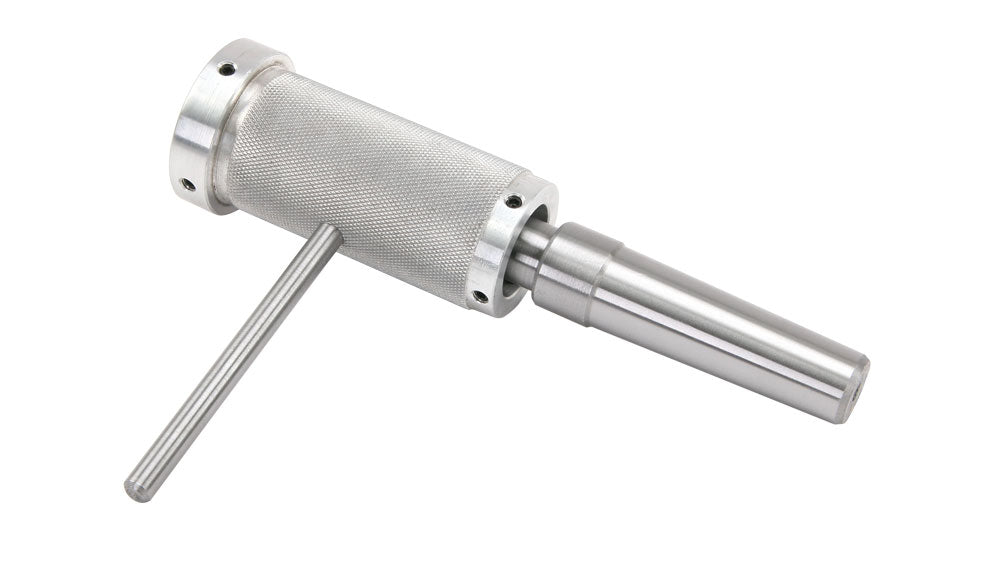

Industrial Tailstock Die Holder
Industrial Tailstock Die Holder
SKU:2314
Out of stock
Couldn't load pickup availability
Notify Me
Notify me when items are back in stock.
Key Features
Key Features
- Holds 13/16" and 1" round dies
- Holds dies in alignment when threading on the lathe
- 2 Morse taper shank fits the mini lathe tailstock
- Tommy bar provides torque for larger thread sizes
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
This industrial die holder goes in the tailstock of the mini lathe, or any other lathe with a 2 Morse taper tailstock. It has a short Morse taper for the mini lathe so you may need to put a ball bearing or such like behind it so it will eject from lathes that expect a standard length taper.

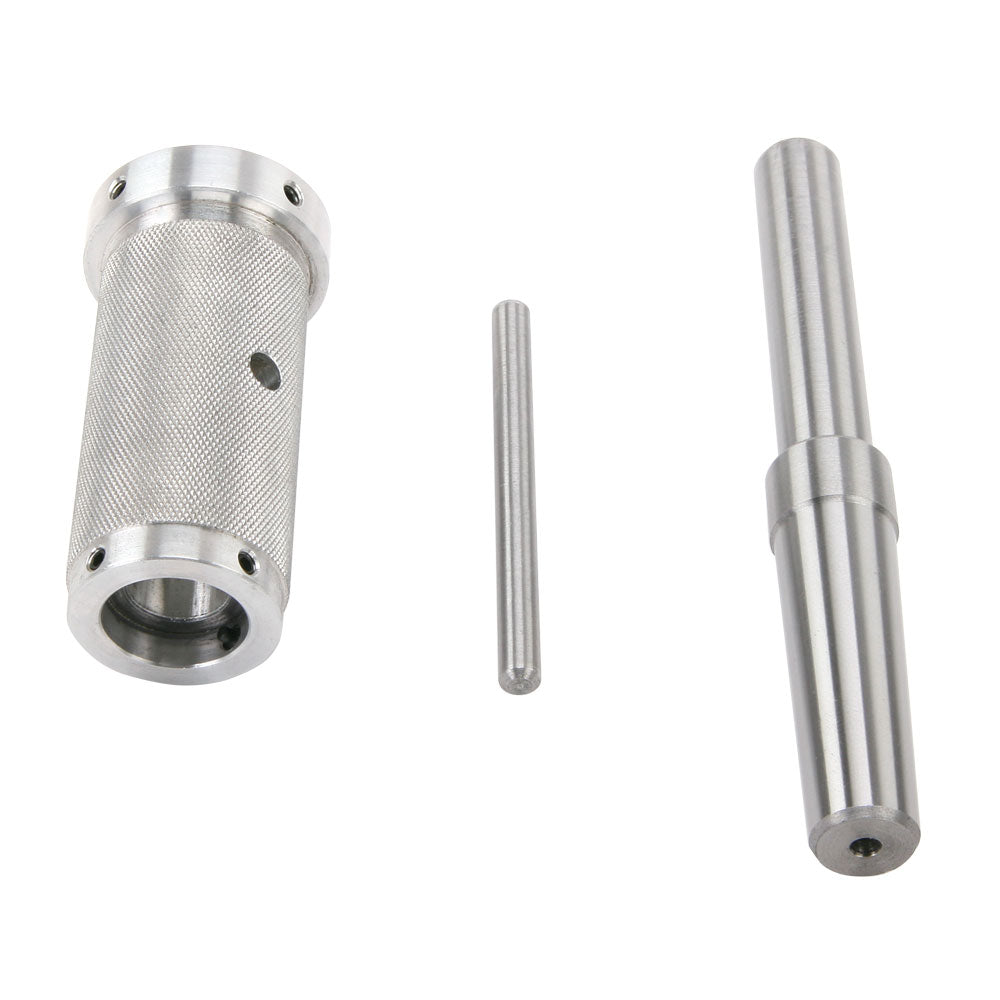

The arbor is made of steel. The body is aluminum for low mass, so it spins easily when you release it. This prevents small parts from twisting off.
This lathe die holder tool does not work with hexagonal dies. Hexagonal dies are not made for creating new threads, they are for maintenance work.
Chris's Tips
Put the tapered arbor in the tailstock and position (and lock) the tailstock so that the die is just off the end of the workpiece.
Turn on the lathe at slow speed.
Grab the knurled body of the die holder and move it into the workpiece. As the die threads the workpiece, the body slides on the arbor.
When you reach the end of the area you want threaded, simply let go of the body and it will start turning with the workpiece.
The tommy bar is used for larger threads and can be set on top of the compound. You will probably have to turn the lathe chuck by hand as mini lathes don't have enough torque.
