Tormach

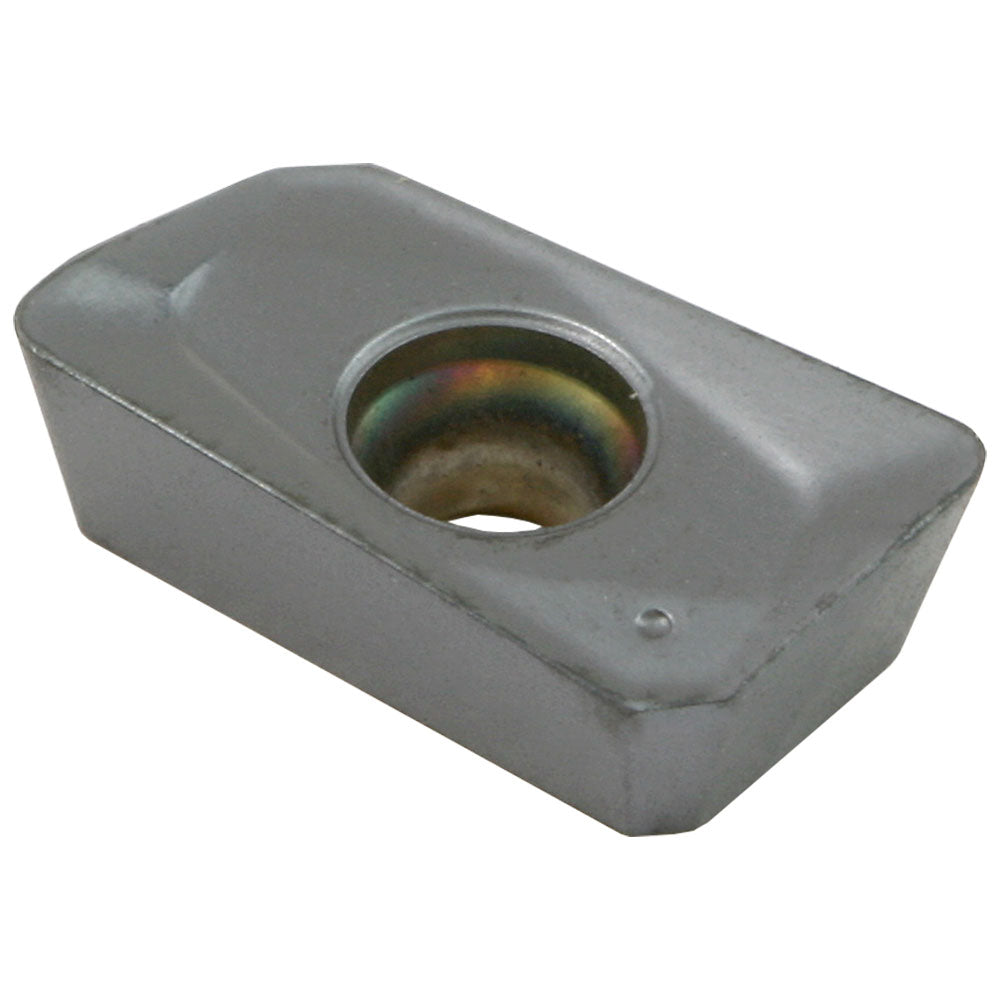

Insert, APGT1135PDFR-G2 Carbide, Tormach
Insert, APGT1135PDFR-G2 Carbide, Tormach
In stock
SKU:4122Shelf Location: (E07 - 36)
Couldn't load pickup availability
Key Features
Key Features
- Coated carbide
- 85° Parallelogram, 11° relief
- 40°-60° Double countersink, single-sided chip breaker
- 0.0313" (1/32") corner radius
- ANSI: N/A, ISO: APGT1135PDFR
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
General purpose carbide insert used for both face and end mills.
ISO APMT1135PDER-M
ANSI Code: NA
Type: Cemented Carbide
Grade: HD30
Designed for milling steel
Comparable ISO Grade: P30
Surface Prep: PVD
Cross Reference: Mitsubishi
Notes: Milling, Steel
Chris' Tips
Carbide cutting tools are a hard composite material , primarily tungsten carbide, bonded with cobalt. They can withstand extreme temperatures (up to 1,000° C) and heavy mechanical loads without losing their hardness.
Many of our carbide inserts are coated, typically with TiN (Titanium Nitride). This coating reduces friction and improves wear resistance.
Carbide indexable inserts save money since only the insert, not the entire cutting tool, needs to be made of carbide. However, when compared to solid carbide or high-speed steel (HSS), they are slightly less rigid. They can be prone to cutting pockets in your stock if the edge breaks. It is this quality which drives many of our customers to our T-15 high-speed steel made in the USA.
Make sure you get the correct inserts and retaining screws for your indexable turning tools.
Our chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.
