• Insert, CCMT-32.52 Carbide
1 1

Insert, CCMT-32.52 Carbide

Insert, CCMT-32.52 Carbide

$4.95
$4.95
Sale Sold out
Shipping calculated at checkout.

In stock

1795 (B01 - 08)

Key Features

  • Uncoated carbide
  • 80° diamond, 7° relief
  • 40°-60° single countersink, single-sided chip breaker
  • 0.0313" (1/32") corner radius
  • ANSI: CCMT32.52, ISO: CCMT09T308

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

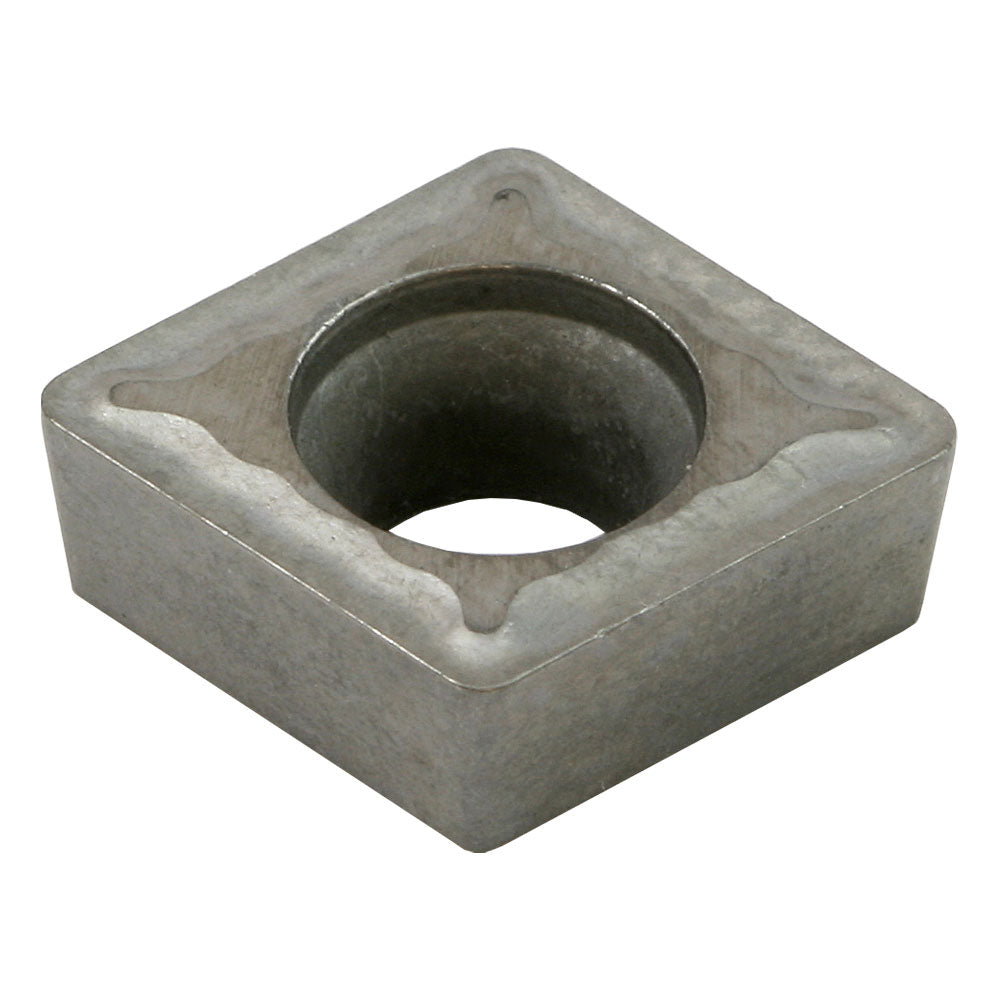

CCMT 32.52 carbide insert is a 80° diamond with a 7° relief. The center hole is a 40°-60° single countersink, and a single-sided chip breaker.
It has an inscribed circle (IC) of 0.375" (3/8"), a thickness of 0.156" (5/32"), and a corner (nose) radius of 0.0313" (1/32").
The insert is designated CCMT32.52 (ANSI) or CCMT09T308 (ISO). For a list of compatible LittleMachineShop.com products, see the Compatibility tab.
Inserts are sold individually—no need to buy a pack of 10 inserts.

Chris' Tips

Make sure you get the correct inserts and retaining screws for your indexable turning tools.

Our chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.

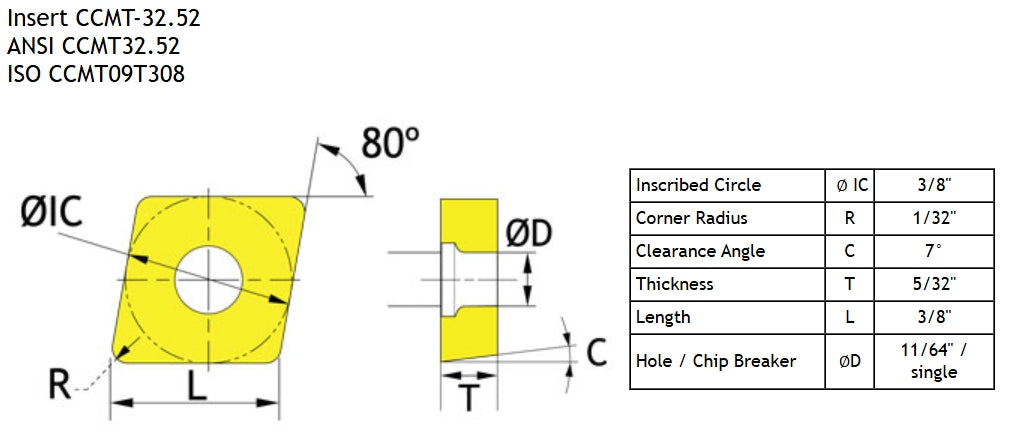

Drawings
