Insert, TPC-322 Carbide CLEARANCE

Insert, TPC-322 Carbide CLEARANCE

$9.95
$12.95 $9.95
Sale Sold out
Shipping calculated at checkout.

In stock

1216 (D07 - 21)

Key Features

  • Uncoated carbide
  • 60° triangle, 11° relief
  • No hole, no chip breaker
  • 0.0313" (1/32") corner radius
  • ANSI: TPC322, ISO: TPCN160308

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

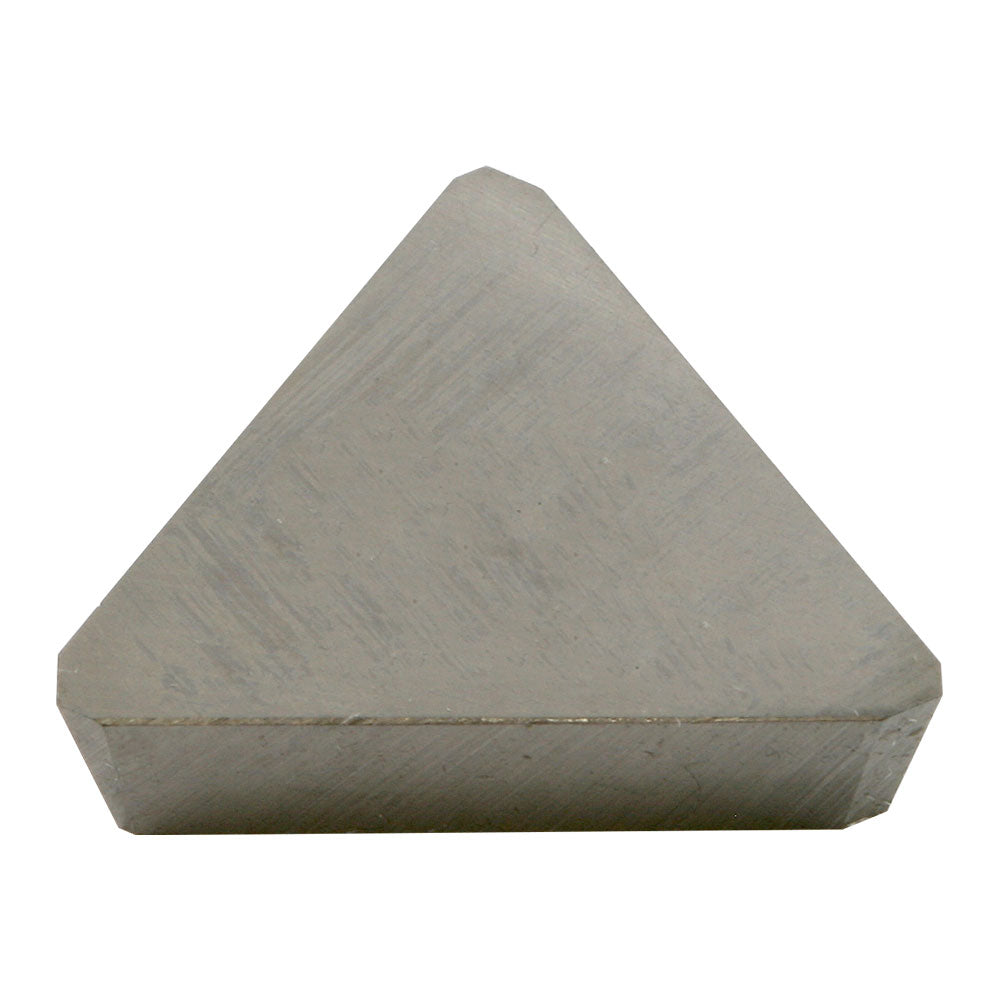

TPC-322 carbide insert is a 60° triangle with a 11° relief. There is no chip breaker or screw hole.

It has an inscribed circle (IC) of 0.375" (3/8"), a thickness of 0.125" (1/8"), and a corner (nose) radius of 0.0313" (1/32").

The insert is designated TPC322 (ANSI) or TPCN160308 (ISO). TPC inserts without holes are often referred to as TPCN or TPC(N) inserts. For a list of compatible LittleMachineShop.com products, see the Compatibility tab.

Inserts are sold individually—no need to buy a pack of 10 inserts.

Chris' Tips

Make sure you get the correct inserts and retaining screws for your indexable turning tools.

Our chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.

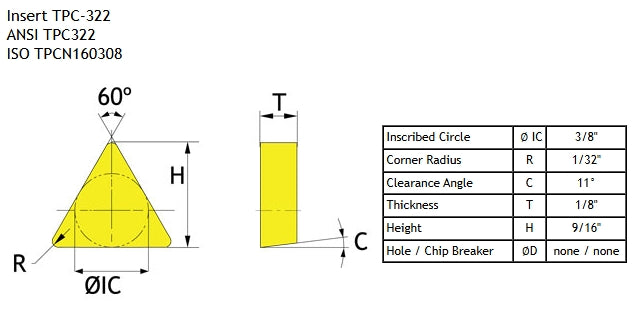

Drawings
