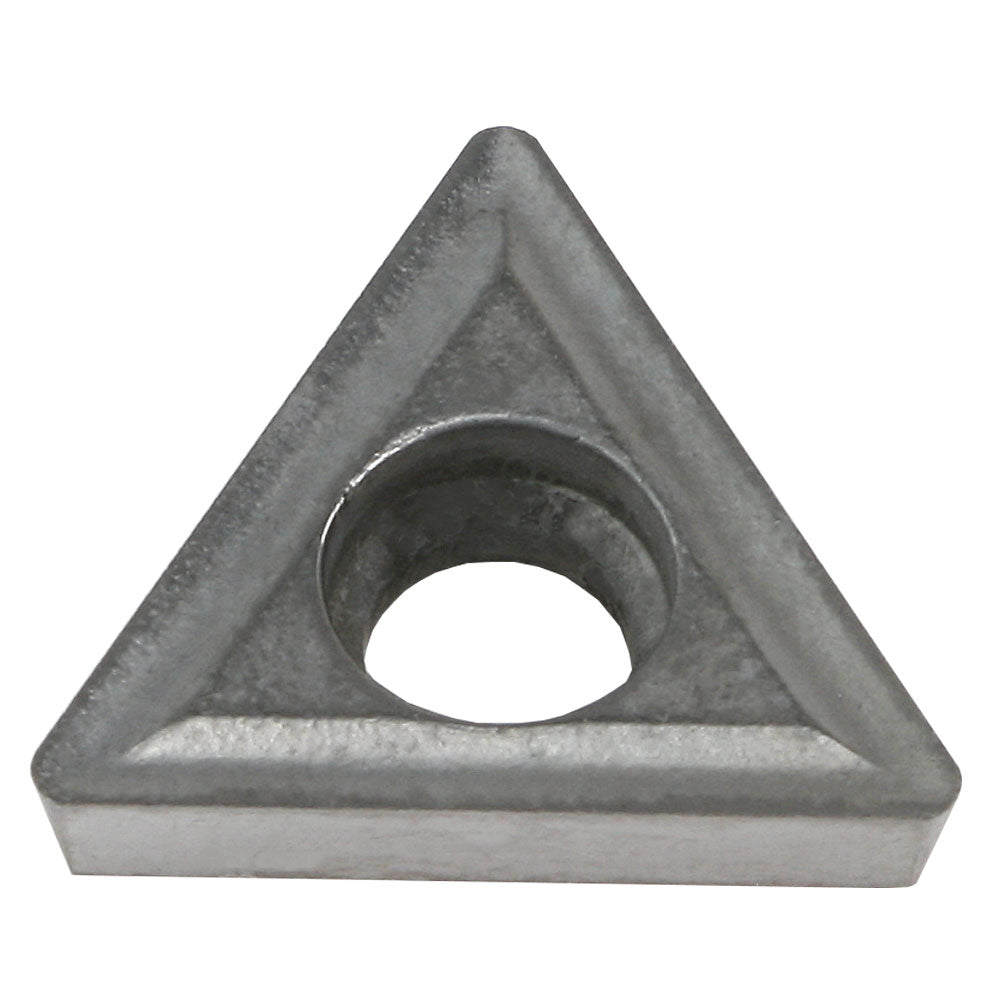

• Insert, TPGH-322 Carbide
1 1

Insert, TPGH-322 Carbide

Insert, TPGH-322 Carbide

5644

$9.95 USD
$9.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • Uncoated carbide
  • 60° triangle, 11° relief
  • 70°-90° single countersink, single-sided chip breaker
  • 0.0313" (1/32") corner radius
  • ANSI: TPGH322, ISO: TPGH160308

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

TPGH-322 carbide insert is a 60° triangle with a 11° relief. The center hole is a 70°-90° single countersink, and a single-sided chip breaker.
It has an inscribed circle (IC) of 0.375" (3/8"), a thickness of 0.125" (1/8"), and a corner (nose) radius of 0.0313" (1/32").
The insert is designated TPGH322 (ANSI) or TPGH160308 (ISO). For a list of compatible LittleMachineShop.com products, see the Compatibility tab.
Inserts are sold individually—no need to buy a pack of 10 inserts.

Chris's Tips

Make sure you get the correct inserts and retaining screws for your indexable turning tools.

Our chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.

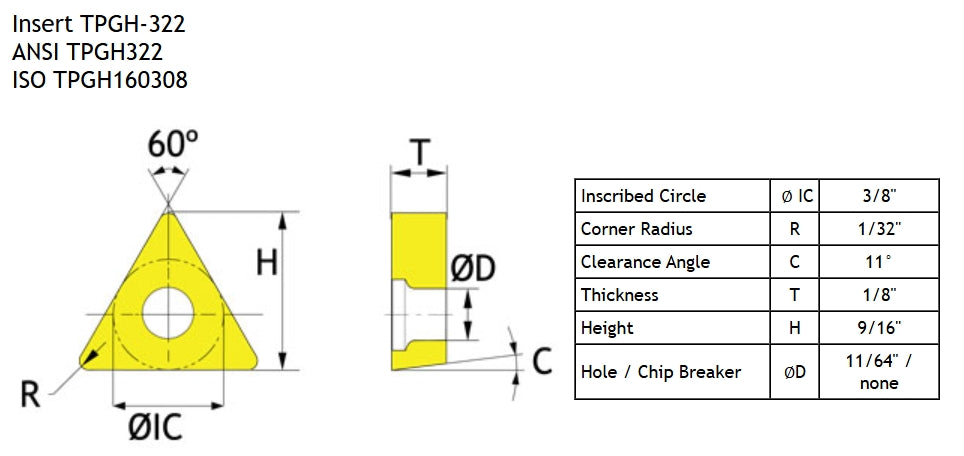

Drawings
