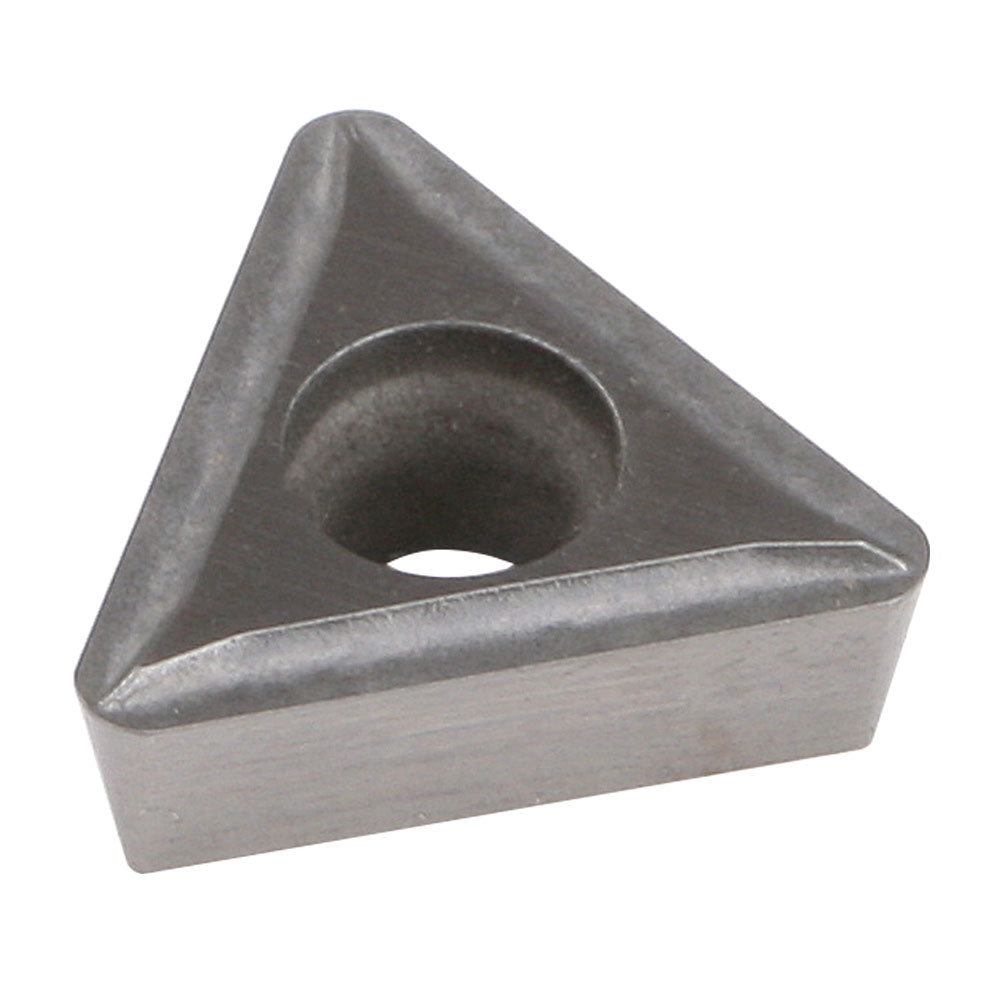

Insert, TPMT-222 Carbide

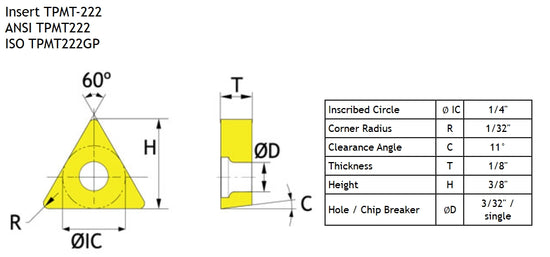

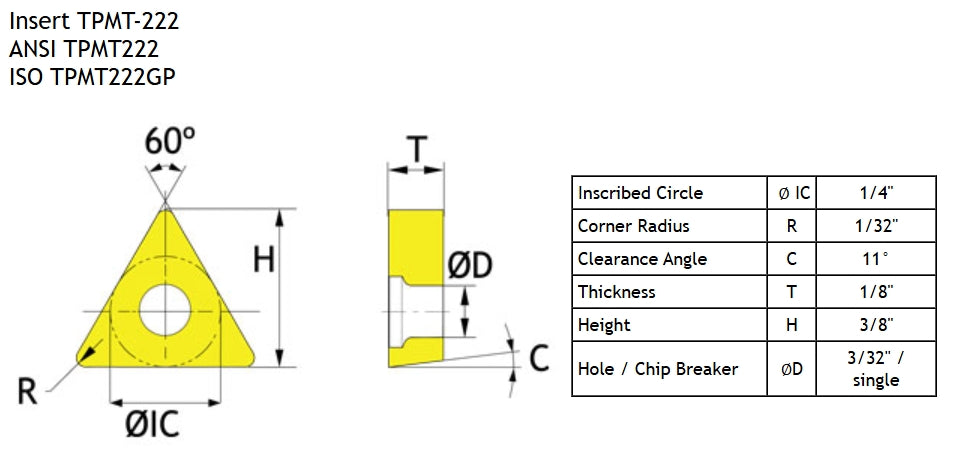

TPMT-222 carbide is a 60° triangle with a 11° relief. The center hole is a 40°-60° single countersink, and there is a single-sided chip breaker.
It has an inscribed circle (IC) of 0.25" (1/4"), a thickness of 0.125" (1/8"), and a corner (nose) radius of 0.0313" (1/32").
The insert is designated TPMT222 (ANSI) or TPMT222GP (ISO). For a list of compatible LittleMachineShop.com products, see the Compatibility tab.
Inserts are sold individually—no need to buy a pack of 10 inserts.

Make sure you get the correct inserts and retaining screws for your indexable turning tools.

Our chart of indexable inserts shows which inserts and which screw to use with each of our indexable tools.

Carbide cutting tools are a hard composite material , primarily tungsten carbide, bonded with cobalt. They can withstand extreme temperatures (up to 1,000° C) and heavy mechanical loads without losing their hardness.

Many of our carbide inserts are coated, typically with TiN (Titanium Nitride). This coating reduces friction and improves wear resistance.

Carbide indexable inserts save money since only the insert, not the entire cutting tool, needs to be made of carbide. However, when compared to solid carbide or high-speed steel (HSS), they are slightly less rigid. They can be prone to cutting pockets in your stock if the edge breaks. It is this quality which drives many of our customers to our T-15 high-speed steel made in the USA.

•
