Knob and Handwheel Kit, Mini Lathe

Knob and Handwheel Kit, Mini Lathe

3937

$99.95 USD
$99.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • Anodized handwheels for apron and tailstock
  • Chrome levers for half-nuts, tool post and tailstock
  • Handwheels: 90 mm OD, 8 mm bore
  • Levers: M8 threading
  • Acron Nuts: M8 threading

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

The attractive handwheels are all metal, and the levers are chrome. Designed for SIEG C2, SC2 and C3 class of mini lathes as well as HiTorque mini lathes.

The saddle drive gear in this kit is an upgraded version with a threaded end. This allows the handwheel to hold to the gear shaft using one of the chrome acorn nuts. In the factory version of the lathe, the hand wheel was held to the gear using a cone point set screw.

The tailstock handwheel also has an acorn nut for attachment to the tailstock screw. In this application, the chrome acorn nut simply replaces a standard M8 nut.

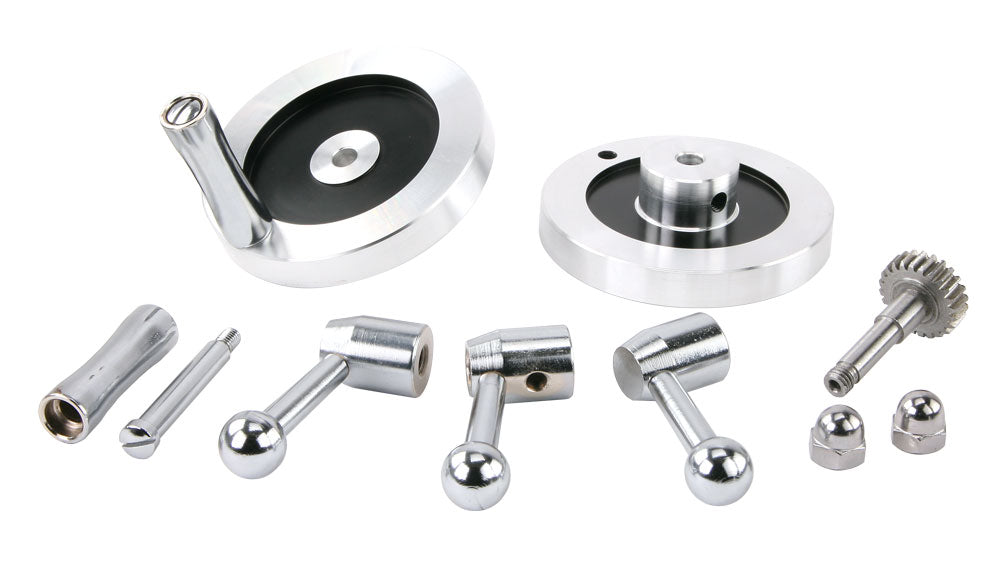

Mini Lathe Knob and Hand Wheel Kit Contents:

  • Two chrome hand wheels
  • Two chrome handles
  • Two chrome handle bolts
  • Two chrome M8 acorn nuts
  • Three chrome levers with M8 threading
  • One upgraded 24 tooth saddle gear

Product Compatibility

This product was designed for machines manufactured by SIEG, including those listed below. We have added compatibility for other non-SIEG machines when a “fit” can be verified.

If your machine is not listed, we cannot verify compatibility but encourage you to contact us. With additional information we may be able to help you find a solution.

  • Bolton CQ9318 7x12 Mini Lathe
  • Busy Bee Tools CX704 Craftex 7x12 Mini Lathe
  • Cummins (Tools Now) 5278 7x12 Mini Lathe
  • Eastwood 32497 7x12 Mini Lathe
  • Grizzly G8688 7x12 Mini Metal Lathe
  • Harbor Freight 93799 Central Machinery 7x12 Mini Lathe
  • Homier 03911 Speedway 7x12 Mini Bench Metal Lathe
  • LittleMachineShop.com 1014 LittleMachineShop.com 7x14 Mini Lathe
  • LittleMachineShop.com 1012 LittleMachineShop.com 7x12 Mini Lathe
  • Northern Tool 49656 KLUTCH 7x12 Mini Lathe
  • Princess Auto 8507659 Powerfist 7x12 Mini Lathe
  • SIEG C2 7x12 Mini Lathe
  • Tormach 30689 7x12 Duality Lathe
  • Travers Tools OT222300 OTMT 7x12 Mini Lathe
  • Warco 3005 7x12 Mini Lathe (Imperial)
  • Warco 3004 7x12 Mini Lathe (Metric)
  • WEN 3455 WEN 7x12 Mini Lathe
  • Micro-Mark 82500 MicroLux 7x12 Mini Lathe
  • LittleMachineShop.com 4100 HiTorque 7x12 Mini Lathe
  • LittleMachineShop.com 4200 HiTorque 7x12 Deluxe Mini Lathe
  • SIEG SC2 7x12 Mini Lathe
  • Micro-Mark 82710 MicroLux 7x14 Mini Lathe
  • LittleMachineShop.com 4959 SIEG 7x14 Mini Lathe
  • SIEG C3 7x14 Mini Lathe
  • Micro-Mark 84631 MicroLux 7x16 Mini Lathe
  • LittleMachineShop.com 5200 HiTorque 7x16 Mini Lathe
  • LittleMachineShop.com 5100 HiTorque 7x16 Mini Lathe
  • LittleMachineShop.com 7350 HiTorque 7x16 Mini Lathe
  • LittleMachineShop.com 7450 HiTorque 7x16 Mini Lathe
