Lathe Chuck - 2", 3-Jaw

Lathe Chuck - 2", 3-Jaw

2916

$79.95 USD
$79.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

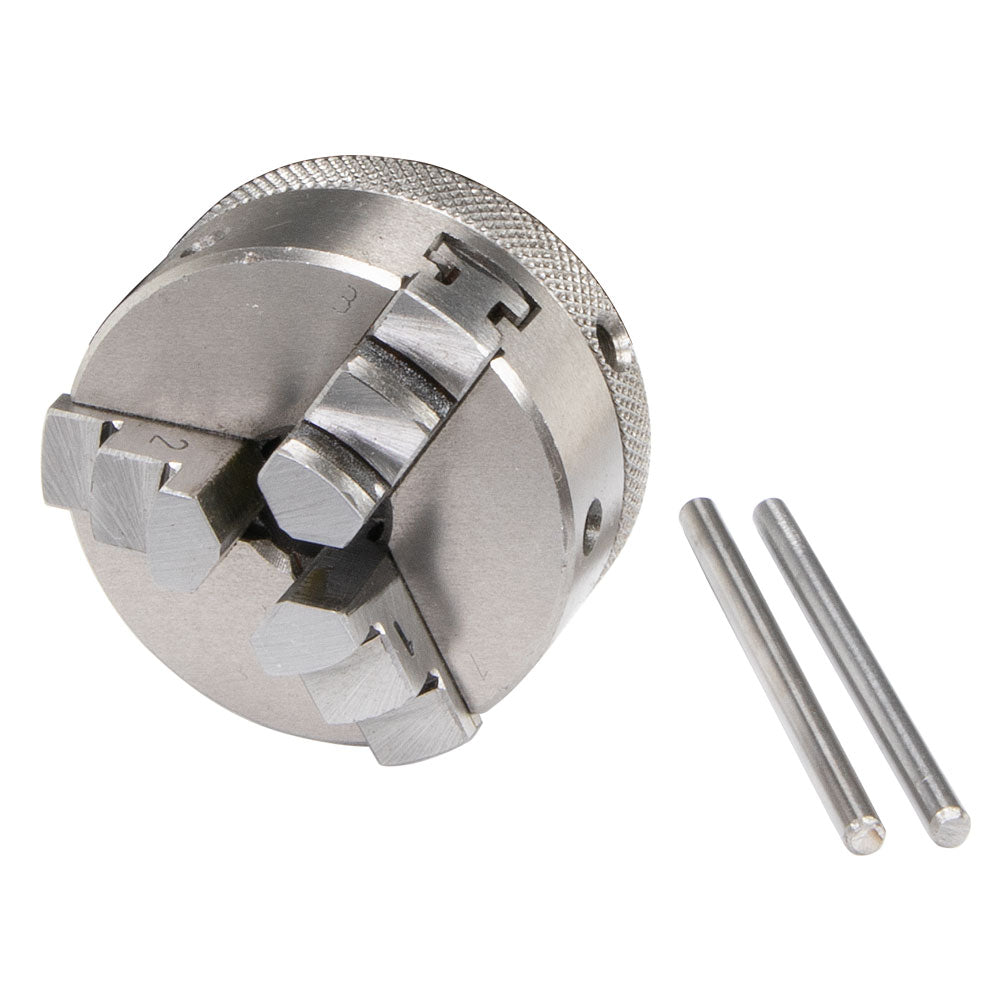

  • 3-jaw self-centering lathe chuck
  • 2" (50 mm) diameter

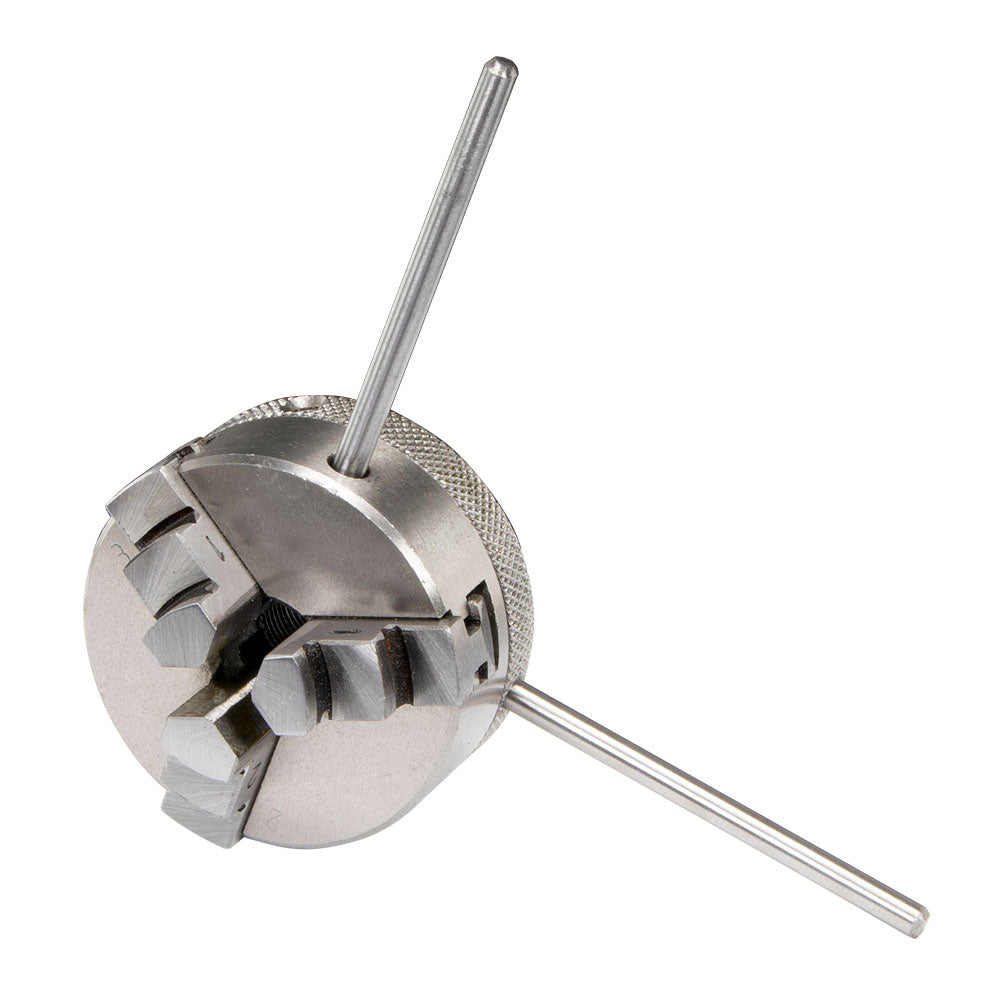

  • Includes reversible jaws and two tommy bars

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

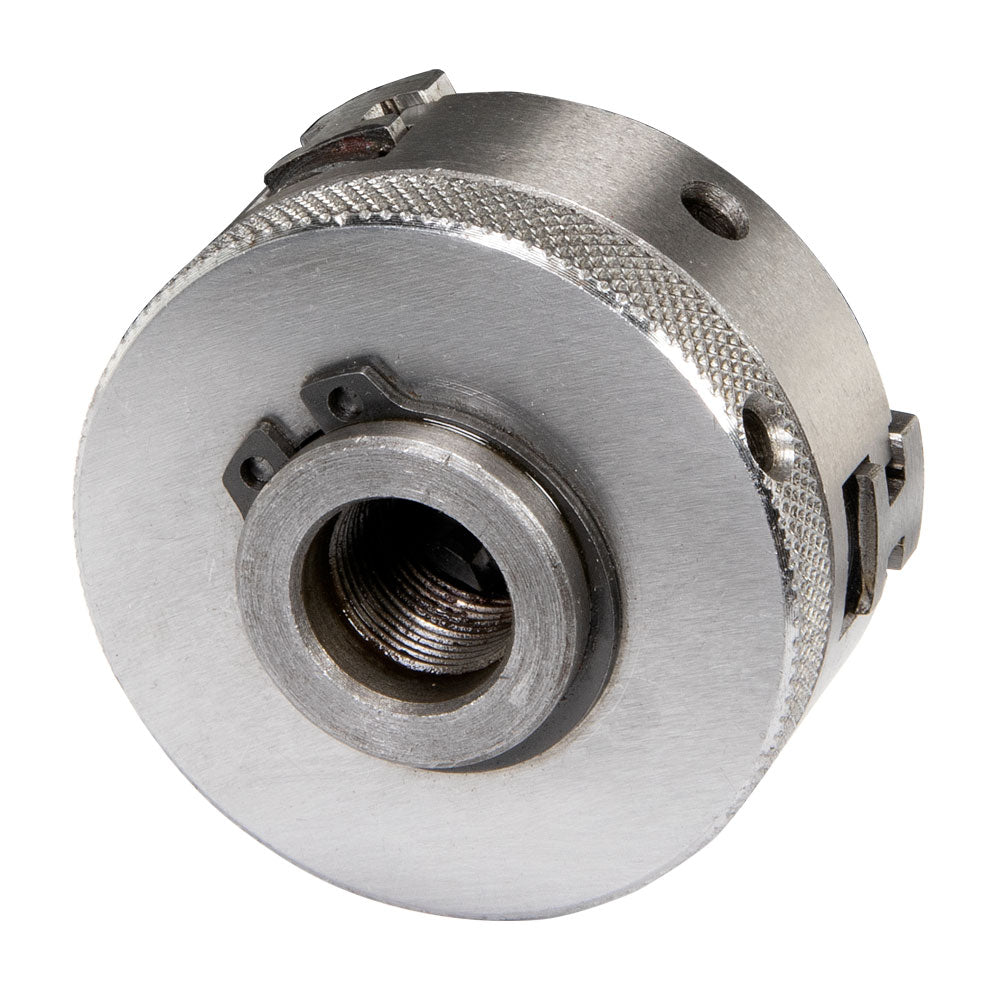

This 2-inch 3-jaw self-centering lathe chuck fits Unimat 3 and Unimat 4 lathes.

This chuck has a M14x1 threaded through hole (approximately 13 mm). It holds work up to 1.30" (33 mm) in diameter.

This chuck requires a 15 mm OD x 14 mm ID bushing to mount on a Unimat 3 or 4.

Fits the SIEG C0 lathe.

Chris's Tips

Mount this chuck on a mini lathe with one of our chuck adapters. Or purchase a chuck with an adapter already mounted.

Here is a chart that provides Lathe chuck capacities and mounting dimensions.

Specifications

Rated Capacity, Inside Jaws: 0.079" - 0.551" (2 mm - 14 mm)

Rated Capacity, Outside Jaws: 0.984" - 1.299" (25 mm - 33 mm)

Diameter, Overall: 1.969" (50 mm)

Registration Recess Diameter: 0.591" (15 mm)

Center Hole Diameter: 0.512" (13 mm)

Height: 0.906" (23 mm)

Jaw Height Above Face: 0.472" (12 mm)

Height with Jaws: 1.378" (35 mm)
