Lathe Chuck - 2", 4-Jaw

Lathe Chuck - 2", 4-Jaw

2917

$54.95 USD
$54.95 USD
Sale Sold out
Shipping calculated at checkout.

Low stock

Key Features

  • 4-Jaw Self-Centering lathe chuck.
  • 2" (50 mm) diameter
  • Includes chuck key, inside and outside jaws
  • M14x1 threaded mounting

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

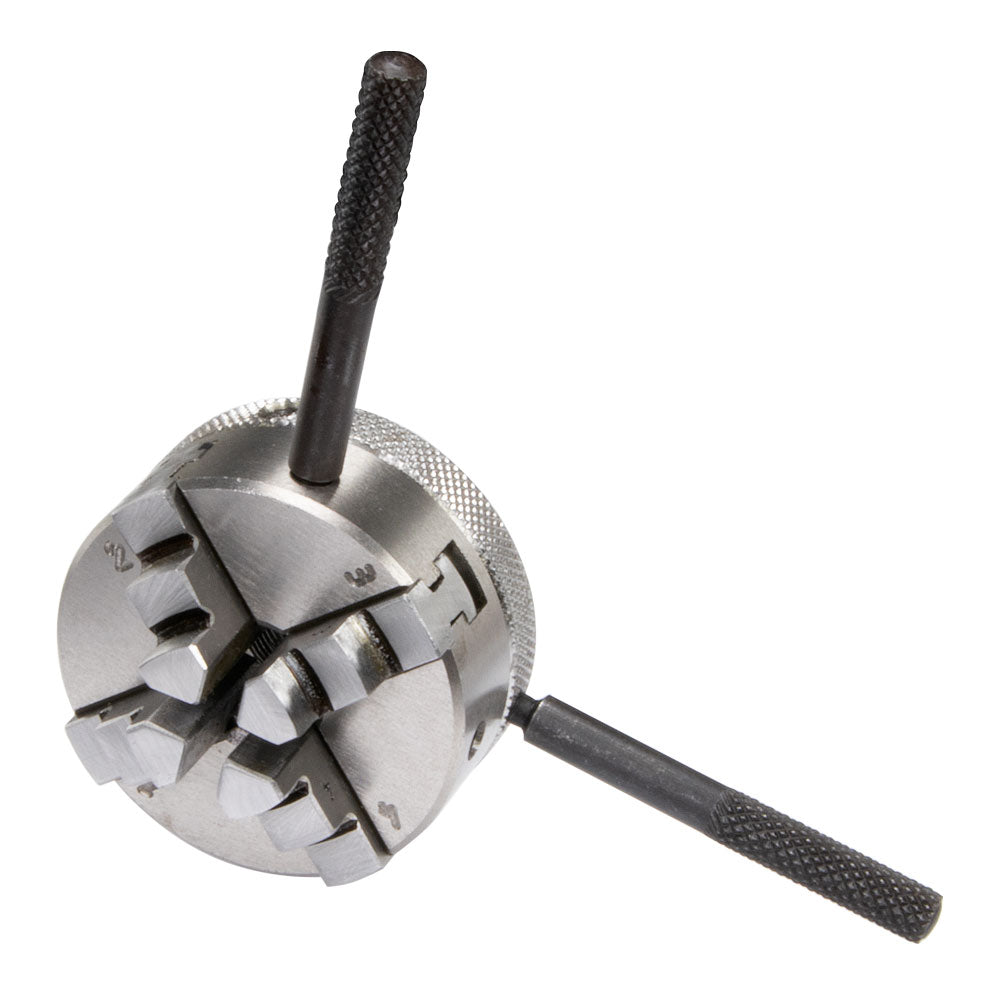

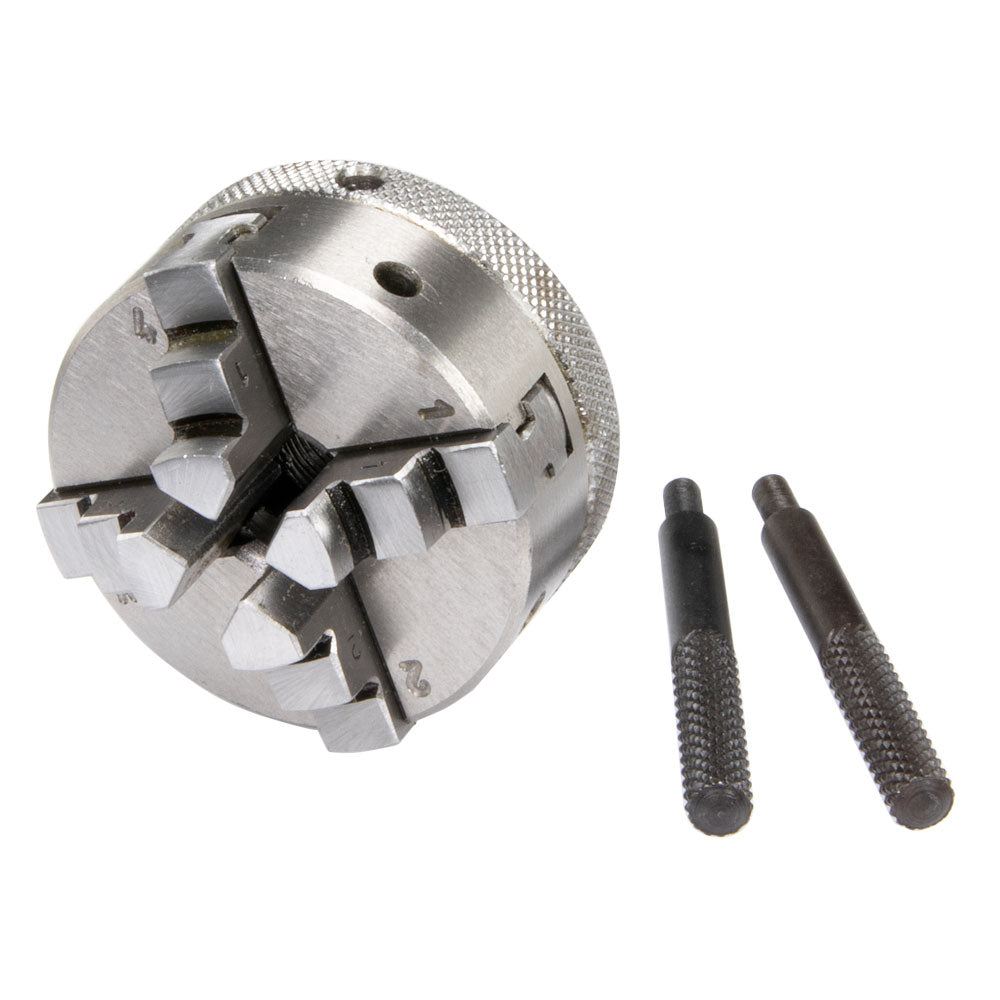

This 2 inch 4-Jaw self centering lathe chuck fits SIEG C0, Unimat 3 and Unimat 4 lathes. It includes tommy bars, inside and outside jaws, and mounting bolts.

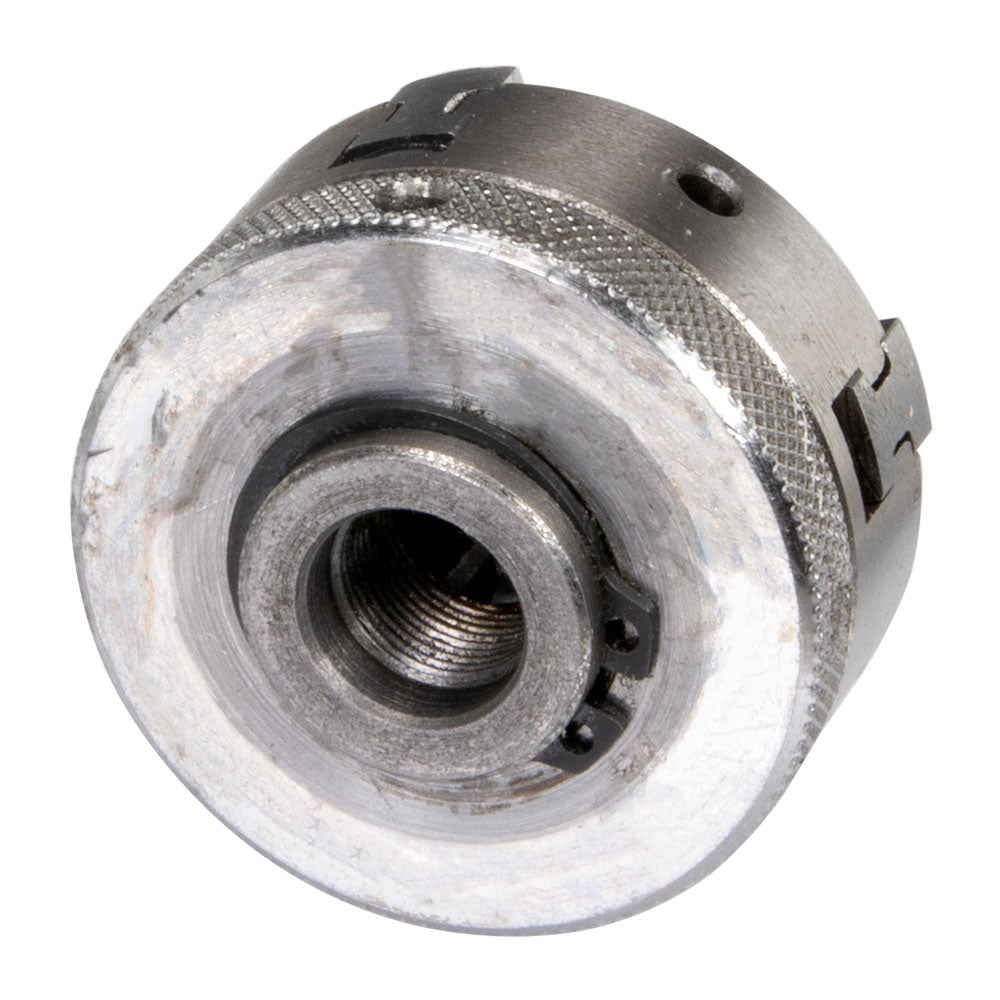

This chuck has a M14x1 threaded through hole (approximately 13mm clearance). It holds work up to 1.89" (48 mm) in diameter.

This chuck requires a 15 mm OD x 14 mm ID bushing to mount on a Unimat 3 or 4.

Chris's Tips

Mount this chuck on a mini lathe with one of our chuck adapters. Or purchase a chuck with an adapter already mounted.

Here is a chart that provides Lathe chuck capacities and mounting dimensions.

Specifications

Rated Capacity, Inside Jaws: 0.079" - 0.787" (2 mm - 20 mm)

Rated Capacity, Inside Jaws Jamming Range: 0.866" - 1.969" (22 mm - 50 mm)

Rated Capacity, Outside Jaws: 0.787" - 1.890" (20 mm - 48 mm)

Diameter, Overall: 1.969" (50 mm)

Registration Recess Diameter: 0.906" (23 mm)

Center Hole Diameter: 0.512" (13 mm)

Height: 0.906" (23 mm)

Jaw Height Above Face: 0.472" (12 mm)

Height with Jaws: 1.378" (35 mm)
