Lathe Chuck - 3", 3-Jaw
Lathe Chuck - 3", 3-Jaw
SKU:1187
In stock
Couldn't load pickup availability
Notify Me
Notify me when items are back in stock.
Key Features
Key Features
- Self-centering 3-Jaw lathe chuck
- 3" (80 mm) diameter
- Includes chuck key, inside and outside jaws

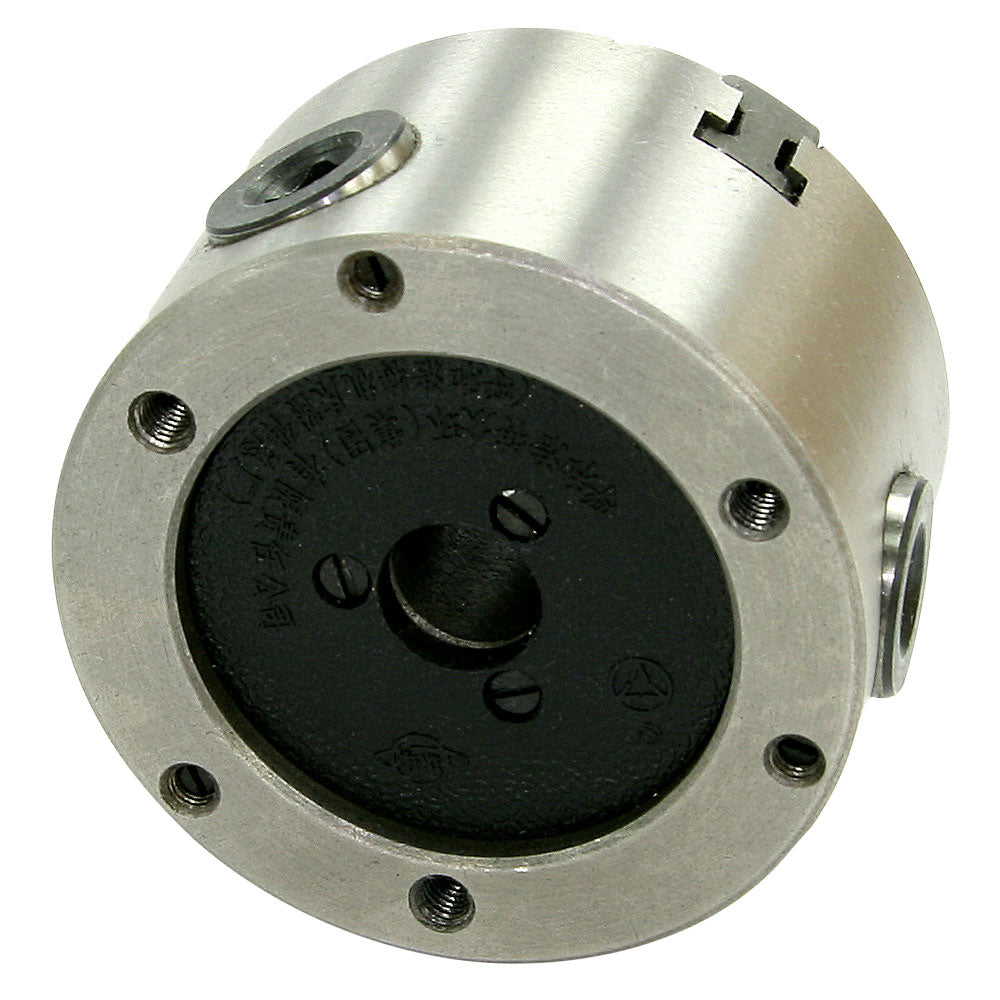

- Plain back mounting
- High quality steel, hardened and ground
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

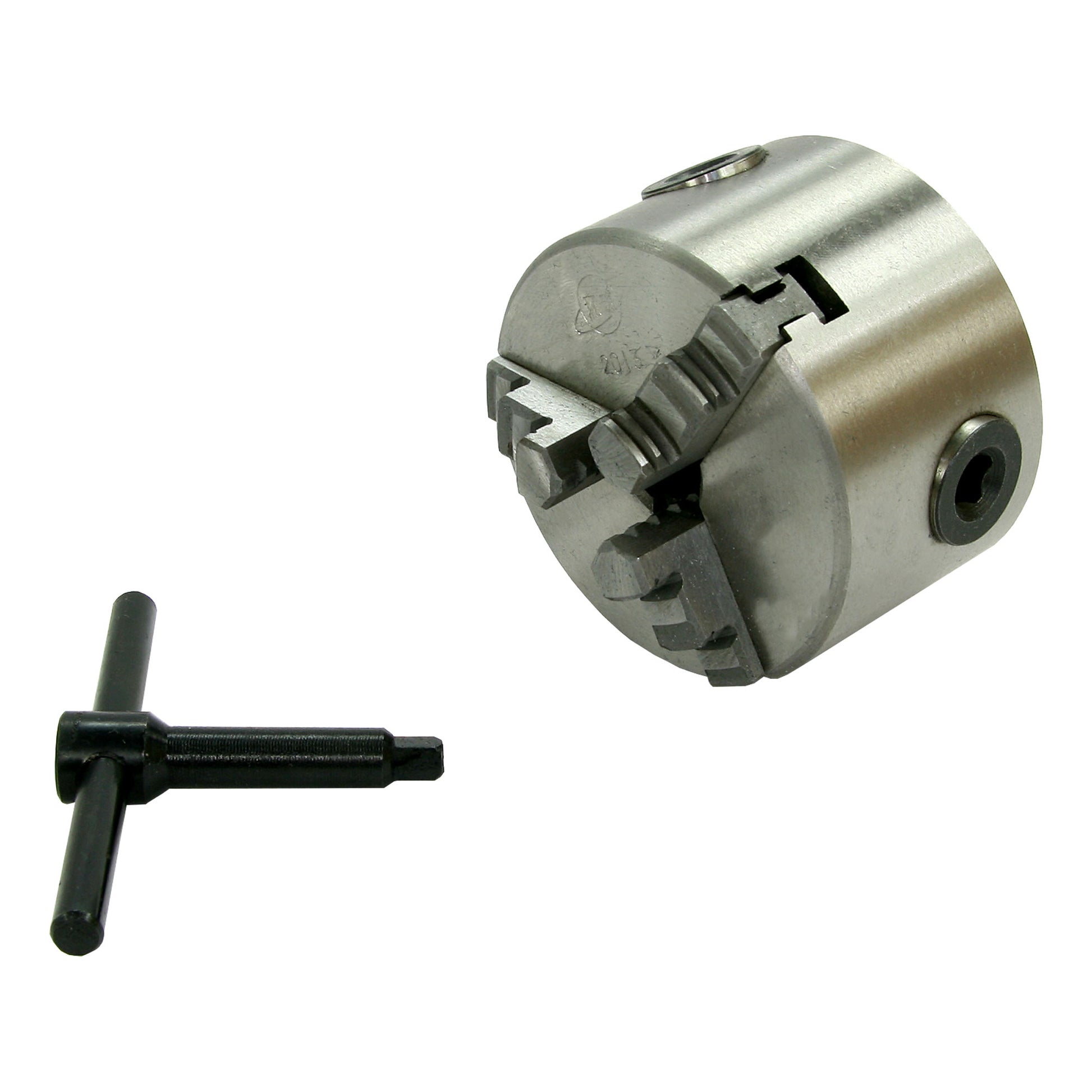

This 3 inch 3-Jaw self-centering lathe chuck is the one that comes on the mini lathe. It includes a chuck key and inside and outside jaws.
This three jaw chuck has a 0.63" (16 mm) through hole. It holds work up to 2.48" (63 mm) in diameter.
The radial runout of a test bar held in this chuck, when the chuck is mounted true, is 0.003" maximum.
Specifications
Rated Capacity, Inside Jaws: 0.079" - 0.866" (2 mm - 22 mm)
Rated Capacity, Jamming Range: 0.984" - 2.756" (25 mm - 70 mm)
Rated Capacity, Outside Jaws: 0.866" - 2.480" (22 mm - 63 mm)
Practical Maximum Capacity, Inside Jaws: 1.15" (29.210 mm)
Practical Maximum Capacity, Outside Jaws: 2.75" (69.850 mm)
Runout (Max): ≤ 0.003" (0.076mm)
Diameter, Overall: 3.150" (80 mm)
Registration Recess Diameter: 2.165" (55 mm)
Registration Recess Depth: 0.138" (3.5 mm)
Bolt Circle Diameter: 2.598" (66 mm)
Center Hole Diameter: 0.630" (16 mm)
Height: 1.969" (50 mm)
Jaw Height Above Face: 0.669" (17 mm)
Height with Jaws: 2.638" (67 mm)
Number and Size of Bolts: 3 M6
Chuck Key: 0.315" (8 mm)
Chuck Designation: K11-80
