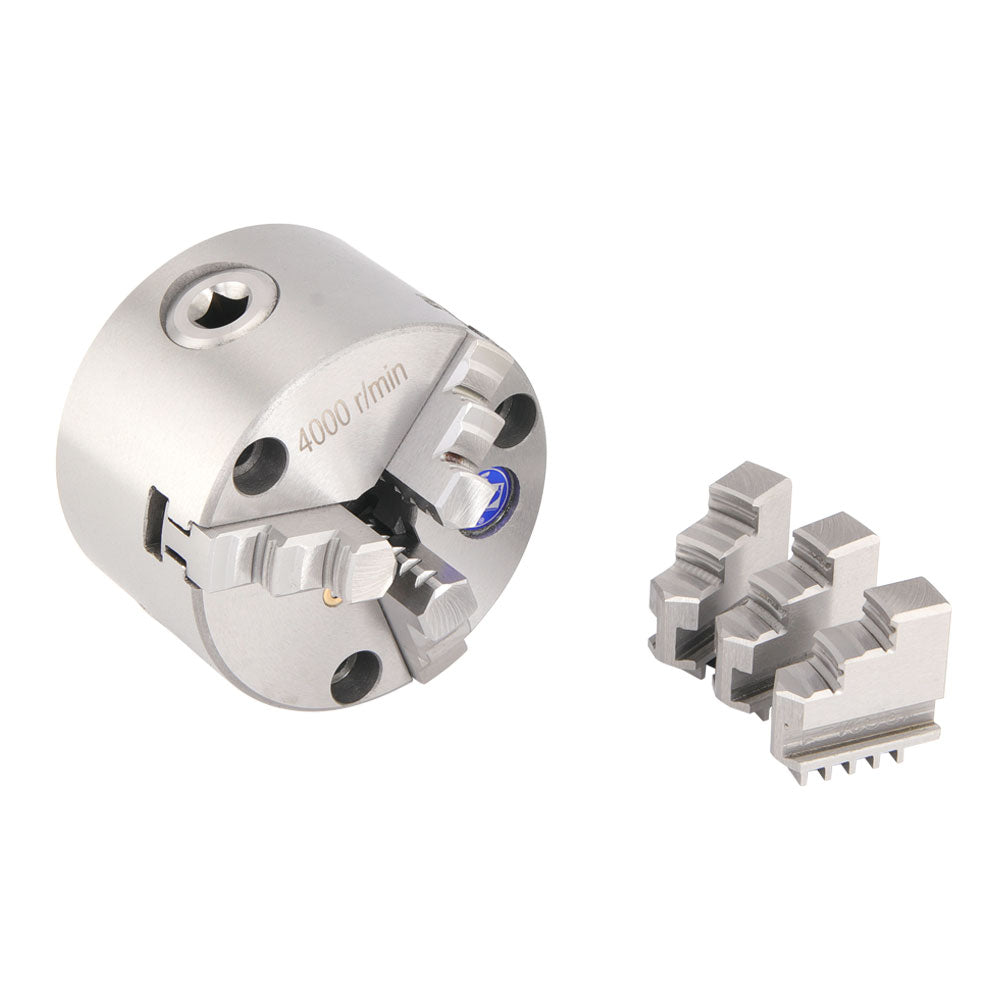

Lathe Chuck - 3", 3-Jaw, Front Mount

Lathe Chuck - 3", 3-Jaw, Front Mount

Made in Taiwan Made in Taiwan

5933

$179.95 USD
$179.95 USD
Sale Sold out
Shipping calculated at checkout.

Low stock

Key Features

  • 3-jaw Front Mount Lathe Chuck
  • 3" (80 mm) diameter
  • Includes chuck key, inside and outside jaws
  • Plain back mounting with bolts thru from the front
  • High quality steel, hardened and ground

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

This 3 inch 3-Jaw front mount lathe chuck includes a chuck key, inside and outside jaws, and three M6 mounting bolts.

The chuck has an inside diameter gripping range (outside jaws) of 24-64 mm, and an outside diameter gripping range (inside jaws) of 2-70 mm.

Front mount chucks are designed to be used with rotary tables and other devices where back mounting chucks cannot be used. Easily mount on table, dividing head, fixture, or indexer. This is a plain back chuck and requires a backplate adapter to mount it on a lathe.

Specifications

Rated Capacity, Inside Jaws: 0.079" - 0.866" (2 mm - 22 mm)

Rated Capacity, Jamming Range: 0.984" - 2.756" (25 mm - 70 mm)

Rated Capacity, Outside Jaws: 0.945" - 2.520" (24 mm - 64 mm)

Diameter, Overall: 3.150" (80 mm)

Registration Recess Diameter: 2.165" (55 mm)

Registration Recess Depth: 0.138" (3.5 mm)

Bolt Circle Diameter: 2.598" (66 mm)

Center Hole Diameter: 0.630" (16 mm)

Height: 1.969" (50 mm)

Jaw Height Above Face: 0.591" (15 mm)

Height with Jaws: 2.598" (66 mm)

Number and Size of Bolts: 3 M6x55

Chuck Key: 0.315" (8 mm)

Chuck Designation: K11-80
