Lathe Chuck - 3", 4-Jaw, Independent

Lathe Chuck - 3", 4-Jaw, Independent

1175

$109.95 USD
$109.95 USD
Sale Sold out
Shipping calculated at checkout.

In stock

Key Features

  • 4-jaw lathe chuck
  • 3" (80 mm) diameter
  • Each jaw is independently adjustable and reversible
  • Plain back mounting
  • High quality steel, hardened and ground

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

View full details

Product Information

Description

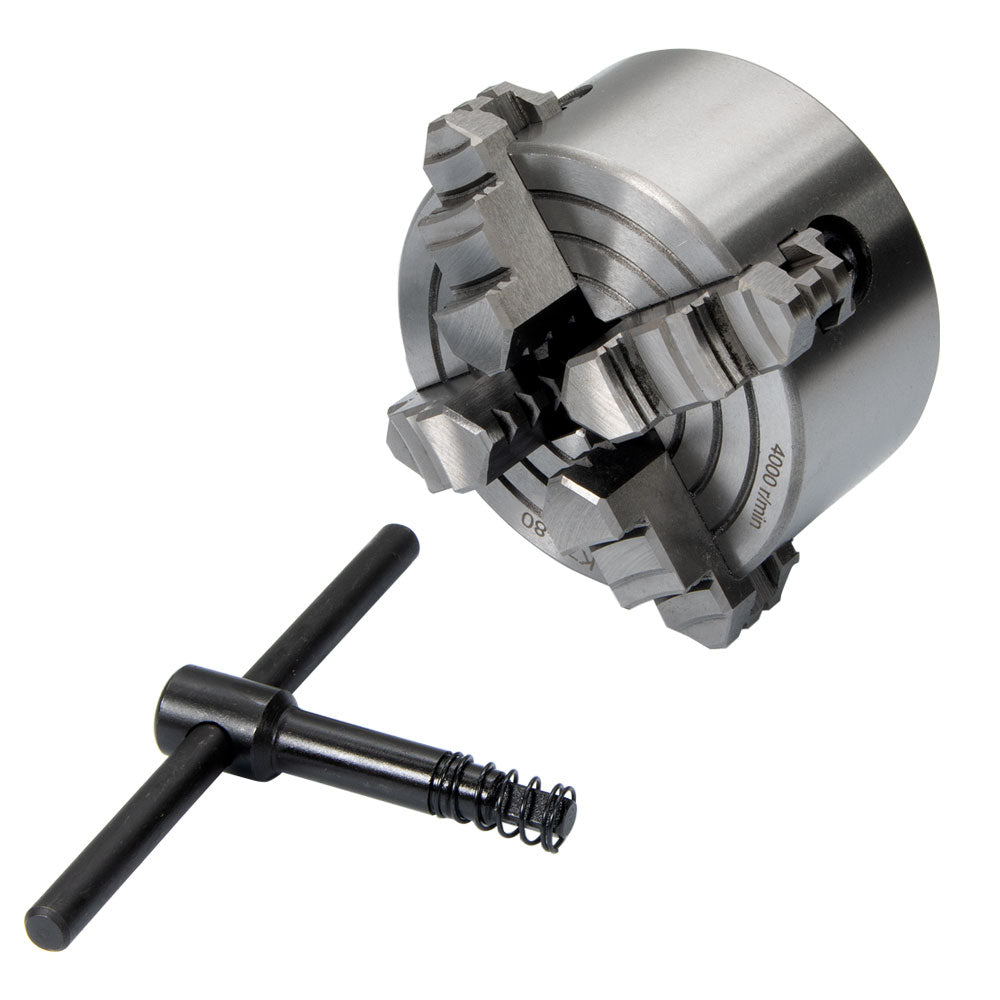

This 4-jaw 3" lathe chuck comes with a chuck key and reversible jaws.

This chuck has a 0.87" (22 mm) through hole. It holds work up to 3.15" (80 mm) in diameter.

Specifications

Rated Capacity, Inside Jaws: 0.197" - 1.378" (5 mm - 35 mm)

Rated Capacity, Outside Jaws: 1.378" - 3.150" (35 mm - 80 mm)

Practical Maximum Capacity, Inside Jaws: 2" (50.800 mm)

Practical Maximum Capacity, Outside Jaws: 4" (101.600 mm)

Diameter, Overall: 3.150" (80 mm)

Registration Recess Diameter: 2.165" (55 mm)

Registration Recess Depth: 0.118" (3 mm)

Bolt Circle Diameter: 2.598" (66 mm)

Center Hole Diameter: 0.866" (22 mm)

Height: 1.693" (43 mm)

Jaw Height Above Face: 0.669" (17 mm)

Height with Jaws: 2.362" (60 mm)

Number and Size of Bolts: 4 M6

Chuck Key: 0.236" (6 mm)

Max RPM: 4800 RPM

Chuck Designation: K72-80
