Lathe Chuck - 4", 3-Jaw
Lathe Chuck - 4", 3-Jaw
SKU:1698
In stock
Couldn't load pickup availability
Notify Me
Notify me when items are back in stock.
Key Features
Key Features
- 3-jaw self centering lathe chuck
- 4" (100 mm) diameter
- Includes chuck key, inside and outside jaws
- Plain back mounting
- High quality steel, hardened and ground
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

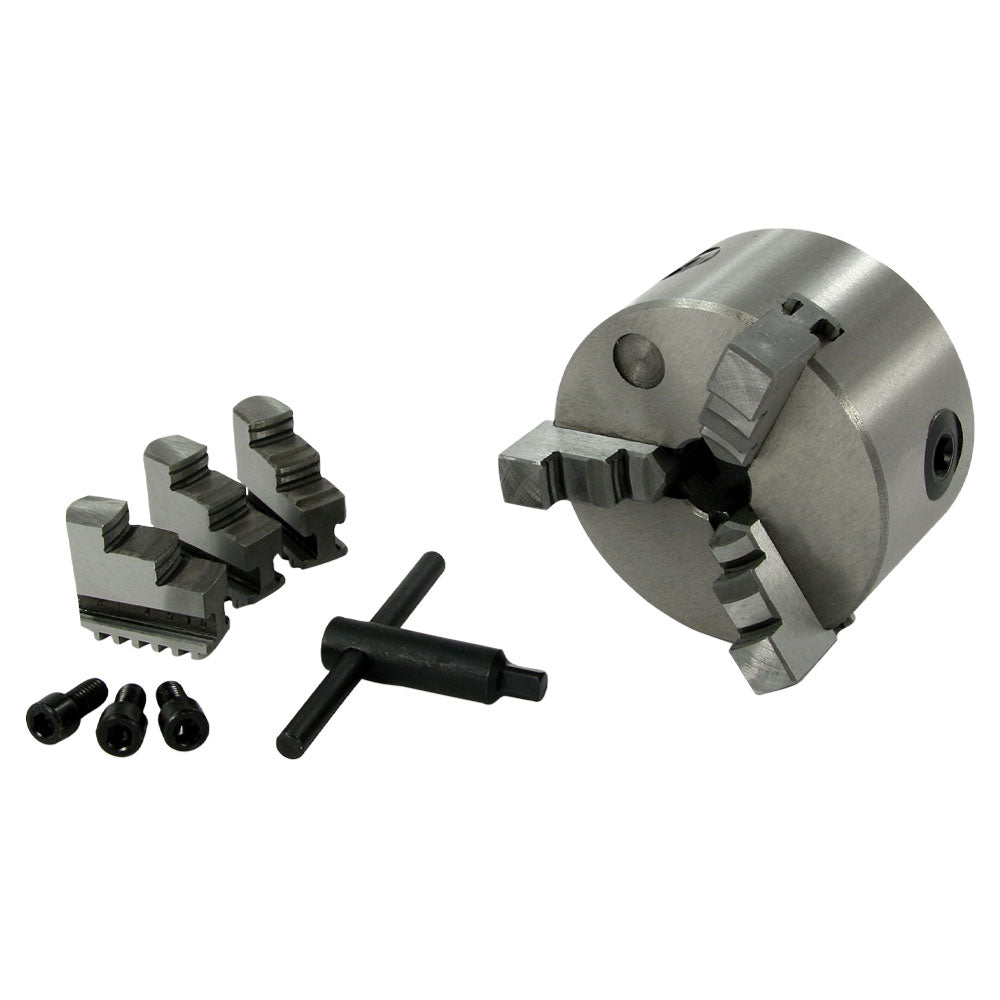

This 4 inch 3-Jaw self-centering lathe chuck includes a chuck key, inside and outside jaws, and mounting bolts.
This chuck has a 0.87" (22 mm) through hole. The chuck can hold work up to 3.15" (80 mm) in diameter.
The radial runout of a test bar held in this chuck, when the chuck is mounted true, is 0.003" maximum.
Chris's Tips
Mount this chuck on a mini lathe with one of our chuck adapters. Or purchase a chuck with an adapter already mounted.
Here is a chart that provides Lathe chuck capacities and mounting dimensions.
Specifications
Rated Capacity, Inside Jaws: 0.079" - 1.181" (2 mm - 30 mm)
Rated Capacity, Jamming Range: 1.181" - 3.543" (30 mm - 90 mm)
Rated Capacity, Outside Jaws: 1.181" - 3.150" (30 mm - 80 mm)
Practical Maximum Capacity, Inside Jaws: 1.6" (40.640 mm)
Practical Maximum Capacity, Outside Jaws: 3.75" (95.250 mm)
Runout (Max): ≤ 0.003" (0.076mm)
Diameter, Overall: 3.937" (100 mm)
Registration Recess Diameter: 2.835" (72 mm)
Registration Recess Depth: 0.138" (3.5 mm)
Bolt Circle Diameter: 3.307" (84 mm)
Center Hole Diameter: 0.866" (22 mm)
Height: 2.165" (55 mm)
Jaw Height Above Face: 0.787" (20 mm)
Height with Jaws: 2.953" (75 mm)
Number and Size of Bolts: 3 M8
Chuck Key: 0.315" (8 mm)
Chuck Designation: K11-100
