Lathe Chuck - 4", 4-Jaw, Independent with Adapter to 3" Spindle
Lathe Chuck - 4", 4-Jaw, Independent with Adapter to 3" Spindle
SKU:1697
In stock
Couldn't load pickup availability
Key Features
Key Features
- 4-jaw lathe chuck
- 4" (100 mm) diameter
- Each jaw is independently adjustable and reversible
- Includes an adapter to mount on a 3" (80 mm) spindle flange
- High quality steel, hardened and ground
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

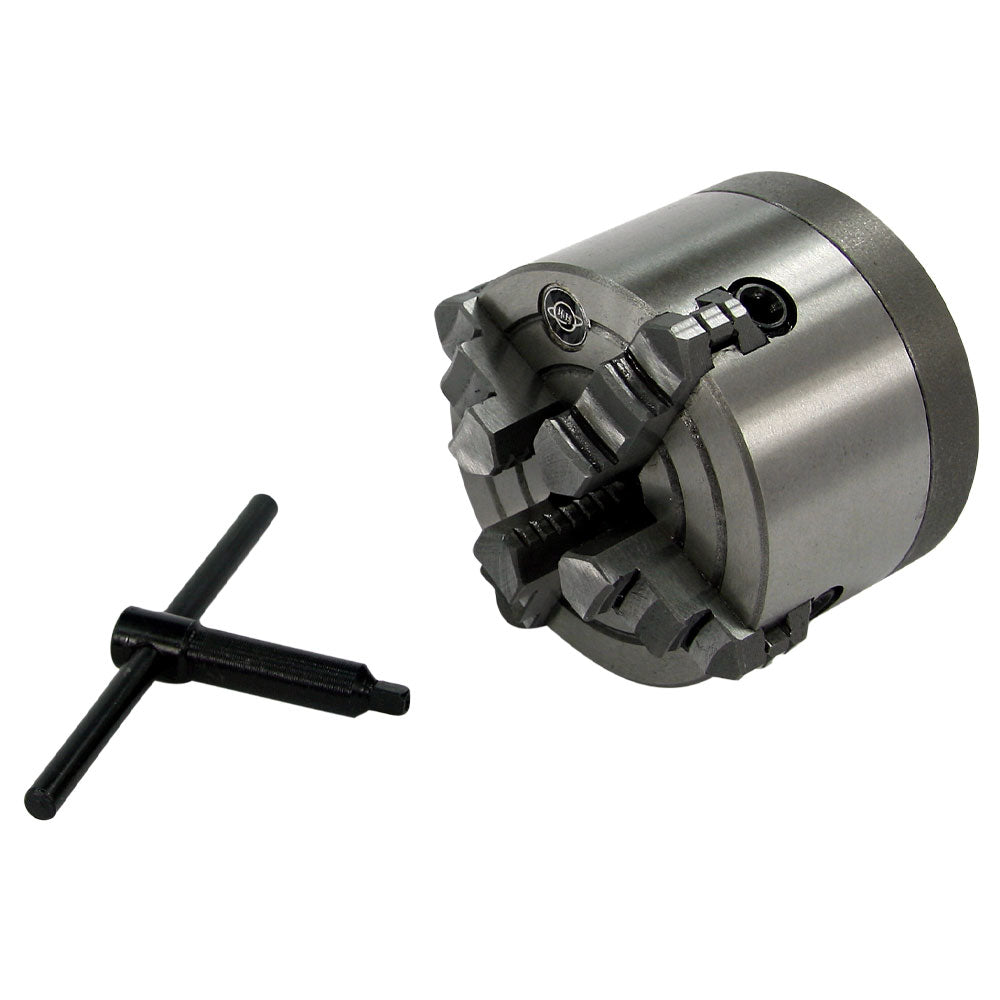

This 4" 4-Jaw independent chuck includes an adapter to fit the mini lathe spindle. It includes a chuck key and reversible jaws.
The adapter mounts to the spindle with three studs so additional holes in the spindle are not required.
This chuck has a 0.98" (25 mm) through hole. The chuck can hold work up to 3.94" (100 mm) in diameter.
Chris's Tips
Here is a chart that provides lathe chuck capacities and mounting dimensions.
Specifications
Rated Capacity, Inside Jaws: 0.236" - 1.772" (6 mm - 45 mm)
Rated Capacity, Outside Jaws: 1.575" - 3.937" (40 mm - 100 mm)
Practical Maximum Capacity, Inside Jaws: 2.75" (69.850 mm)
Practical Maximum Capacity, Outside Jaws: 5" (127.000 mm)
Diameter, Overall: 3.937" (100 mm)
Registration Recess Diameter: 2.835" (72 mm)
Registration Recess Depth: 0.138" (3.5 mm)
Bolt Circle Diameter: 3.307" (84 mm)
Center Hole Diameter: 0.984" (25 mm)
Height: 2.126" (54 mm)
Jaw Height Above Face: 0.827" (21 mm)
Height with Jaws: 2.559" (65 mm)
Number and Size of Bolts: 4 M8
Chuck Key: 0.236" (6 mm)
Chuck Designation: K72-100
