Lathe Chuck - 5", 3-Jaw
Lathe Chuck - 5", 3-Jaw
SKU:2337
Out of stock
Couldn't load pickup availability
Notify Me
Notify me when items are back in stock.
Key Features
Key Features
- 3-Jaw Lathe Chuck
- 5" (125 mm) diameter
- Includes chuck key, inside and outside jaws

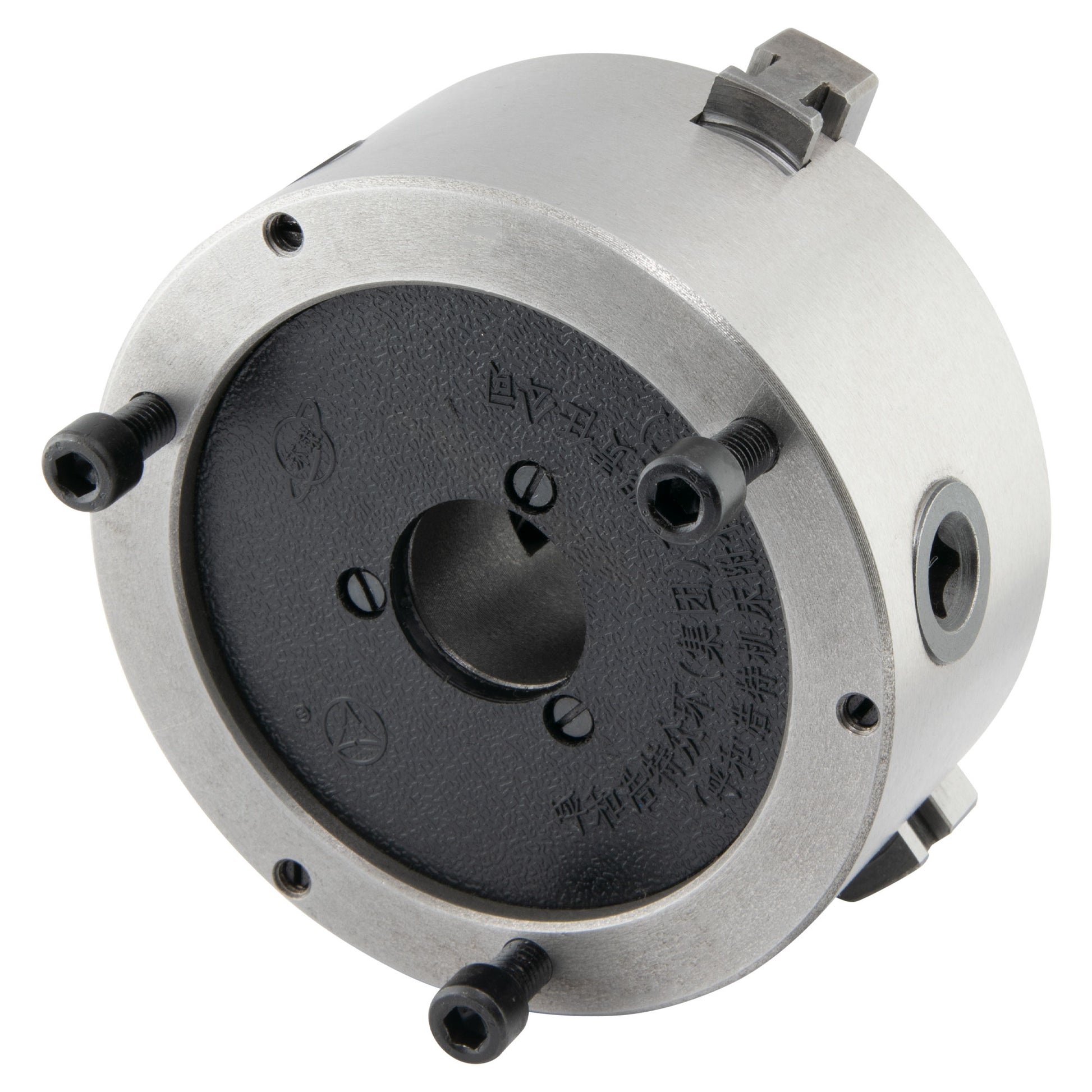

- Plain back mounting
- High quality steel, hardened and ground
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

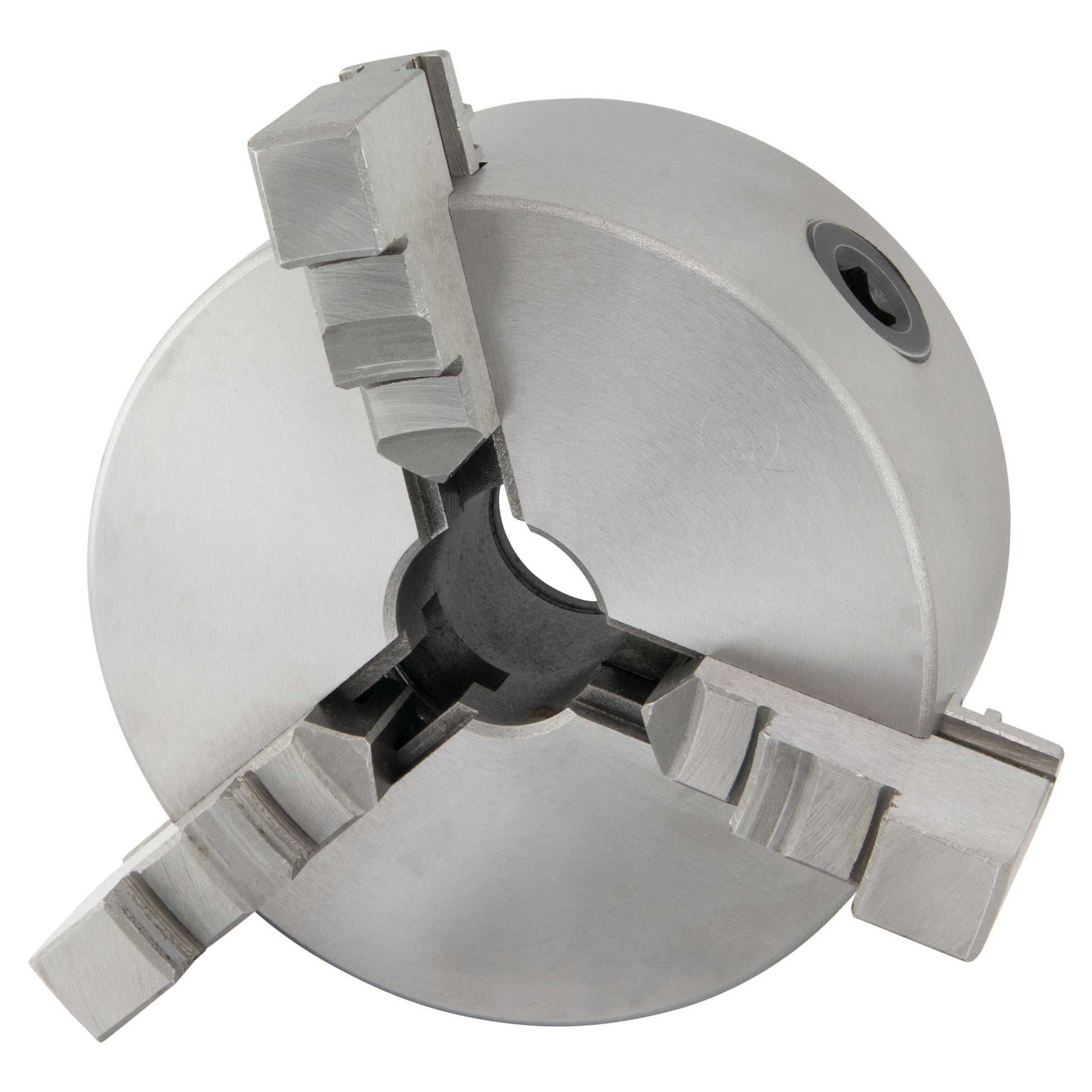

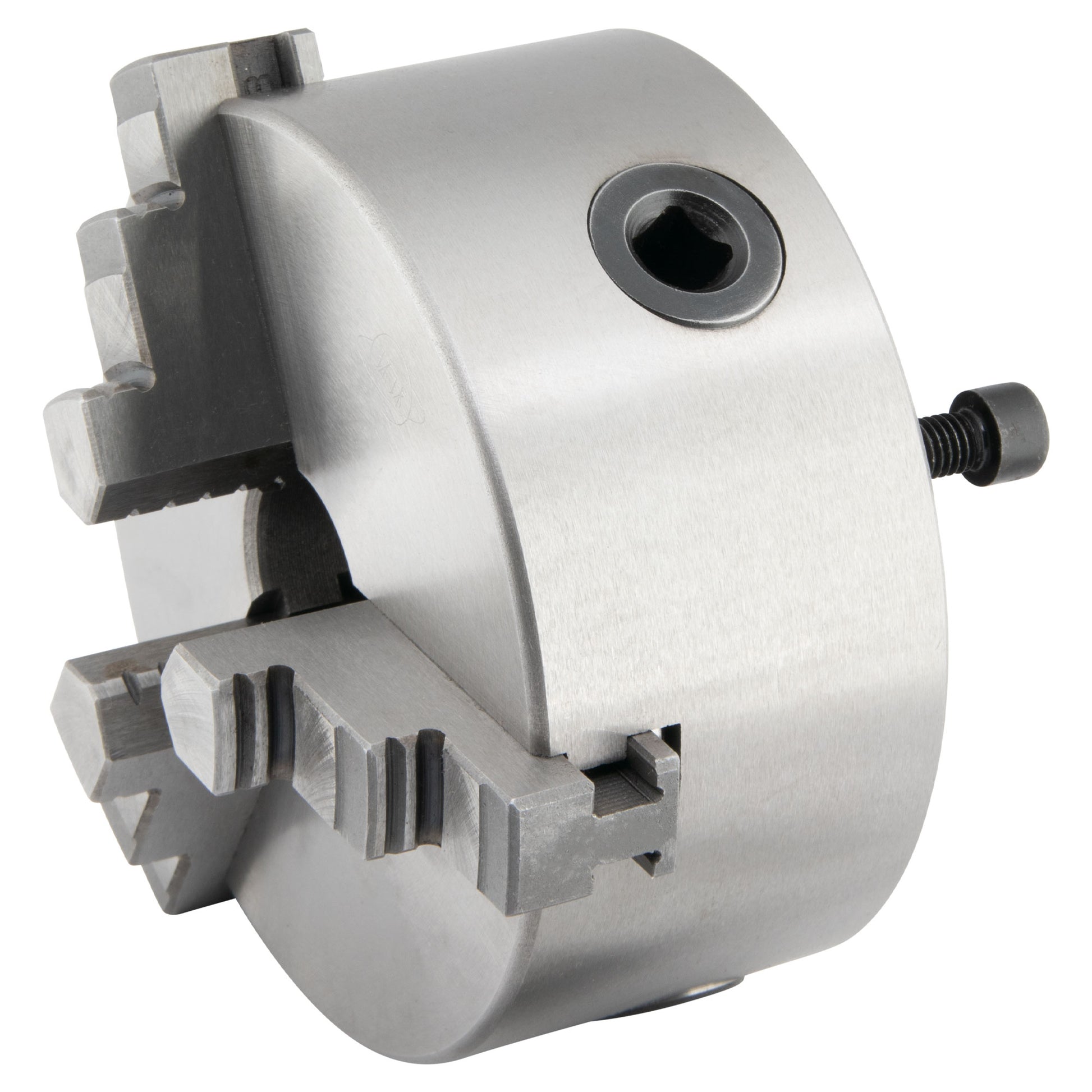

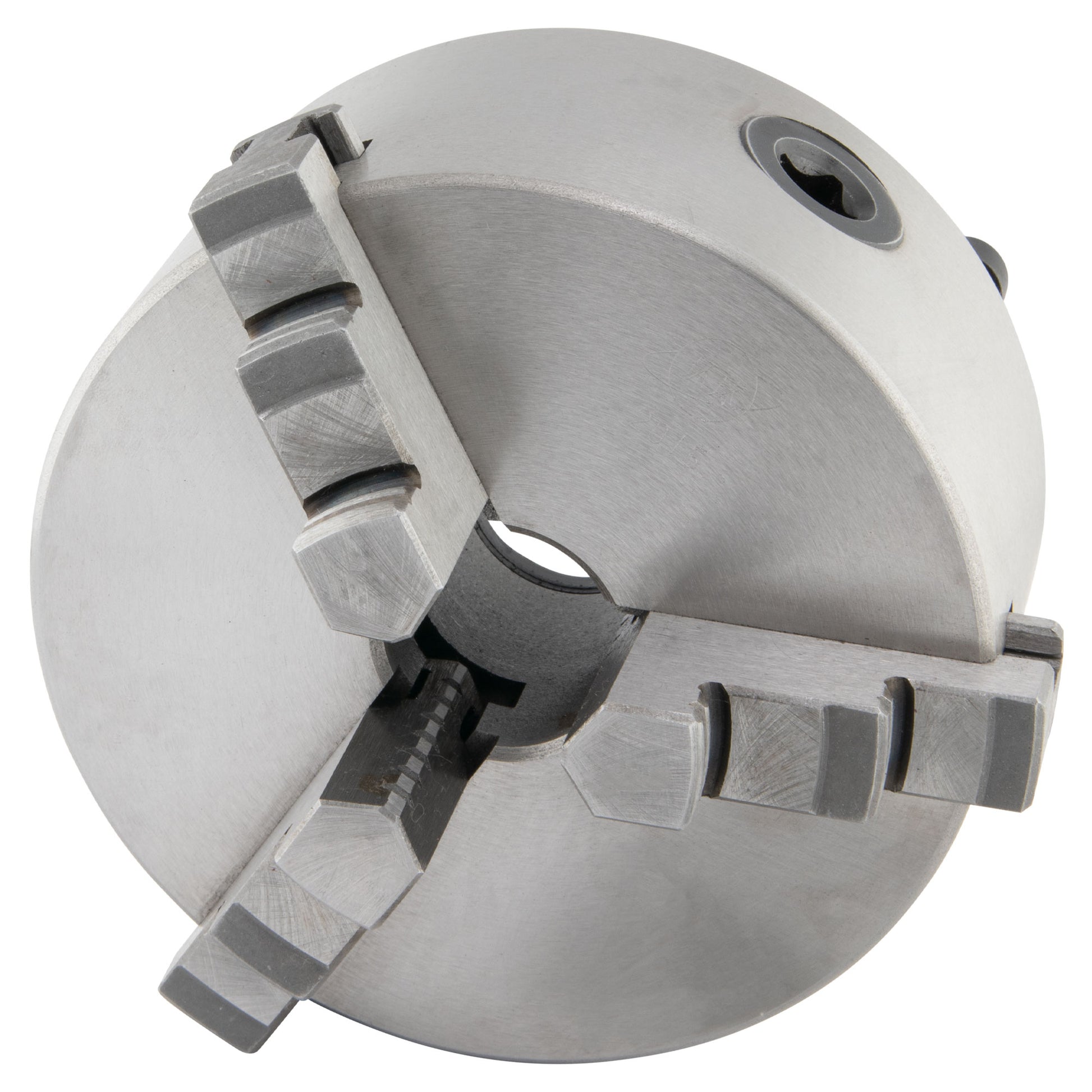

5 inch, 3-Jaw self-centering lathe chuck.

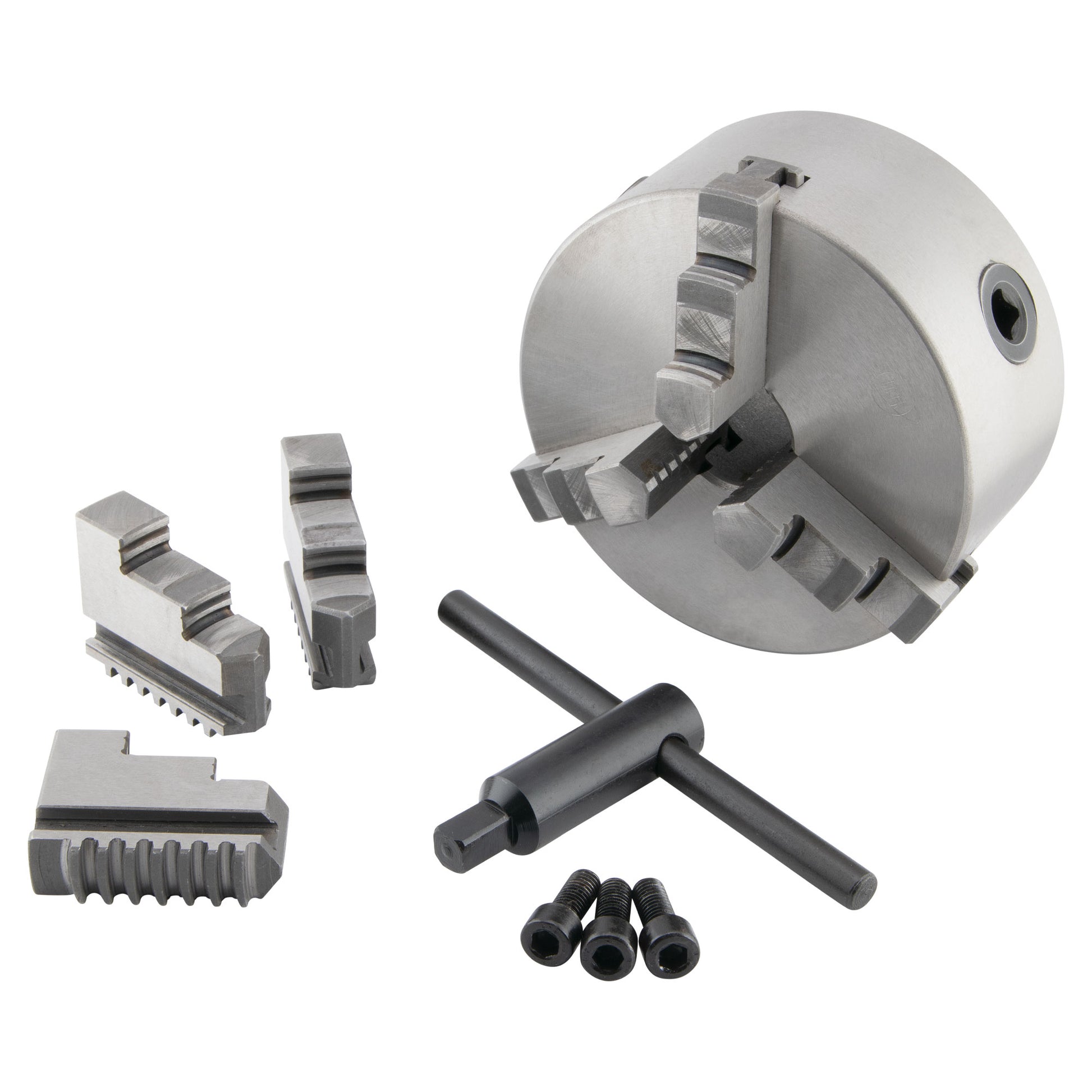

Includes chuck key, inside and outside jaws, and mounting bolts.
The chuck can hold work up to 110 mm (4.33") in diameter.
The radial runout of a test bar held in this chuck, when the chuck is mounted true, is 0.003" maximum.
Chris's Tips
Mount this chuck on a mini lathe with one of our chuck adapters. Or purchase a chuck with an adapter already mounted.
Here is a chart that provides Lathe chuck capacities and mounting dimensions.
Specifications
Rated Capacity, Inside Jaws: 0.098" - 1.575" (2.5 mm - 40 mm)
Rated Capacity, Jamming Range: 1.496" - 4.921" (38 mm - 125 mm)
Rated Capacity, Outside Jaws: 1.496" - 4.331" (38 mm - 110 mm)
Practical Maximum Capacity, Inside Jaws: 2" (50.800 mm)
Practical Maximum Capacity, Outside Jaws: 4" (101.600 mm)
Runout (Max): ≤ 0.003" (0.076mm)
Diameter, Overall: 4.921" (125 mm)
Registration Recess Diameter: 3.740" (95 mm)
Registration Recess Depth: 0.138" (3.5 mm)
Bolt Circle Diameter: 4.252" (108 mm)
Center Hole Diameter: 1.181" (30 mm)
Height: 2.283" (58 mm)
Jaw Height Above Face: 1.102" (28 mm)
Height with Jaws: 3.386" (86 mm)
Number and Size of Bolts: 3 M8
Chuck Key: 0.374" (9.5 mm)
Max RPM: 4900 RPM
Chuck Designation: K11-125
