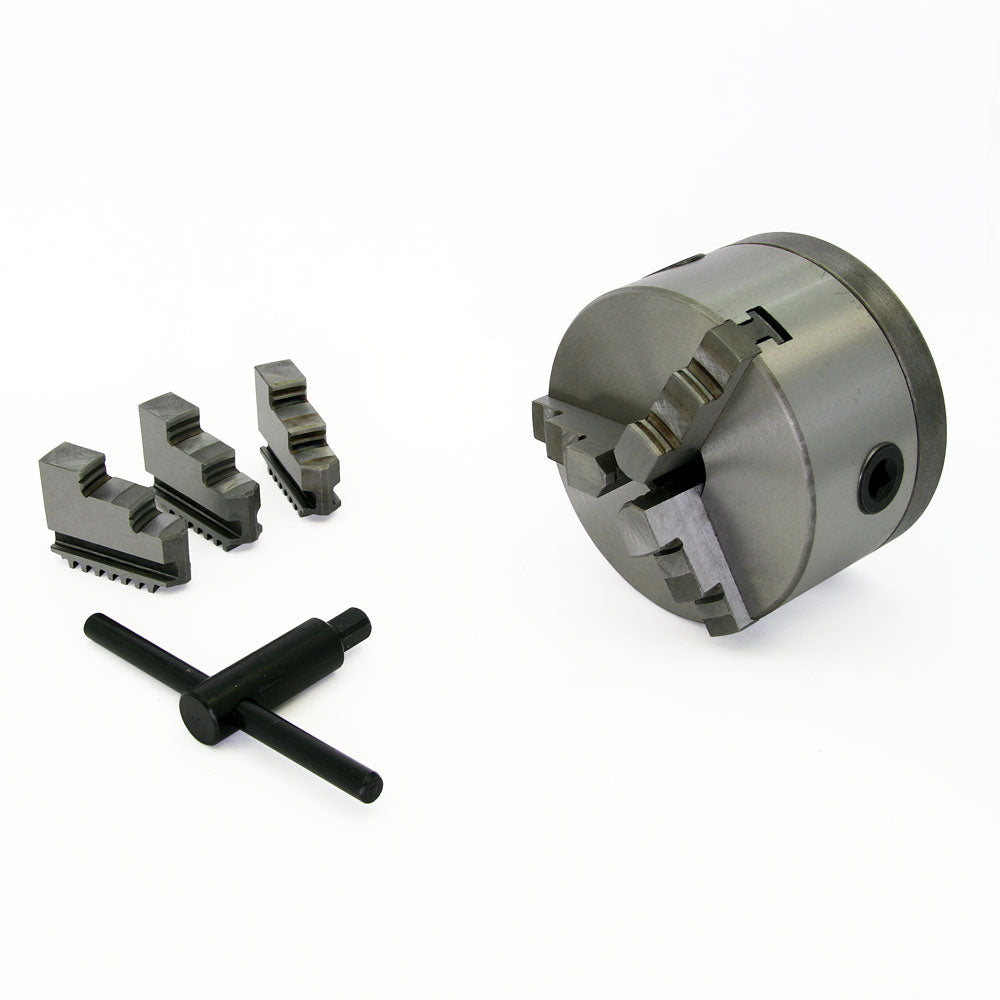

Lathe Chuck - 5", 3-Jaw, Premium, Harlingen, with Adapter to 3" Spindle
Lathe Chuck - 5", 3-Jaw, Premium, Harlingen, with Adapter to 3" Spindle
SKU:2345
Out of stock
Couldn't load pickup availability
Notify Me
Notify me when items are back in stock.
Key Features
Key Features
- 3-jaw self-centering lathe chuck
- 5" (125 mm) diameter
- Includes chuck key, inside and outside jaws

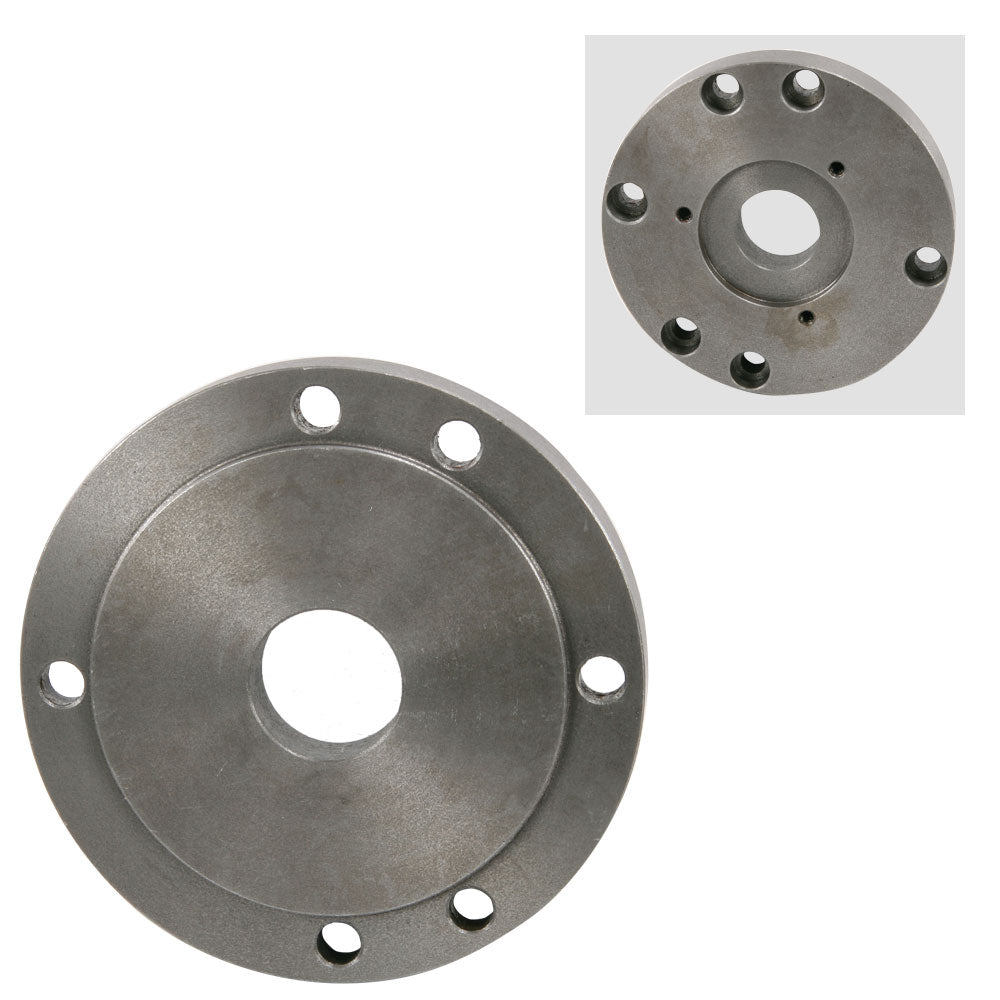

- Includes an adapter to mount on a 3" (80 mm) flange
- High-quality steel, hardened and ground
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description
5 inch, 3-Jaw self-centering lathe chuck with adapter mounted for the mini lathe. Includes chuck key, inside and outside jaws.
This 5 inch lathe chuck can hold work up to 4.33" (110 mm) in diameter and comes with an adapter for the mini lathe so that you can bolt it on in place of a 3" (80 mm) chuck.
The radial runout of a test bar held in this chuck, when the chuck is mounted true, is 0.003" maximum.
Specifications
Rated Capacity, Inside Jaws: 0.098" - 1.575" (2.5 mm - 40 mm)
Rated Capacity, Jamming Range: 1.496" - 4.921" (38 mm - 125 mm)
Rated Capacity, Outside Jaws: 1.496" - 4.331" (38 mm - 110 mm)
Practical Maximum Capacity, Inside Jaws: 2" (50.800 mm)
Practical Maximum Capacity, Outside Jaws: 4" (101.600 mm)
Runout (Max): ≤ 0.003" (0.076mm)
Diameter, Overall: 4.921" (125 mm)
Registration Recess Diameter: 3.740" (95 mm)
Registration Recess Depth: 0.138" (3.5 mm)
Bolt Circle Diameter: 4.252" (108 mm)
Center Hole Diameter: 1.181" (30 mm)
Height: 2.283" (58 mm)
Jaw Height Above Face: 1.102" (28 mm)
Height with Jaws: 3.386" (86 mm)
Number and Size of Bolts: 3 M8
Chuck Key: 0.374" (9.5 mm)
Chuck Designation: K11-125
