Lathe Chuck - 5", 4-Jaw, Independent, Premium, Harlingen
Lathe Chuck - 5", 4-Jaw, Independent, Premium, Harlingen
SKU:6086
In stock
Couldn't load pickup availability
Key Features
Key Features
- Independent 4-Jaw lathe chuck
- 5" (125 mm) diameter
- High quality components for enhanced wear-resistance
- Includes chuck key, inside and outside jaws
Share
WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
View full details
Product Information
Description

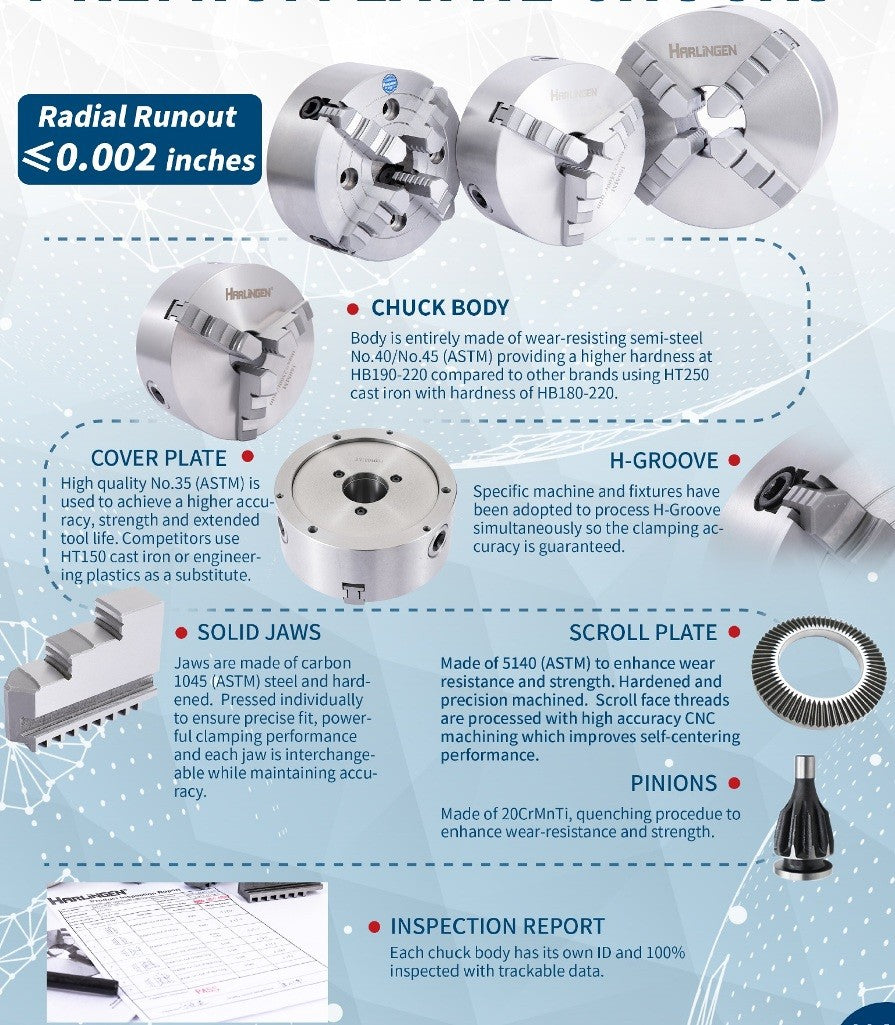

Harlingen 5 inch 4-jaw independent lathe chuck. The Harlingen chucks have similar specifications to our other lathe chucks in terms of clamping range however they have a better runout and the material construction of the chuck is better.
The chuck body is made of wear-resistant cast iron with a higher hardness than similarly made lathe chucks.
The cover plate, scroll plate and pinions are all constructed of higher quality steels for added strength and resistance to wear.
The jaws are made of 1045 hardened carbon steel and manufactured for precise fit and clamping performance.
Each chuck has in individual serial number and inspection report.
This is a plain back chuck and requires a backplate adapter to mount it. If purchasing for HiTorque Bench Lathe, please add 6806 Chuck Adapter
Chris's Tips
Mount this chuck on a mini lathe with one of our chuck adapters. Or purchase a chuck with an adapter already mounted.
Here is a chart that provides Lathe chuck capacities and mounting dimensions.
Specifications
Clamping Range, Inside Jaws: 0.276" - 2.244" (7.0 mm - 57 mm)
Clamping Range, Outside Jaws: 1.890" - 4.921" (48.0 mm - 125 mm)
Runout (Max): ≤ 0.002" (0.051mm)
Diameter, Overall: 4.921" (125 mm)
Registration Recess Diameter: 3.740" (95 mm)
Registration Recess Depth: 0.177" (4.5 mm)
Bolt Circle Diameter: 4.252" (108 mm)
Center Hole Diameter: 1.181" (30 mm)
Height: 2.559" (65 mm)
Jaw Height Above Face: 0.984" (25 mm)
Height with Jaws: 3.150" (80 mm)
Chuck Key: 0.374" (9.5 mm)
Chuck Designation: K72-125
